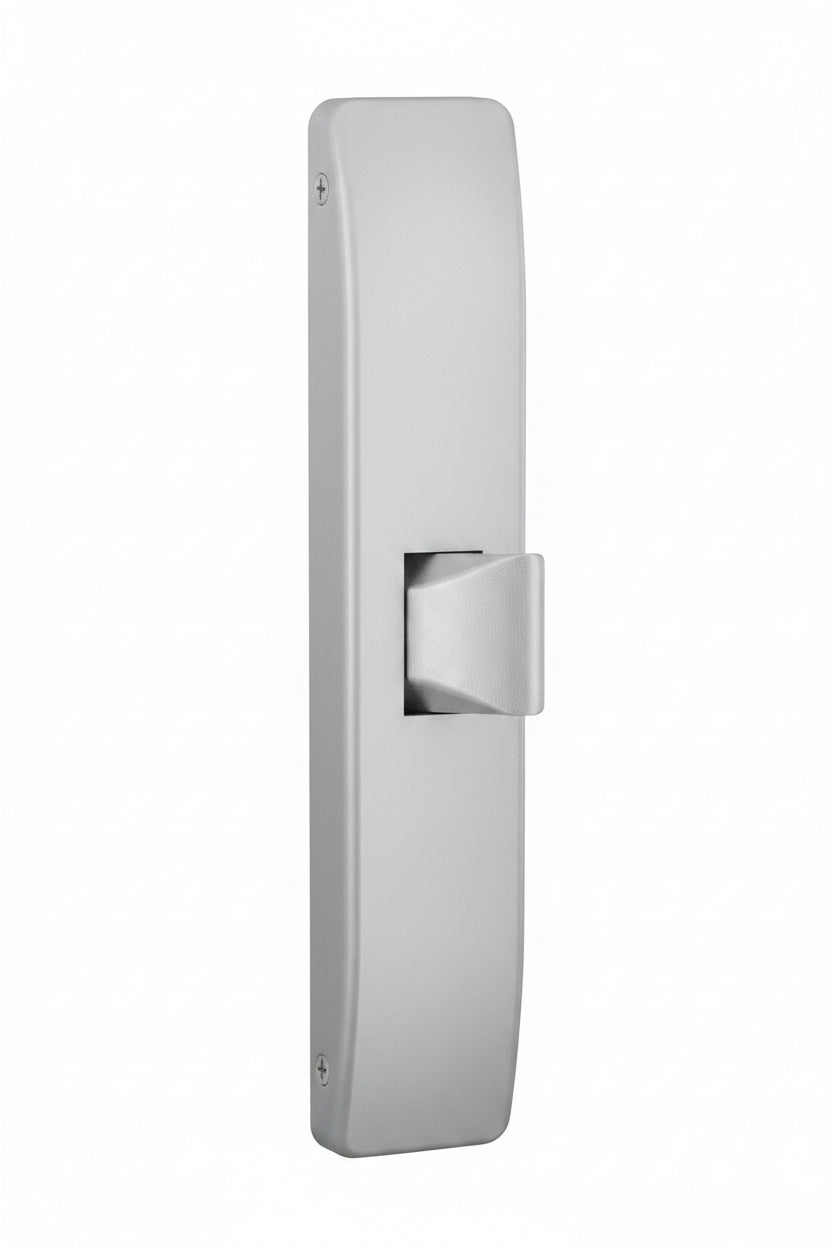

HES 9600-12/24-630-LBSM 9600 Series Surface Mounted Electric Strike with Latchbolt Monitor Strike, Windstorm Resistant, Satin Stainless Steel

The HES 9600-12/24-630-LBSM (model 9600-630-LBSM) is a surface mounted, windstorm resistant electric strike for doors fitted with rim exit devices. It includes a latchbolt strike monitor, so it suits installers and facility managers who need to confirm latch position on a metal frame door. The satin stainless steel body is tamper resistant, and the unit can be set in the field for fail safe or fail secure operation.

Key features

• Stainless steel construction with a tamper resistant design.
• Rated for 2,000 lbs. static strength and 120 ft-lbs. dynamic strength.
• Rated for 1,000,000 cycles of endurance.
• Fail safe or fail secure can be selected in the field.
• Runs on either 12 or 24 VDC.
• Separate base and cover, plus horizontal adjustment, make fine-tuning easier.

Specifications

Brand: HES

Model: 9600-630-LBSM

Product Model: 9600-630-LBM

Product Series: 9600

Product Type: Electric Strike

Application/Usage: Door

Compatible Door Lock Type: Rim Exit

Compatible Door Frame Type: Metal

Door Handling: Non-Handed

Features: Latchbolt Strike Monitor (LBSM)

Security Configuration: Fail Secure

Material: Stainless Steel

Color: Silver

Input Voltage: 12V DC

Input Current: 250mA

Power Source: AC Power

Holding Strength: 120lb

Height: 9.00″

Depth: 0.75″

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Packaged Quantity: 1

Installation notes

Confirm the strike is set for the intended fail safe or fail secure mode and matched to your supply voltage before powering it up. Use the horizontal adjustment to line the strike up with the latch, then test the door and the latchbolt monitor signal through several cycles before handing the door over.
