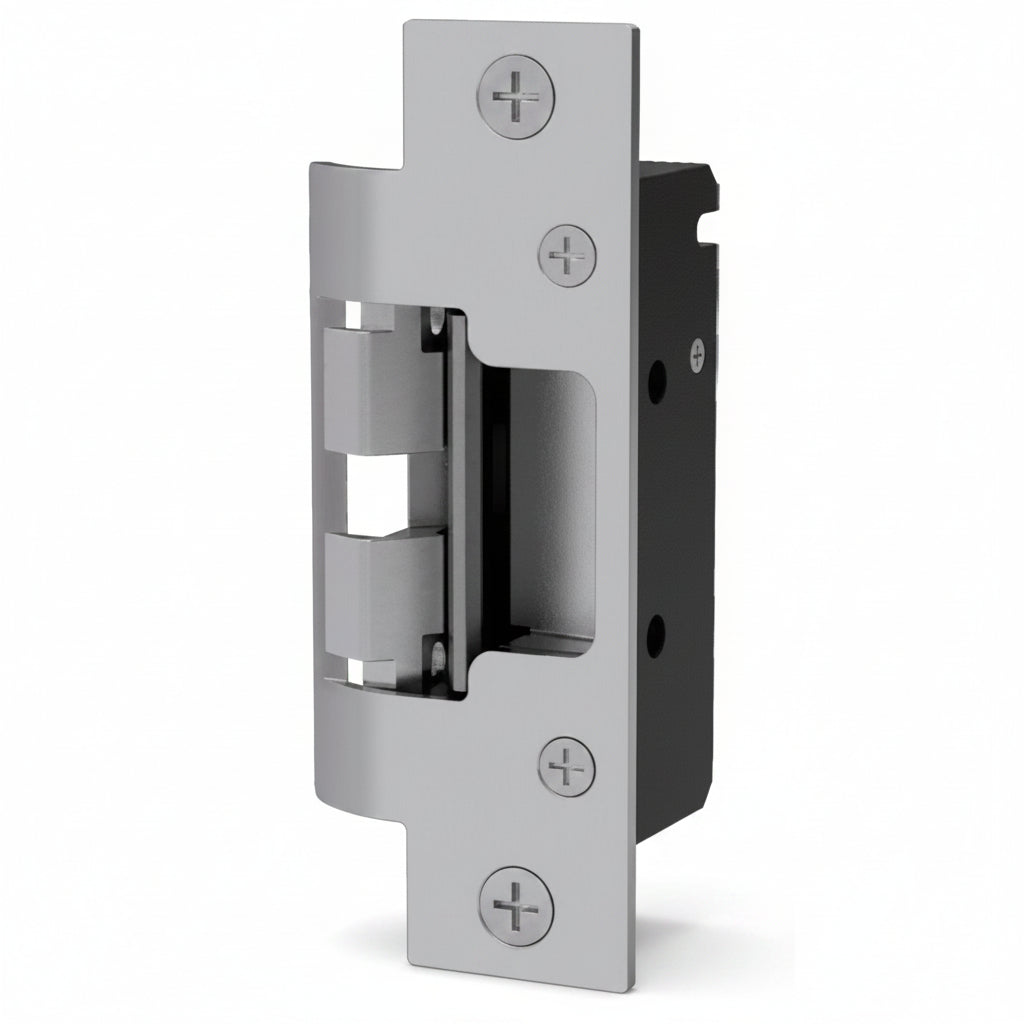

HES 8000C-12/24D-630 8000C Series Complete Pac Electric Strike Kit for Latchbolt Locks with 801 and 801A Faceplates, Satin Stainless Steel

The HES 8000C-12/24D-630 (model 10720403) is an 8000 Series Complete Pac electric strike kit for cylindrical latchbolt locks, finished in satin stainless steel and supplied with 801 and 801A faceplates. It suits installers retrofitting metal frames, since no cutting on the frame is required. Its concealed, tamper-resistant design, field-selectable fail safe/fail secure operation and non-handed construction make it easy to stock and specify.

Key features

• Installs without cutting the door frame.
• Vertical adjustment compensates for door sag and misalignment.
• Rated for 1,500 lbs static strength, 70 ft-lbs dynamic strength and 1 million cycles of endurance.
• Fail safe or fail secure operation can be selected in the field.
• The solenoid is mounted internally, and the strike is non-handed.
• Accepts a 1/2″ to 5/8″ cylindrical latchbolt, up to 5/8″ with a 1/8″ door gap.

Specifications

Brand: HES

Model: 10720403

Product series: 8000

Product type: Electric strike

Application: Door

Compatible lock type: Cylindrical

Compatible door frame type: Metal

Security configuration: Fail secure

Door handling: Non-handed

Input voltage: 12V DC

Input current: 120mA

Holding strength: 1500lb

Material: Stainless steel

Color: Silver

Width: 1.44″

Height: 4.87″

Depth: 1.07″

Country of origin: US

Installation notes

Remove the existing strike plate, then use the vertical adjustment to line the strike up with the latchbolt before fastening it. Confirm the fail safe/fail secure setting and the supply voltage match the application before commissioning, and test the door under power to check smooth latch release.
