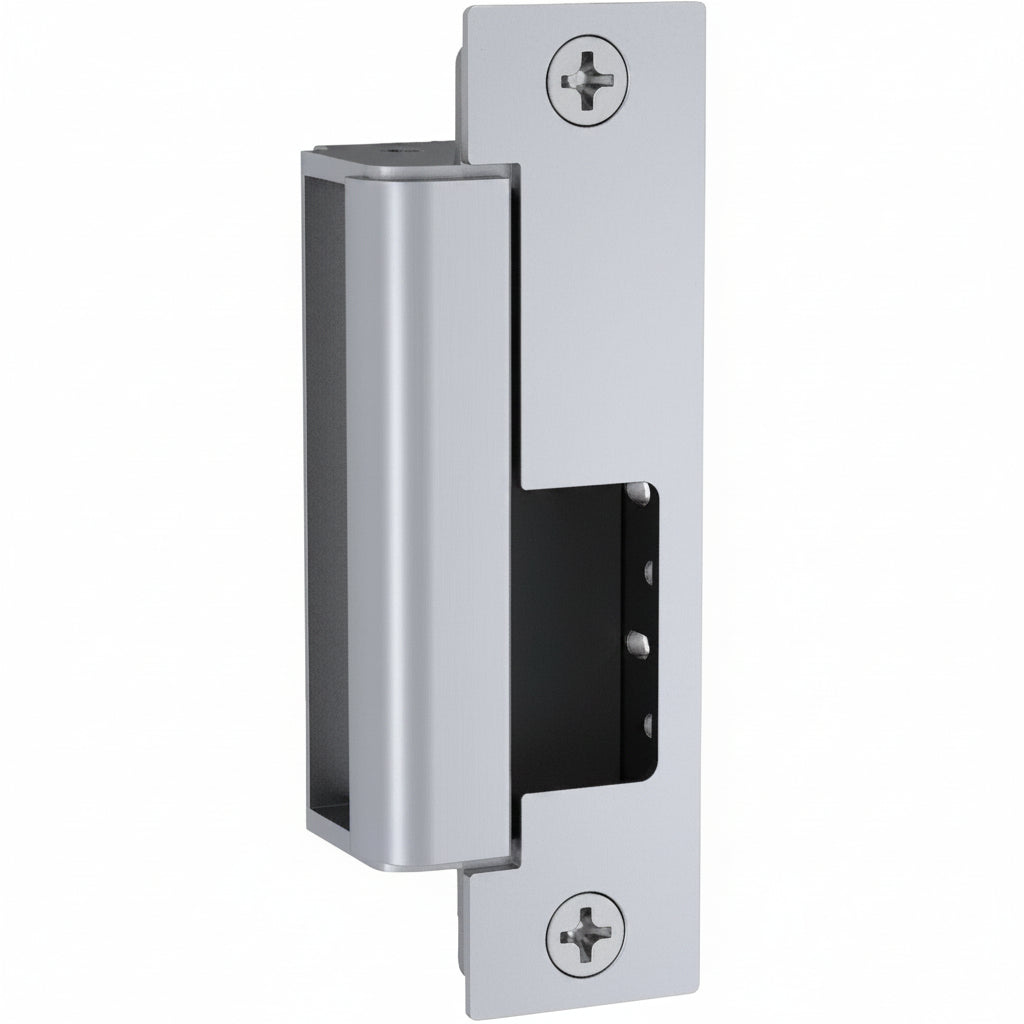

HES 1500C-630 1500 Series Electric Strike with 1LB Faceplate Kit for Latchbolt Locks, Satin Stainless Steel

The HES 1500C-630 is a 1500 Series electric strike with a satin stainless steel finish, made for controlling entry through doors fitted with latchbolt locks. It ships with the 1LB faceplate kit for latchbolts, and its non-handed design means one strike suits either door swing. It suits installers who want a tamper-resistant, stainless steel strike with field-selectable fail safe or fail secure operation.

Key features

• The kit includes a 1LB faceplate for latchbolts.
• Stainless steel construction with a tamper-resistant design.
• Rated for 1500lb static strength and 70'-lbs dynamic strength.
• Endurance is rated at 1,000,000 cycles.
• Fail safe or fail secure operation is selectable in the field.
• Accepts 12/24V DC/AC power, and the faceplates and accessories are interchangeable.

Specifications

Brand: HES

Model: 1500C-630

Product type: Electric Strike

Product series: 1500

Vendor name: 1436~HES by ASSA ABLOY

Material: Stainless Steel

Color: Silver

Application/usage: Door

Compatible door frame type: Metal

Compatible door lock type: Rim Exit

Compatibility: HES 1500 Series Electric Strike

Door handling: Non-Handed

Security configuration: Fail Secure

Power source: AC Power

Input voltage: 12V DC

Input current: 450mA

Holding strength: 70lb

Features: Static Strength

Width: 1.25″

Height: 4.88″

Depth: 1.38″

Environmental certification: RoHS

Environmentally friendly: Yes

Country of origin: US

Installation notes

Set the fail safe or fail secure mode before closing up the frame, and match the supply voltage to the setting you are using. Test the strike with the lock on the actual door to confirm the latchbolt releases cleanly before you commission it.
