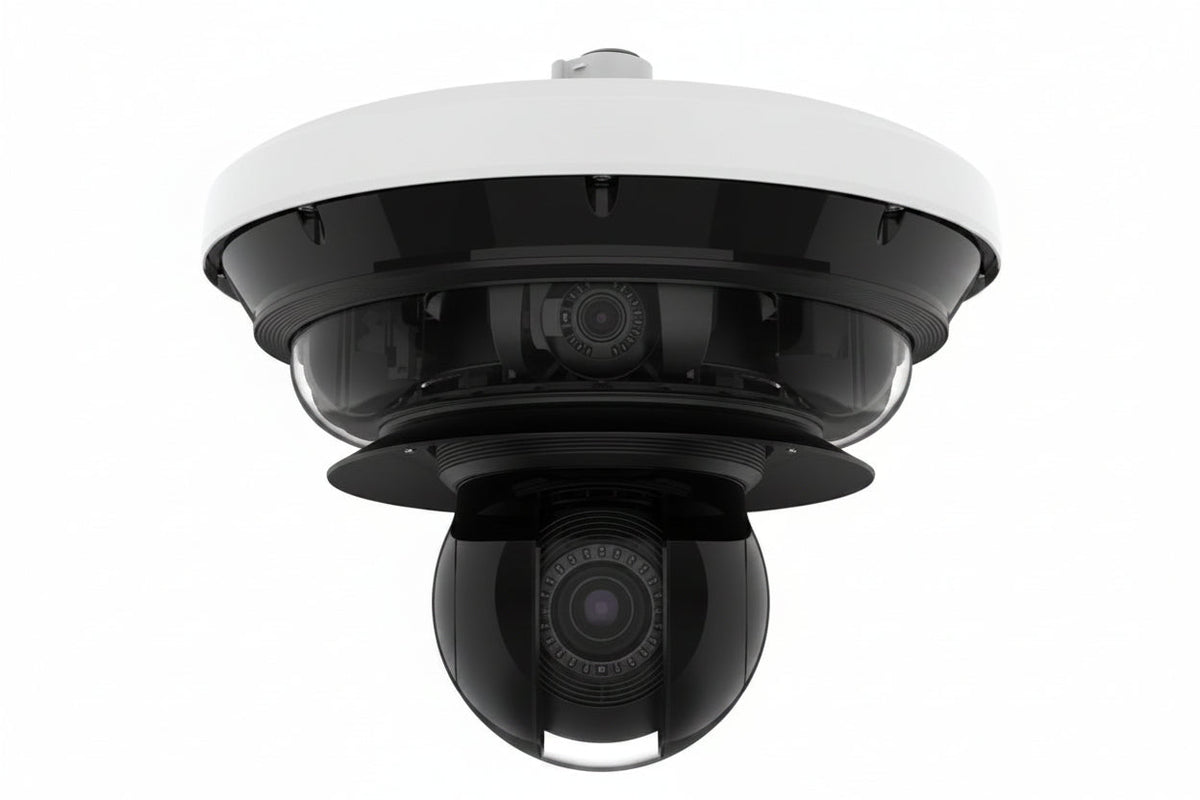

Hanwha PNM-C34404RQPZ 2MP 4-Channel Outdoor IP Dome Camera with 3.3-5.7mm Lens

The Hanwha PNM-C34404RQPZ is an outdoor multi-directional network camera that pairs four 4K/8MP sensor channels with a 2MP 40x PTZ camera in one dome housing. It suits sites that need wide coverage plus the ability to zoom in on events, such as parking lots, building perimeters and campuses. The motorized PTRZ adjustment and AI-based auto tracking stand out.

Key features

• Four 4K/8MP channels with motorized PTRZ allow remote adjustment of the full field of view.
• The PTZ camera offers 40x optical zoom and up to 60fps at 2MP.
• PTZ auto tracking and SmartZoom to preset or IVA trigger let the camera follow and zoom in on events.
• 120 dB WDR helps with scenes that mix bright and dark areas.
• IR reaches 20m (65ft) on the four fixed channels and up to 200m (656ft) with WiseIR on the PTZ.
• Frame rates are 15fps with AI on and 20fps with AI off.

Specifications

Brand: Hanwha

Model: PNM-C34404RQPZ

Product Type: PTZ Camera

Form Factor: Dome

Mount Type: Pendant Mount

Indoor/Outdoor: Outdoor

Effective Camera Resolution: 2MP

Maximum Video Resolution: 3840 x 2160

Number of Sensors: 4

Image Sensor Type: CMOS

Aspect Ratio: 16:9

Maximum Frame Rate: 60fps

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 3.3-5.7mm

Maximum Aperture: f/1.6

Minimum Aperture: f/1.5

Field of View (Horizontal): 109.0°

Field of View (Vertical): 55.00°

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 656.17'

Minimum Illumination: 0.0100lux

Shortest Shutter Speed: 1/12,000 Second

Longest Shutter Speed: 2 Second

Recording Formats: H.264

Video Formats: MJPEG

Storage Type: SD Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Temperature: -40°F to 122°F

Operating Humidity: 0-95% RH (Non-condensing)

Color: White

Diameter: 14.95″

Weight: 17.42lb

TAA Compliant: Yes

Country of Origin: KR

Installation notes

At 17.42lb, this pendant-mount dome needs a mounting surface and bracket rated for the load, and the cable run should be sealed against moisture. Use the motorized PTRZ to fine-tune each channel's view remotely after mounting, and confirm the network connection before final aiming.
