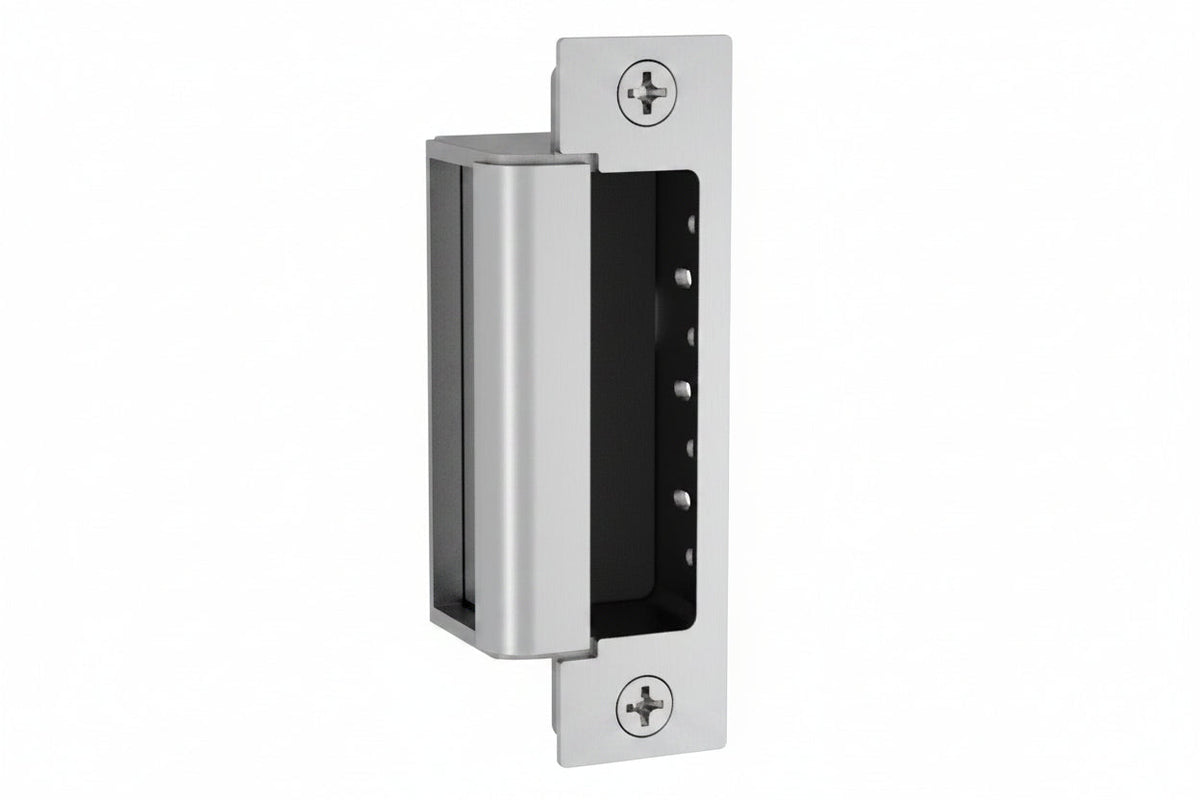

HES 1600-CS-630 1600 Series Electric Strike with 1LB Latchbolt and 1DB Deadbolt Faceplate Kits, Satin Stainless Steel

The HES 1600-CS-630 is a 1600 Series electric strike from HES, built for doors with cylindrical latchbolt or deadbolt locks. It is a non-handed stainless steel strike that suits installers and businesses adding electrified access control to a metal frame. The kit includes both a 1LB faceplate for latchbolts and a 1DB faceplate for deadbolts, so one strike covers either lock type.

Key features

• Stainless steel construction with a tamper resistant design.
• Rated for 1500lb static strength, 70 ft-lbs dynamic strength and 1,000,000 cycles of endurance.
• Fail safe or fail secure operation can be selected in the field.
• Non-handed, so the same strike works on either door swing.
• Faceplates and accessories are interchangeable, and components are field replaceable.
• The faceplate, keeper, case and trim come fully finished.

Specifications

Brand: HES

Model: 1600-CS-630

Product Series: 1600

Product Type: Electric Strike

Material: Stainless Steel

Finish: Satin Stainless Steel

Color: Silver

Application: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Door Handling: Non-Handed

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 450mA

Power Source: AC Power

Holding Strength: 70lb

Width: 1.25″

Height: 4.88″

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Choose the faceplate that matches the lock, 1LB for a latchbolt or 1DB for a deadbolt, and set the fail safe or fail secure mode before closing up the door. Check that the strike is fed from a supply that matches its 12V DC rating and confirm operation with the lock before leaving the job.
