HES 5200C-12/24D-630 Door Electric Strike with Faceplate, 12/24VDC, 1500 lb Static Load, Satin Stainless Steel

The HES 5200C-12/24D-630 (model 10590404, HE-520030101) is a stainless steel electric strike for cylindrical locksets on metal door frames. It lets you release a door by remote signal, and it suits installers who want one strike that can run on 12 or 24 volts and be set to fail secure or fail safe in the field. It is non-handed, tamper resistant and rated for 500,000 cycles.

Key features

• Fail secure or fail safe operation is selected in the field, so one strike covers both setups.
• It runs on either 12 or 24 VDC/VAC.
• The solenoid is mounted internally, and the strike is tamper resistant.
• The strike is non-handed, so you do not need to order separately for left- or right-hand doors.
• It accommodates a 5/8″ to 3/4″ latchbolt, with 3/4″ allowed at a 1/8″ door gap.

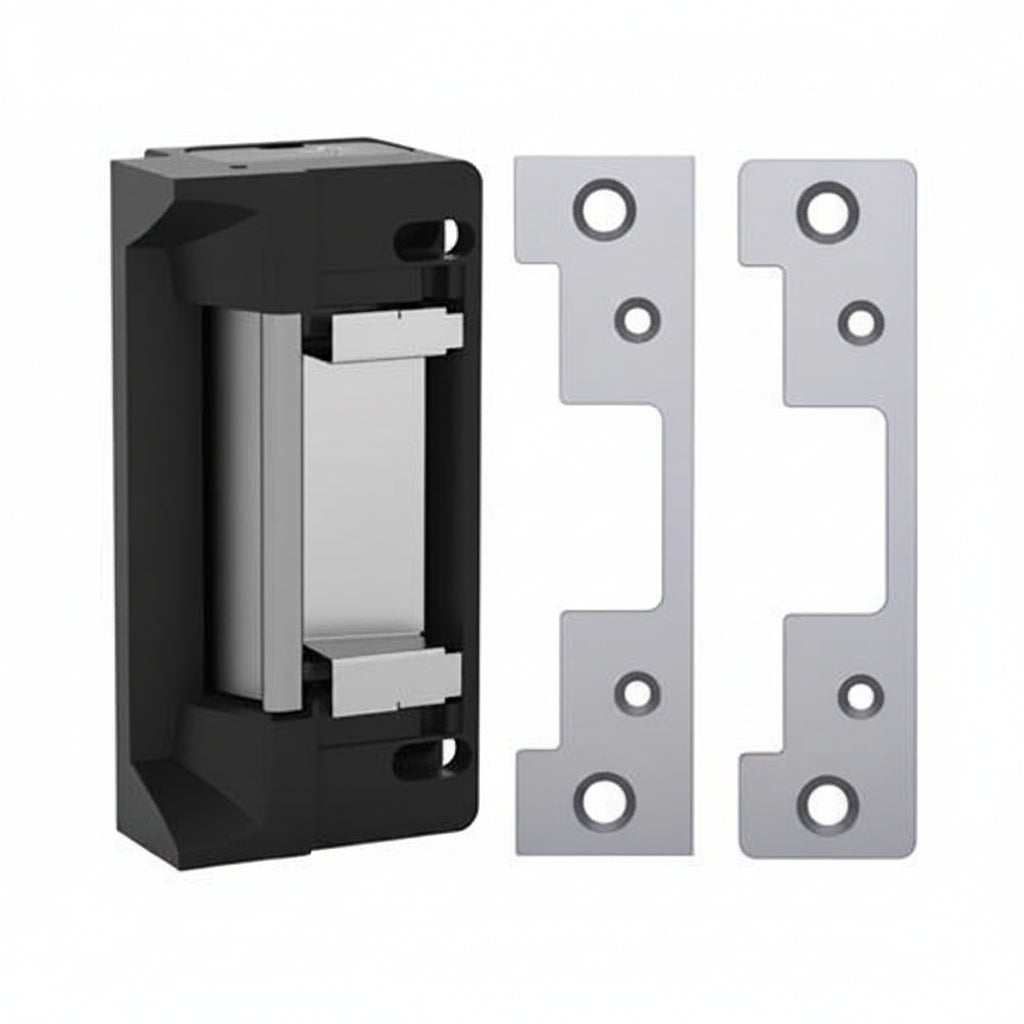

• It includes one 5000 strike body and two faceplates (501 and 501A).

Specifications

Brand: HES

Model: 10590404

Product Model: HE-520030101

Product Series: 5200

Product Type: Electric Strike

Application: Door

Material: Stainless Steel

Color: Silver

Finish: Satin Stainless Steel

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Compatibility: Sargent Cylindrical Locksets

Door Handling: Non-Handed

Security Configuration: Fail Secure (field selectable fail secure / fail safe)

Input Voltage: 12V DC (dual voltage 12 or 24 VDC/VAC)

Input Current: 240mA at 12V, 120mA at 24V

Holding Strength: 1500 lb

Static Strength: 1,500 lb

Dynamic Strength: 70 ft-lbs

Endurance: 500,000 cycles

Strike Body Depth: 1-1/16″

Height: 4.9″

Width: 1.3″

Depth: 1.2″

Country of Origin: US

Installation notes

Check the latchbolt size and door gap against the strike's accepted range before cutting the frame, and choose the faceplate that fits your frame prep. Confirm the supply voltage and the fail secure or fail safe setting before you power the strike, then test the release with the door closed and under normal load.
