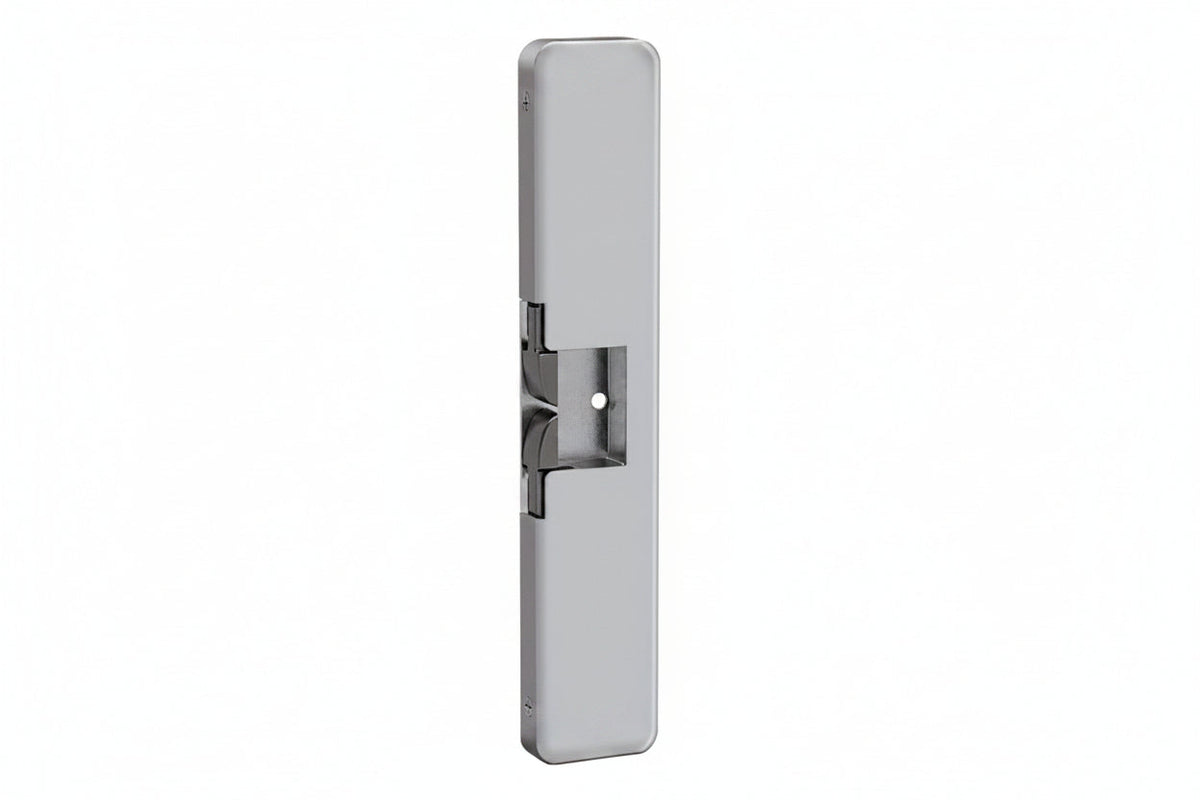

HES 9400-630 9400 Series Slim-Line Outdoor-Rated Surface-Mount Electric Strike, Satin Stainless Steel

The HES 9400-630 is a slim-line, outdoor-rated surface-mount electric strike in satin stainless steel, built to release rim exit devices with a 1/2″ Pullman latch. Its housing is completely surface mounted, so it suits installers who need to add electrified access to metal or wood frames without cutting into the frame. The tamper-resistant stainless construction and decorative cover give it a clean, low-profile look.

Key features

• Mounts entirely on the surface, so it works on both metal and wood frames.
• Stainless steel construction with a tamper-resistant design.
• A decorative cover gives the strike a sleeker appearance.
• Rated for 1,500 lb static strength, 70 ft-lb dynamic strength and 500,000 cycles of endurance.
• Field selectable between fail safe and fail secure operation.
• Includes a 1/8″ + 1/16″ spacer plate for fitting to the frame.

Specifications

Brand: HES

Model: 9400-630

Product series: 9400

Product type: Electric Strike

Application: Door

Color: Silver

Material: Stainless Steel

Compatible door frame type: Metal

Compatible door lock type: Rim Exit

Security configuration: Fail Secure

Input voltage: 12V DC

Input current: 450mA

Holding strength: 1500lb

Door handling: Non-Handed

Width: 1.00″

Feature: Horizontal Adjustment

Country of origin: US

Package contents: Genesis 9400 Electric Strike, 1/8″ Spacer Plate

Installation notes

Check the strike's alignment with the rim exit device's latch before final fastening, and use the horizontal adjustment and spacer plate to get a clean release. Confirm the fail safe or fail secure setting and the 12V DC supply before closing up, then test the door under power.
