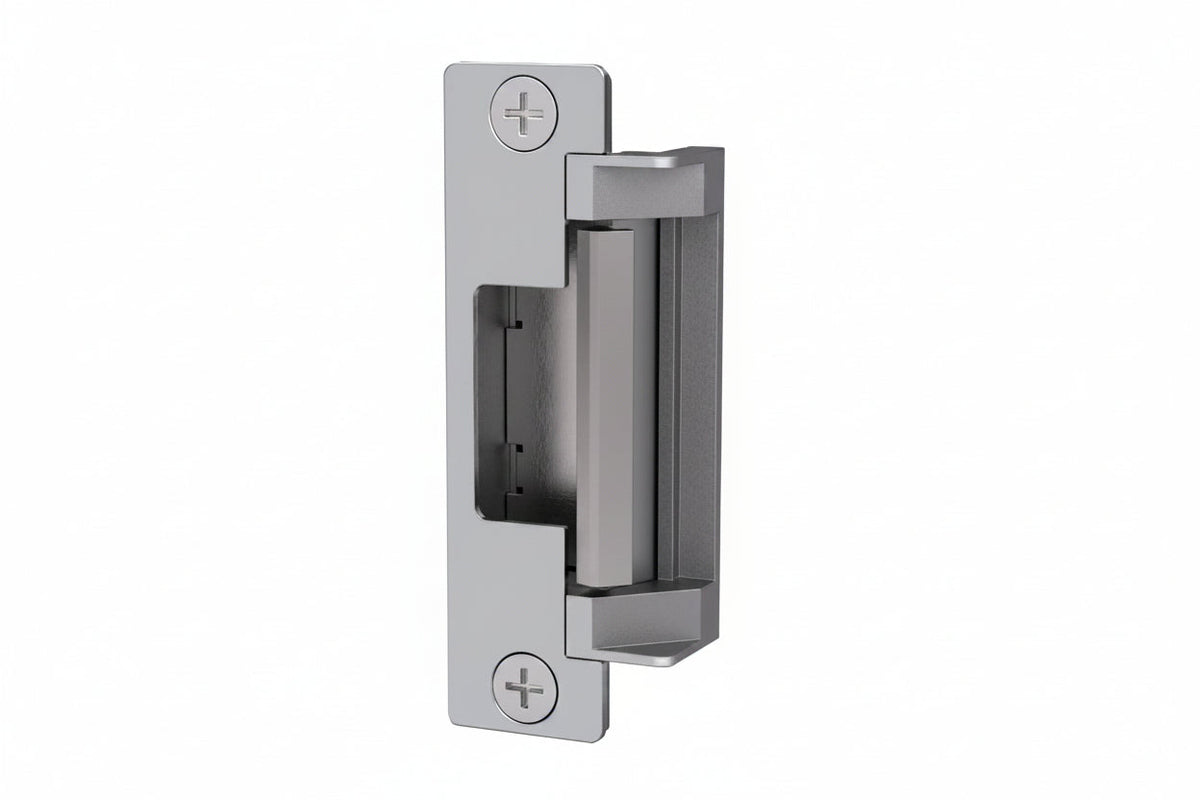

HES 4500C-12/24-630 4500C Series Complete Pac Electric Strike Kit with 4500 Strike Body and Two Faceplates, Satin Stainless Steel

The HES 4500C-12/24-630 is a complete electric strike kit for controlling entry through a door with a cylindrical lockset. It includes the 4500 strike body and two faceplates, so one kit can fit a range of locksets. It suits installers and facility managers who need a tamper-resistant stainless steel strike that works at either 12 or 24 volts and can be set for fail safe or fail secure in the field.

Key features

• Stainless steel construction makes the strike tamper resistant.
• It is rated for 1500 lb static strength and 1,000,000 cycles of endurance.
• Fail safe or fail secure operation is selected in the field, so one part number covers both.
• It runs on 12/24 VDC/VAC, which suits a range of power supplies.
• Two faceplates are provided to accommodate a variety of locksets.
• The strike is non-handed and has an internally mounted solenoid. It accepts a latchbolt up to 3/4″ with a 1-3/8″ strike body depth.

Specifications

Brand: HES

Model: 4500C-12/24-630

Product Series: 4500

Product Type: Electric Strike

Application/Usage: Door

Material: Stainless Steel

Color: Silver

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Door Handling: Non-Handed

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 240mA

Holding Strength: 3000lb

Features: Burglary Resistant

Height: 4.9″

Width: 1.3″

Depth: 1.4″

Country of Origin: US

Installation notes

The 4500C series is designed for 2″ UL 10C fire-rated frames with 1/2″ drywall penetration, so check your frame and drywall conditions before cutting. Pick the faceplate that matches your lockset, confirm the fail safe or fail secure setting, and test the strike with the lock before closing up the door.
