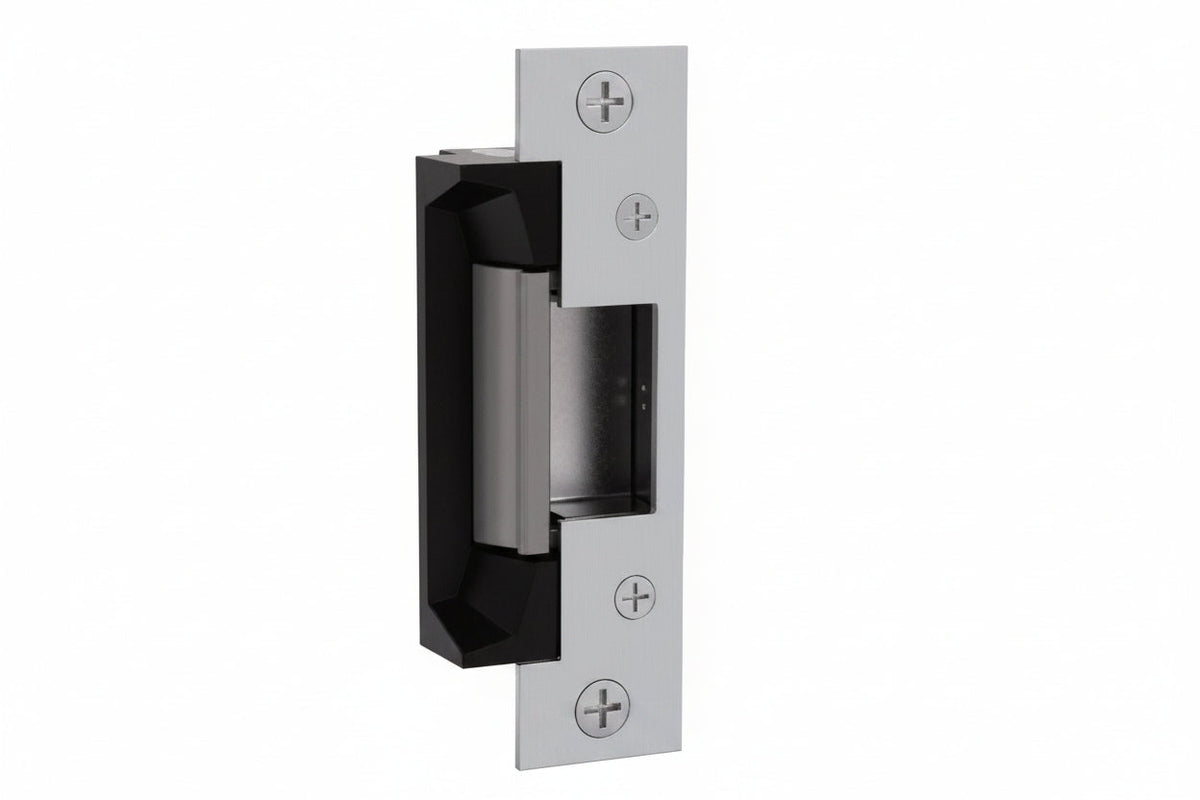

HES 5200-12/24D-630 5200 Series Electric Strike Body, 12/24VDC, 0.24/0.12A, 1-3/16-Inch Depth, Satin Stainless Steel

The HES 5200-12/24D-630 (model 10590401) is an electric strike body for the 5200 Series, finished in satin stainless steel. It releases a cylindrical latchbolt on a metal door frame and runs on 12 or 24 volts. It suits installers who want a non-handed strike with a field-selectable fail secure or fail safe setting, a tamper-resistant build, and an internally mounted solenoid.

Key features

• Tamper resistant construction.
• Fail secure or fail safe operation can be selected in the field.
• Runs on either 12 or 24 VDC/VAC.
• Non-handed design, so it is not tied to a door's hand.
• Rated for 500,000 cycles of endurance and 1,500 lbs of static strength.
• Accommodates a 5/8″ to 3/4″ latchbolt, including 3/4″ with a 1/8″ door gap.

Specifications

Brand: HES

Model: 10590401

Product Series: 5200

Product Type: Electric Strike

Application: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Door Handling: Non-Handed

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 120mA

Holding Strength: 1500lb

Material: Stainless Steel

Color: Silver

Height: 4.80″

Depth: 1.18″

Country of Origin: US

Package Contents: 5200 Electric Strike, Trim Enhancer

Installation notes

Confirm the latchbolt size and door gap fall within the accommodated range before cutting the frame, and match the supply voltage to the selected 12 or 24 volt setting. Set fail secure or fail safe to suit the application, then test the release with the door closed and under normal latch pressure.
