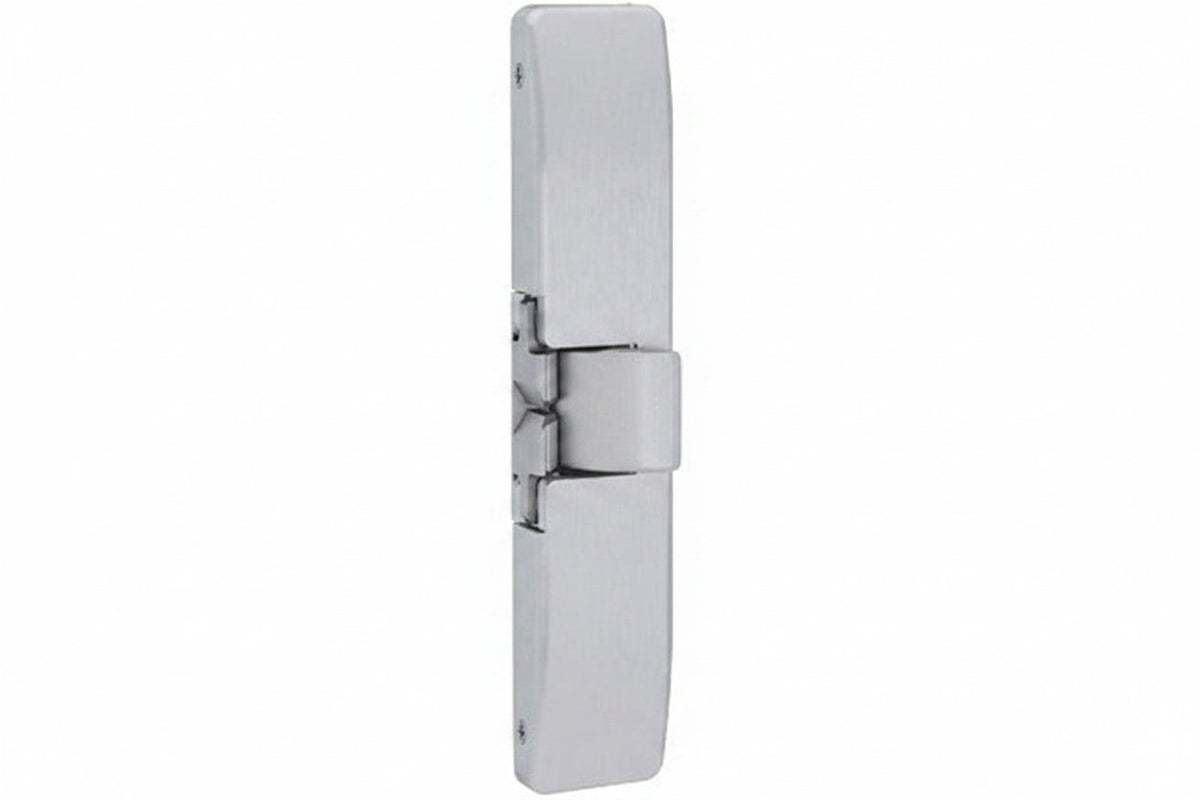

HES 9500-630 9500 Series Surface Mounted Electric Strike, Fire Rated, Satin Stainless Steel

The HES 9500-630 is a surface mounted electric strike from the 9500 Series, built to work with rim exit devices that use a 3/4″ Pullman latch. It is 3-hour fire rated and mounts on the face of the frame, so installers don't have to cut the frame. With its stainless steel housing, field selectable fail secure/safe operation and 12 or 24VDC compatibility, it suits fire-rated openings on metal frames where a durable, flexible strike is needed.

Key features

• It carries a 3-hour fire rating and complies with NFPA 80-07 guidelines.
• Surface mounting means the door frame does not need to be cut.
• It accommodates a 3/4″ Pullman latch on rim exit devices.
• The stainless steel housing is built for durability and exceeds grade-1 strength standards.
• You can set fail secure or fail safe operation in the field.
• It works with either 12 or 24VDC power.

Specifications

Brand: HES

Model: 9500-630

Product Series: 9500

Product Type: Electric Strike

Application/Usage: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Door Handling: Non-Handed

Material: Stainless Steel

Color: Silver

Height: 9.00″

Depth: 0.75″

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 250mA

Holding Strength: 1500lb

Features: Static Strength

Certifications & Standards: UL Listed

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Confirm that the strike matches your rim exit device's latch and the fail secure or fail safe mode you need before you mount it, and set the mode in the field as required. Size the power supply and cable run for the voltage and current you are using, and test operation with the door closed and latched after commissioning.
