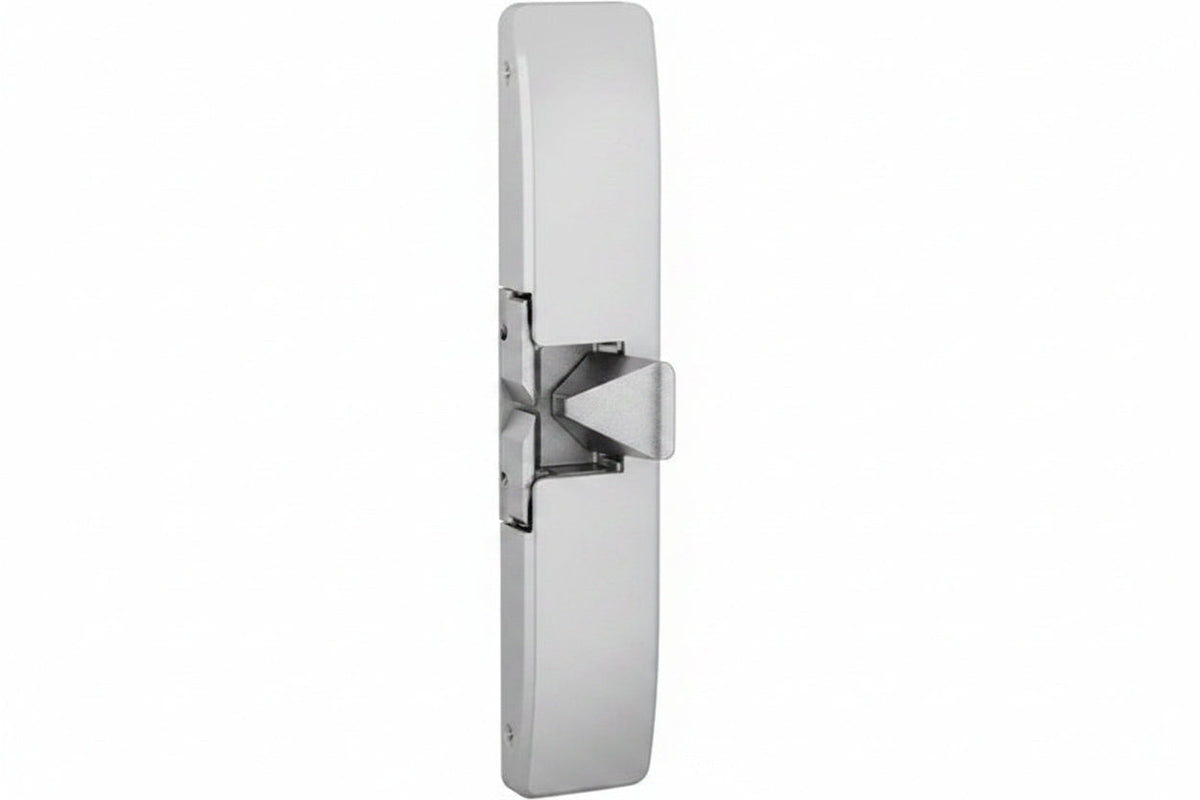

HES 9500-12/24D-630-LBM 9500 Series Surface Mounted Electric Strike with Latchbolt Monitor, Fire Rated, Satin Stainless Steel

The HES 9500-12/24D-630-LBM is a surface mounted electric strike built for rim exit devices with a 3/4″ Pullman latch. It controls access through a door and includes a latchbolt monitor, so it suits installers and facility managers who need to know the latch status. Its stainless steel housing, tamper resistant design and fire rating make it a solid choice for commercial openings.

Key features

• It mounts in metal or wood frames; wood screws are not included.
• The base and decorative cover are separate, which makes adjustments easier.
• It can be set in the field for fail secure or fail safe operation.
• It is non-handed and offers horizontal adjustability, so one unit fits either door swing.
• It is rated for 1,500 lbs static strength, 70 ft-lbs dynamic strength and 1,000,000 cycles of endurance.

Specifications

Brand: HES

Model: 9500-630-LBM

Product Series: 9500

Product Type: Electric Strike

Application/Usage: Door

Compatible Door Lock Type: Rim Exit

Compatible Door Frame Type: Metal

Door Handling: Non-Handed

Security Configuration: Fail Secure

Features: Latchbolt Monitor

Material: Stainless Steel

Color: Silver

Input Voltage: 12V DC

Input Current: 450mA

Power Source: AC Power

Holding Strength: 70lb

Height: 9.00″

Depth: 0.75″

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Because this strike mounts on the surface of the frame, confirm the rim exit device's Pullman latch lines up with the strike before you fasten it down. Use the horizontal adjustment to fine-tune alignment, and test the latchbolt monitor signal and the fail secure or fail safe setting before you put the door into service.
