HES 5300C-630 5300 Series Electric Strike Complete Pack, Stainless Steel

The HES 5300C-630 is a compact stainless steel electric strike for cylindrical locksets on metal door frames. It suits fire-rated openings where there is little space behind the jamb. HES builds the 5300 Series to be non-handed and field selectable between fail secure and fail safe, so one strike covers a range of door setups.

Key features

• Tamper resistant construction with a static strength of 1,500 lbs.
• Rated for 1,000,000 cycles of endurance.
• Switch between fail secure and fail safe in the field.
• Non-handed design, so the same strike works on either door hand.
• The solenoid is mounted internally, and a plug-in connector simplifies wiring.
• Accommodates a 1/2″ to 5/8″ latchbolt, with 5/8″ allowed at a 1/8″ door gap.

Specifications

Brand: HES

Model: 5300C630

Product Series: 5300

Product Type: Electric Strike

Material: Stainless Steel

Application/Usage: Door Lock

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Compatibility: Works with cylindrical locksets up to a 5/8″ throw latchbolt

Door Handling: Non-Handed

Security Configuration: Fail Secure

Power Source: DC Power

Input Voltage: 12V DC

Input Current: 240mA

Holding Strength: 1500lb

Strike Body Depth: 1-1/16″

Height: 4.86″

Width: 1.07″

Features: PoE Friendly

Environmental Certification: RoHS

Country of Origin: US

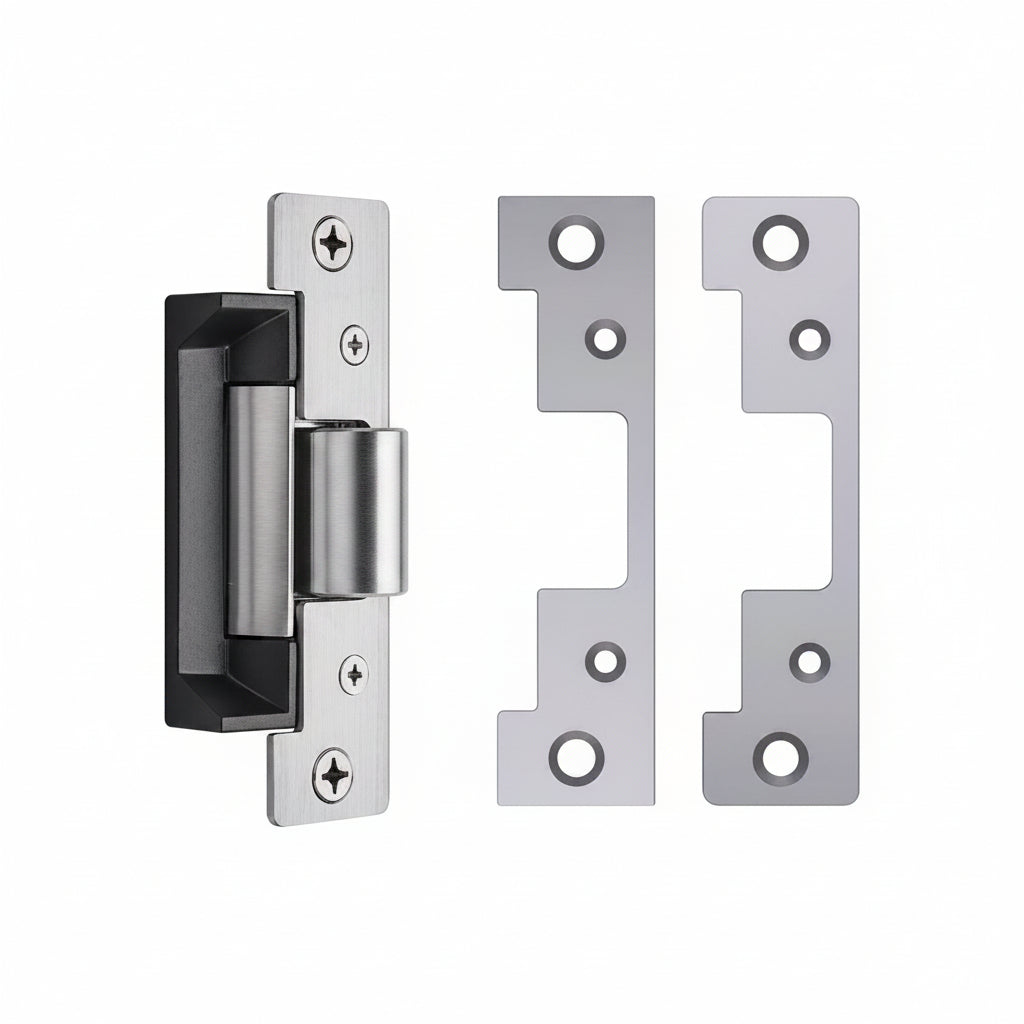

Package Contents: 5300 Series Electric Strike, 501 Faceplate, 501A Faceplate

Installation notes

Confirm the latchbolt throw and door gap fall within the strike's stated range before cutting the frame, and choose the fail secure or fail safe setting before closing up the opening. Use a regulated 12V DC supply and test the door under power several times to confirm smooth latch release.
