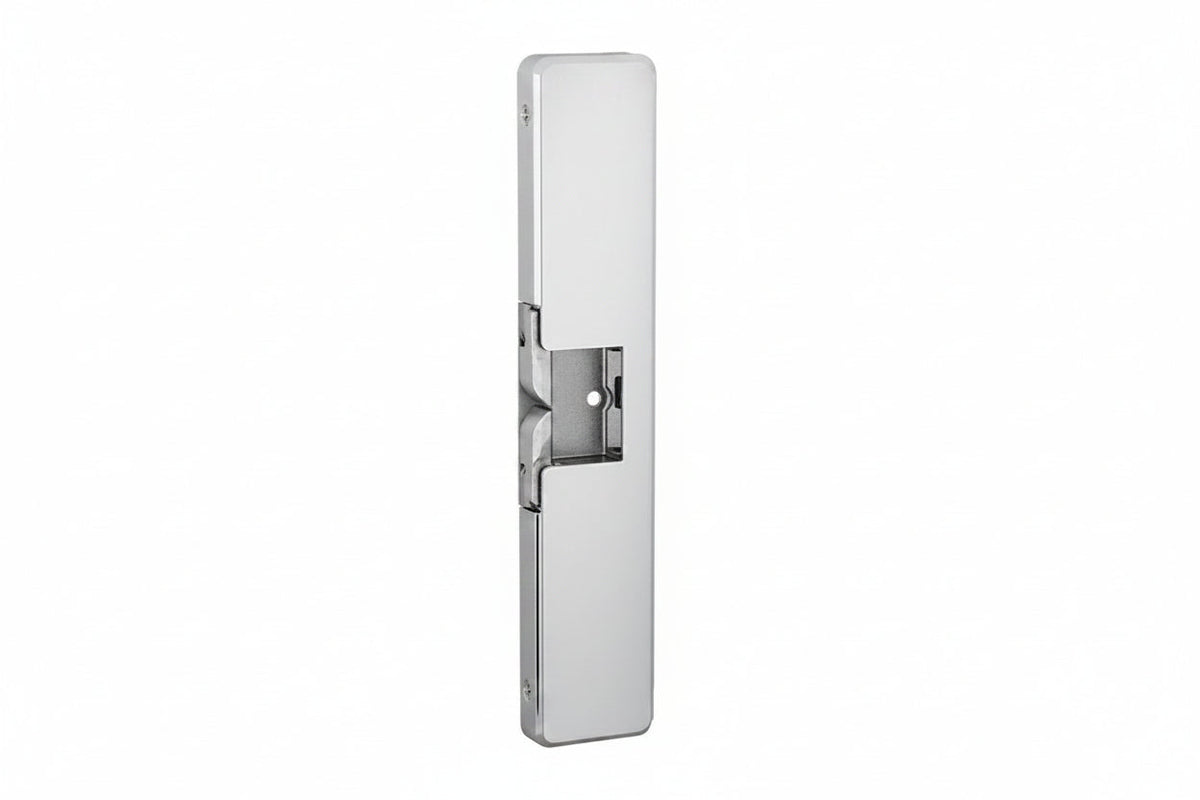

HES 9400-12/24D-630-LBM 9400 Series Slim-Line, Outdoor Rated Surface Mounted Electric Strike with Latchbolt Monitor, Satin Stainless Steel

The HES 9400-12/24D-630-LBM from the Genesis 9400 Series is a slim-line, outdoor-rated surface-mounted electric strike with a latchbolt monitor, finished in satin stainless steel. It releases rim exit devices with a 1/2″ Pullman latch, and suits installers and facilities that need a tamper-resistant strike for exterior doors. It runs on 12 or 24V DC and can be set in the field for fail secure or fail safe.

Key features

• Fits both metal and wood frames; wood screws are not included.
• A decorative cover gives the strike a cleaner look.
• Stainless steel construction with a tamper-resistant design.
• Rated for 1,500lb static strength, 70 ft-lbs dynamic strength and 1,000,000 cycles of endurance.
• Fail secure or fail safe is selectable in the field.
• Works on either 12 or 24V DC.

Specifications

Brand: HES

Model: 9400-630-LBM

Product Line: Genesis

Product Series: 9400

Product Type: Electric Strike

Application: Door

Color: Silver

Material: Stainless Steel

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Door Handling: Non-Handed

Adjustment: Horizontal

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 450mA

Holding Strength: 70lb

Width: 1.00″

Country of Origin: US

Package Contents: Genesis 9400 Electric Strike, 1/8″ Spacer Plate

Installation notes

Confirm the strike lines up with the rim exit device's Pullman latch before fastening, and use the horizontal adjustment to fine-tune the fit. Choose the fail secure or fail safe setting and the 12 or 24V DC supply to suit the application, then test the release and latchbolt monitor before putting the door into service.
