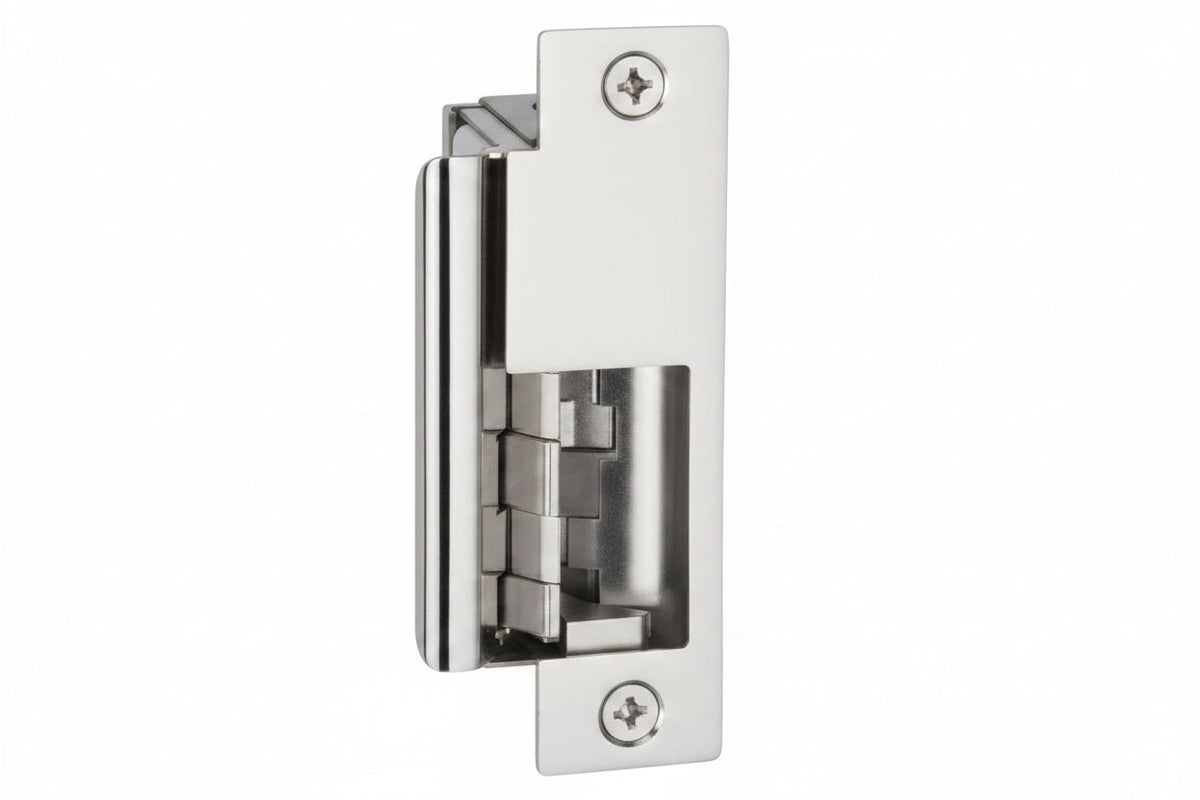

HES 8500-12/24D-630 Electric Strike Body, Fire-Rated, Compact, 12/24VDC, 0.24/0.12A, 5/16" Depth, Satin Stainless Steel, for 8500 Series Electric Strike

The HES 8500-12/24D-630 (model 10700401) is a compact electric strike body for 8500 Series electric strikes, built to release a door from a mortise lock. It fits metal or wood frames, is non-handed, and is made of satin stainless steel with a tamper-resistant build. It suits installers who need a strong, low-profile strike that can be set up as fail safe or fail secure in the field.

Key features

• Installs without cutting the face of the frame.
• Stainless steel construction is tamper resistant.
• Rated for 1,500 lbs static strength and 70 ft-lbs dynamic strength.
• Endurance is rated at 500,000 cycles.
• Fail safe or fail secure operation is selectable in the field.
• Runs on 12 or 24 VDC/VAC, and the non-handed design suits either door swing.

Specifications

Brand: HES

Model: 10700401

Product series: 8500

Product type: Electric Strike Body

Application: Door

Compatible door lock type: Mortise

Compatible door frame type: Metal or wood

Door handling: Non-handed

Security configuration: Field selectable fail safe / fail secure

Input voltage: 12/24 VDC/VAC

Current draw: 0.24/0.12 A

Holding strength: 1,500 lbs

Dynamic strength: 70 ft-lbs

Endurance: 500,000 cycles

Material: Stainless steel

Finish: Satin stainless steel

Color: Silver

Features: Compact, fire-rated

Width: 1.25″

Height: 4.87″

Depth: 1.31″

Country of origin: US

Installation notes

Confirm the fail safe or fail secure setting and the supply voltage before powering the strike, and check that the power supply matches the 12 or 24 volt choice. After mounting, test the door with the power on and off to confirm the latch releases and re-secures cleanly.
