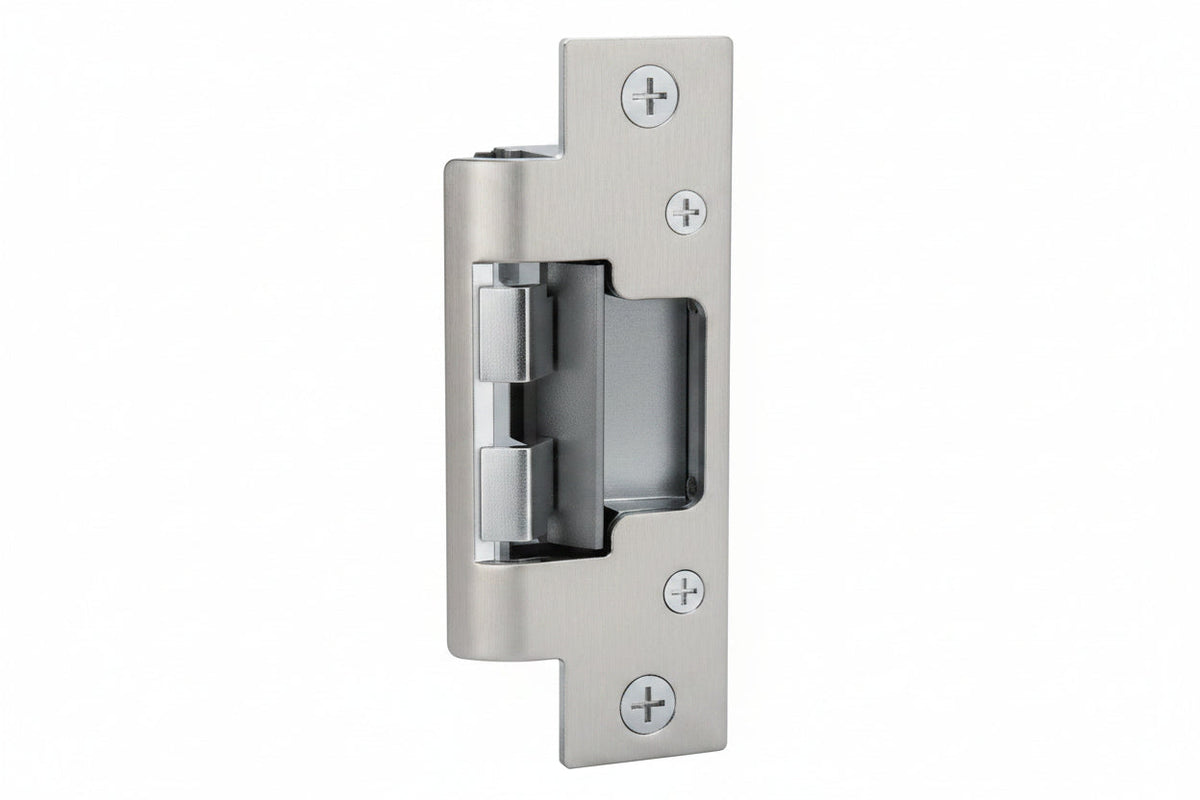

HES 8000C-12/24D-630-LBM 8000C Series Complete Pac Electric Strike Kit with Latchbolt Monitor for Latchbolt Locks, Includes 801 and 801A Faceplates, Satin Stainless Steel

The HES 8000C-12/24D-630-LBM (model 10720410) is a complete electric strike kit for cylindrical latchbolt locks on metal door frames. It releases the door on an electrical signal and includes a latchbolt monitor, so you can see whether the latchbolt is in place. The compact strike body suits installers fitting a strike without cutting the frame, and it can be set in the field for fail safe or fail secure operation.

Key features

• No cutting on the frame is required, so the existing strike plate is simply replaced.
• Vertical adjustment allows for door sag and misalignment.
• The tamper-resistant design is rated for 1,500 lbs. static strength and 70 ft-lbs. dynamic strength.
• Endurance is rated at 500,000 cycles.
• Fail safe or fail secure can be selected in the field.
• The kit includes the 8000 strike body with latchbolt monitor and both the 801 and 801A faceplates.

Specifications

Brand: HES

Model: 10720410

Series: 8000

Product Type: Electric Strike

Material: Stainless Steel

Finish: Satin Stainless Steel

Color: Silver

Application: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Latchbolt Accommodated: 1/2″–5/8″ cylindrical (5/8″ with 1/8″ door gap)

Door Handing: Non-Handed

Security Configuration: Fail Secure (field selectable fail safe/fail secure)

Input Voltage: 12V DC

Input Current: 120mA

Holding Strength: 1500lb

Width: 1.44″

Height: 4.87″

Depth: 1.07″

Country of Origin: US

Installation notes

Remove the existing strike plate, then set the vertical position to line up with the latchbolt before you fasten the strike. Choose the fail safe or fail secure setting and confirm the power supply matches the strike's input rating before final commissioning, and test the latchbolt monitor signal along with the door operation.
