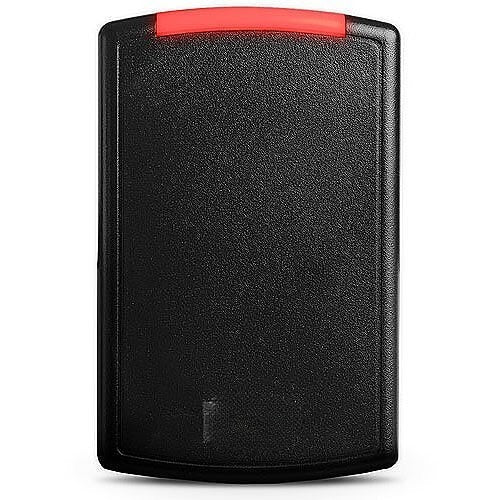

Multi-Technology Access Control Reader, High-Security 13.56 MHz + 125 kHz Proximity, Single-Gang RGPB

The RGPB is a high-security single-gang card reader designed for modern access control installations. It combines multiple credential technologies—high-frequency (13.56 MHz), low-frequency proximity (125 kHz), and Bluetooth mobile options—into one versatile device. With OSDP secure connectivity and Wiegand protocol support, it meets the demands of both everyday deployments and highly secure facilities.

This reader offers up to 4-inch read range and supports MIFARE DESFire EV2 encryption for protected data transmission. The IP55 protection rating makes it suitable for indoor and semi-outdoor environments. It mounts easily in a standard gang box and operates on 5–16V DC power (linear supply recommended), with Wiegand output capable of reaching 500 feet on 22AWG cable.

Ideal for office buildings, data centers, healthcare facilities, and secure entrances where flexible credential options and modern security standards are essential.

• Multi-technology reader supports high-frequency (13.56 MHz), proximity (125 kHz), and Bluetooth mobile credentials in one device
• OSDP secure protocol with MIFARE DESFire EV2 encryption protects against unauthorized access and data tampering
• 4-inch read range and Wiegand output rated to 500 feet (22AWG) enables flexible installation and integration
• IP55 protection rating handles indoor and semi-outdoor environments without performance loss
• Single-gang form factor fits standard electrical boxes; operates on 5–16V DC with minimal wiring complexity
