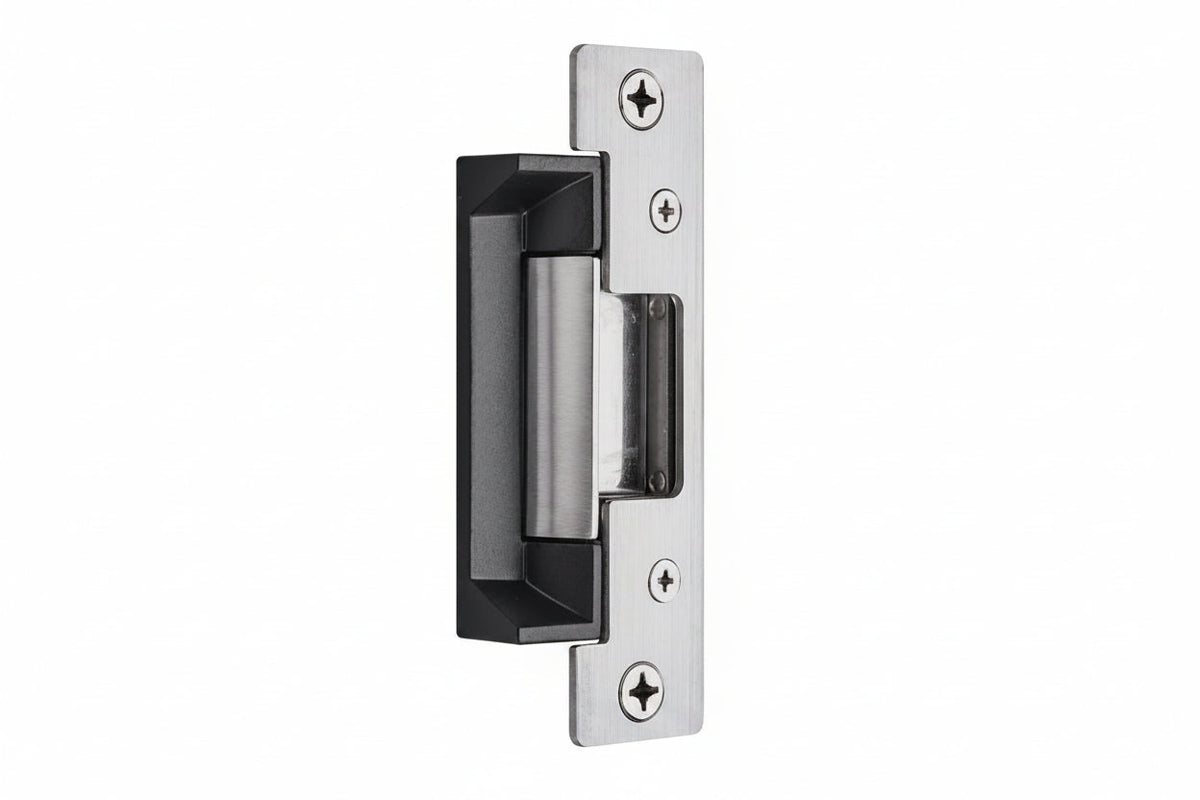

HES 5300C-630-LBM 5300 Series Universal Electric Strike, Includes 501 and 501A Faceplates, Latchbolt Monitor, Stainless Steel

The HES 5300C-630-LBM is a 5300 Series universal electric strike in stainless steel, built for cylindrical door locks. It lets you release a door remotely while keeping the latch side secure, and it suits installers and businesses that need a strike which can be set up as fail safe or fail secure on site. It includes a latchbolt monitor, 501 and 501A faceplates and a trim enhancer.

Key features

• Field selectable fail safe or fail secure operation, so one strike covers either requirement.
• Runs on 12 or 24V, DC or AC.
• Non-handed design with an internally mounted solenoid.
• Tamper resistant, with a static strength of 1,500 lbs and an endurance of 1 million cycles.
• Plug-in connector for wiring, and a latchbolt monitor is built in.
• Comes with 501 and 501A faceplates and a trim enhancer.

Specifications

Brand: HES

Model: 5300C-630-LBM

Product Series: 5300

Product Type: Electric Strike

Material: Stainless Steel

Compatible Door Lock Type: Cylindrical

Security Configuration: Fail Secure

Power Source: AC Power

Input Voltage: 12V DC

Features: PoE Friendly

Holding Strength: 70lb

Static Strength: 1,500 lbs

Endurance: 1 million cycles

Strike Body Depth: 1-1/16″ (27.3mm)

Height: 4.86″

Width: 1.07″

Country of Origin: US

Installation notes

Confirm the door frame cutout allows for the strike body depth before mounting, and select the fail safe or fail secure setting before closing up the frame. After wiring through the plug-in connector, test the strike and the latchbolt monitor signal with the door closed and latched.
