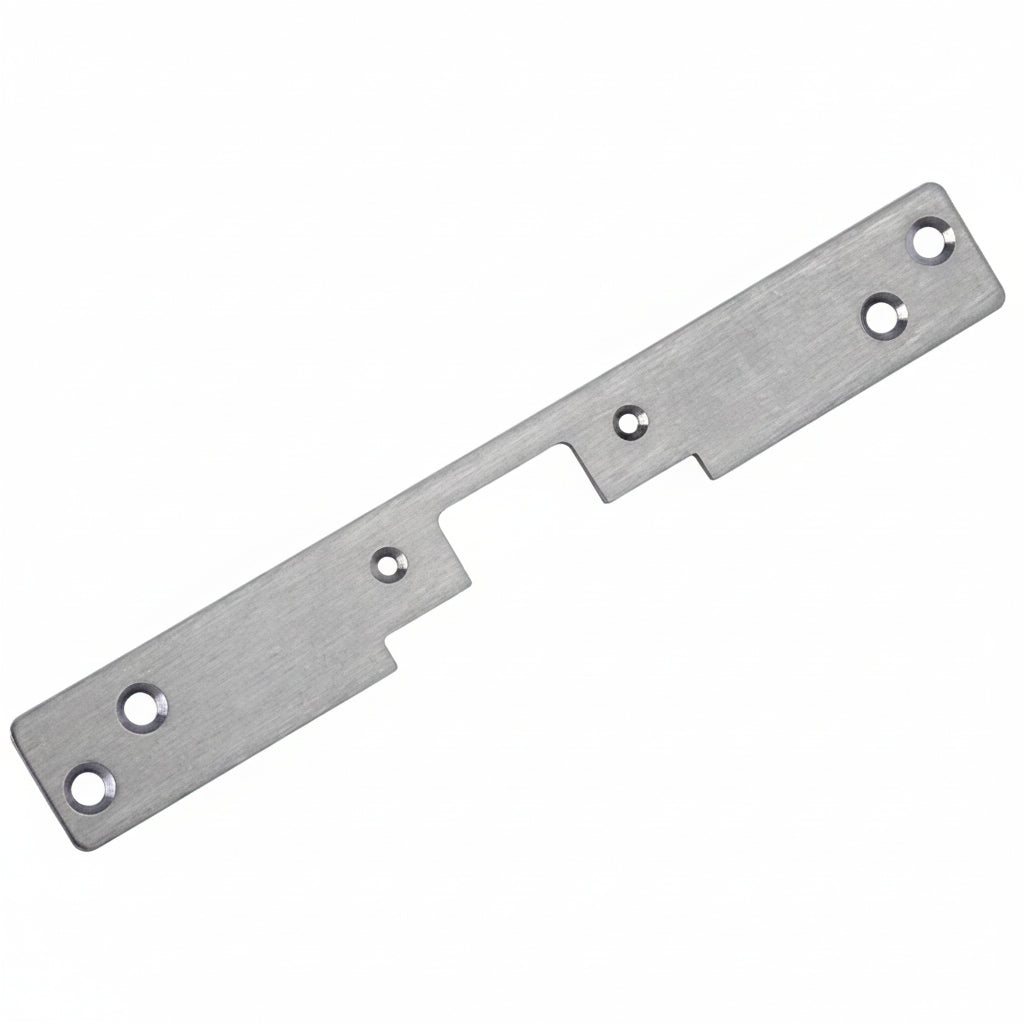

HES 504-630 5000 Series Electric Strike Faceplate, 10" x 1-3/8", Radius Corner, Satin Stainless Steel

The HES 504-630 (model 10200041) is a satin stainless steel faceplate for the HES 5000 series electric strike. It has radius corners and measures 10″ x 1-3/8″, and it adapts the HES 5000/5200 strike to suit a wood frame door opening. It suits installers and facility owners fitting strikes on doors with cylindrical locksets.

Key features

• The satin stainless finish gives a clean, silver-toned look at the door frame.
• It is designed for wood frame applications.
• Radius corners let you customize how the HES 5000/5200 strike functions.
• It is made for use with cylindrical locksets.
• The faceplate is made from stainless steel.

Specifications

Brand: HES

Model: 504-630 (10200041)

Product Series: 5000

Product Type: Faceplate

Size: 10″ x 1-3/8″

Corner Style: Radius

Material: Stainless Steel

Finish: Satin Stainless

Color: Silver

Country of Origin: US

Installation notes

Make sure the frame mortise is cut cleanly to match the radius corners so the faceplate sits flush against the wood. Test the latch and strike alignment with the lockset before final fastening.
