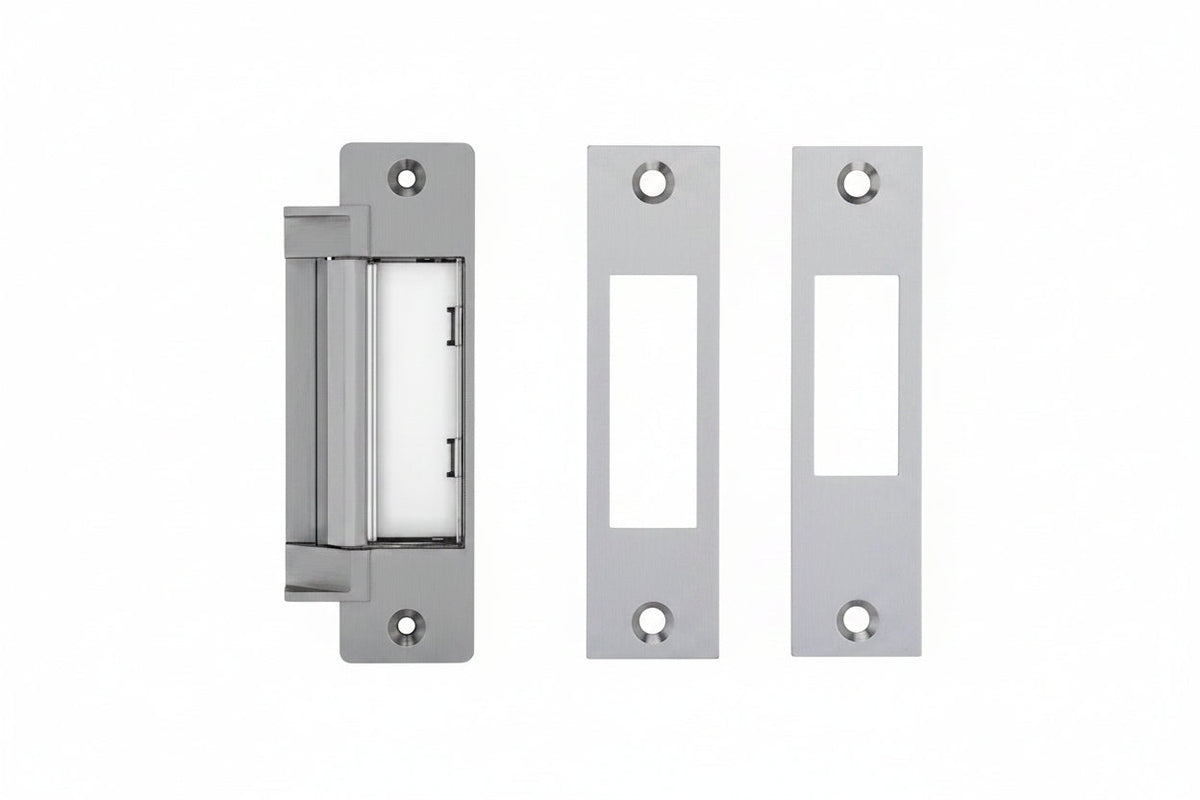

HES 4500C-12/24-630-LBM 4500C Series Complete Pac Electric Strike with Latchbolt Monitor, Includes 4500 Strike Body and Faceplates, Satin Stainless Steel

The HES 4500C-12/24-630-LBM is a 4500C Series Complete Pac electric strike with a latchbolt monitor, built for metal door frames and cylindrical locksets. It handles the job of electrically releasing a door while reporting latchbolt status, which suits installers and facility owners working on fire-rated openings. It stands out for its low 1-3/8″ profile, BHMA Grade 1 strength and field-selectable fail safe/fail secure operation.

Key features

• Fits cylindrical and mortise latchbolts up to 3/4″.
• Carries BHMA Grade 1 strength in a low profile body, with 100 ft-lbs dynamic strength and 1,000,000-cycle endurance.
• Can be set in the field to fail safe or fail secure.
• Comes with two faceplates to suit a range of locksets, and the strike is non-handed.
• Has an internally mounted solenoid.
• Fire ratings include UL 10C 3-hour, CANC-S104, NFPA-252 and ASTM-E152, and it is California Fire Marshal listed.

Specifications

Brand: HES

Model: 4500C-12/24-630-LBM

Series: 4500C Series Complete Pacs

Product type: Electric Strike

Application: Door

Feature: Latchbolt Monitor

Compatible door frame type: Metal

Compatible door lock type: Cylindrical

Door handling: Non-Handed

Security configuration: Fail Secure

Input voltage: 12V DC

Input current: 240mA

Holding strength: 3000lb

Material: Stainless Steel

Color: Silver

Height: 4.84″

Width: 1.26″

Depth: 1.38″

Certifications: UL Listed

Country of origin: US

Installation notes

The 4500C is designed for 2″ UL 10C fire-rated frames with 1/2″ drywall penetration, so confirm the frame before cutting. Choose the faceplate that matches the lockset, set the fail safe/fail secure mode before closing up the opening, and test the latchbolt monitor output along with the strike release when commissioning.
