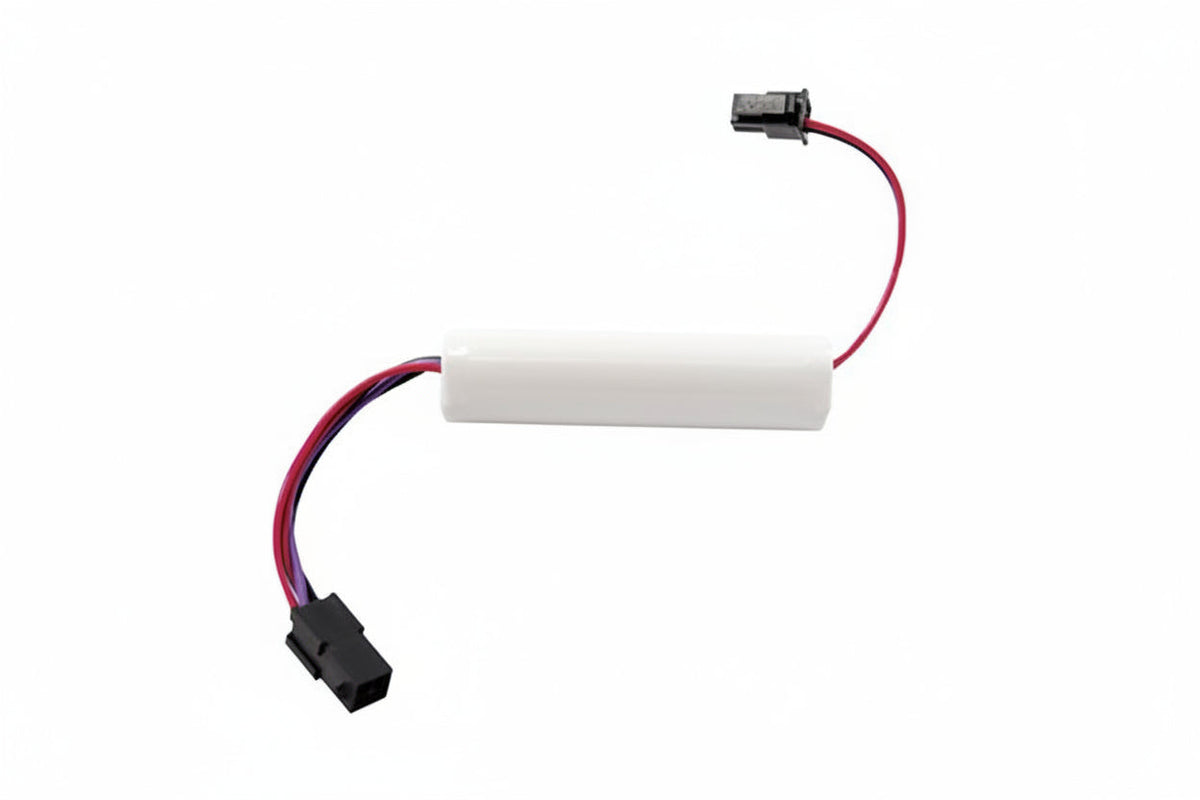

HES 2005M3 SMART Pac III Electric Strike In-Line Power Controller, 12 to 32VAC/DC, with Built-In Resettable Fuse, MOV, Voltage Regulation and Input Status LED

The HES 2005M3 SMART Pac III is an in-line power controller that sits between your supply and an electric strike. It accepts 12 to 32V AC or DC and outputs 12V DC or 24V DC depending on the input voltage. It suits installers who want a single module that handles rectification and surge protection on strike circuits, and it works with both fail secure and fail safe strikes.

Key features

• Accepts a wide input range of 12 to 32V AC or DC.
• Delivers 12V DC or 24V DC output, depending on the input voltage.
• A smart LED shows the input status.
• A built-in bridge rectifier is included.
• Built-in surge protection and voltage regulation help protect the strike circuit.
• Supports electric strikes configured as fail secure or fail safe.

Specifications

Brand: HES

Model: 10270406

Product line: SMART Pac III

Product type: Electric Strike In-line Power Control

Input voltage: 12 to 32V AC/DC

Output: 12V DC or 24V DC, depending on input voltage

Compatibility: Folger Adam (all series); HES electric strikes (all series)

Country of origin: US

Installation notes

Mount the controller in-line between the power source and the strike, close enough to the strike to keep the output run short. Check the input status LED during commissioning to confirm power is reaching the unit before testing the strike.
