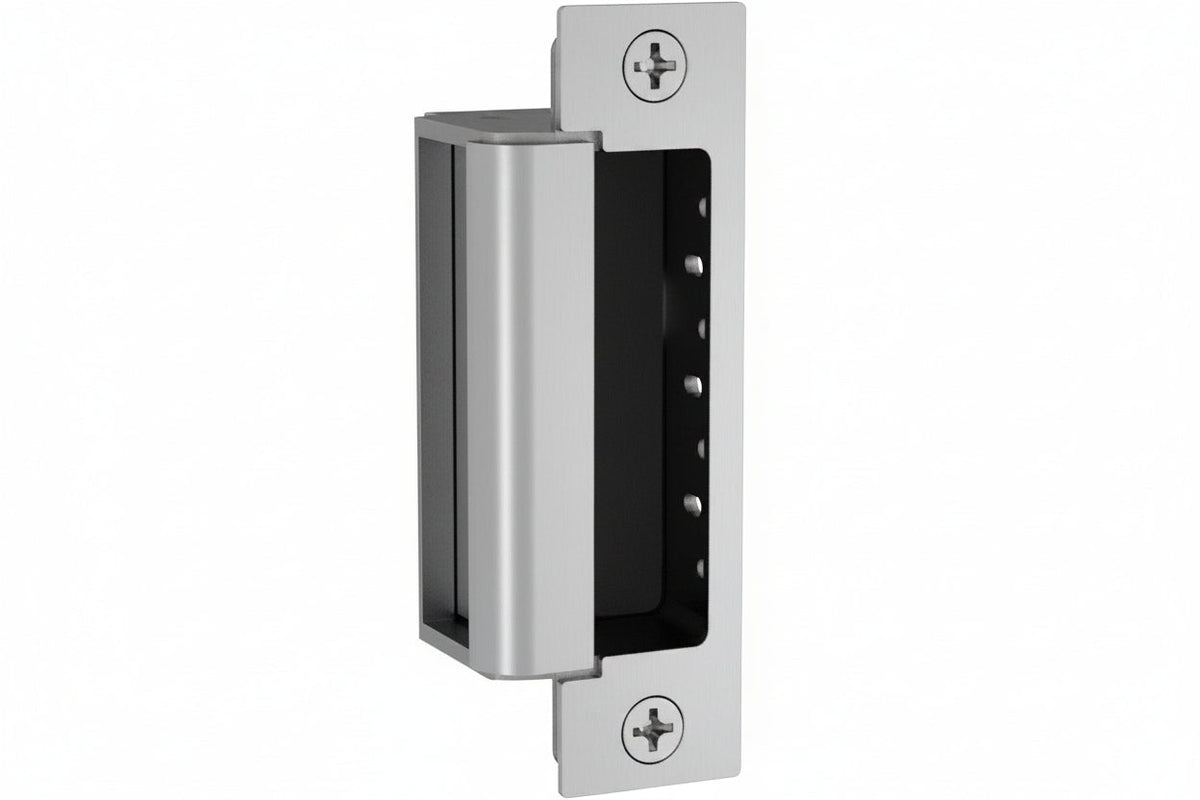

HES 1600-CDB-630 1600 Series Complete Electric Strike for Deadbolt Locks with 1DB Faceplate Kit, Satin Stainless Steel

The HES 1600-CDB-630 is a complete 1600 Series electric strike for deadbolt locks, supplied with the 1DB faceplate kit in a satin stainless steel finish. It releases the door on an electric signal and suits installers and businesses fitting a non-handed strike in a metal frame. Its field-selectable fail safe/fail secure operation and dual 12/24V DC/AC input stand out.

Key features

• Stainless steel construction with a rated endurance of 1,000,000 cycles.
• Switch between fail safe and fail secure in the field to suit the application.
• Runs on 12 or 24V, DC or AC.
• Field replaceable components and an integrated shim you can adjust on site.
• Non-handed design with ElectroLynx connectors.
• Low profile for latchbolts.

Specifications

Brand: HES

Model: 1600-CDB-630

Product Series: 1600

Product Type: Electric Strike

Material: Stainless Steel

Color: Silver

Width: 1.25″

Height: 4.88″

Input Voltage: 12V DC

Input Current: 450mA

Power Source: AC Power

Security Configuration: Fail Secure

Holding Strength: 70lb

Door Handling: Non-Handed

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Application: Door

Certifications & Standards: UL Listed

Environmental Certification: RoHS

Country of Origin: US

Installation notes

Set the fail safe or fail secure mode and match the supply voltage to your power source before closing up the frame. After mounting, use the adjustable shim to fine-tune the fit with the lock, then test the door with power on and off.
