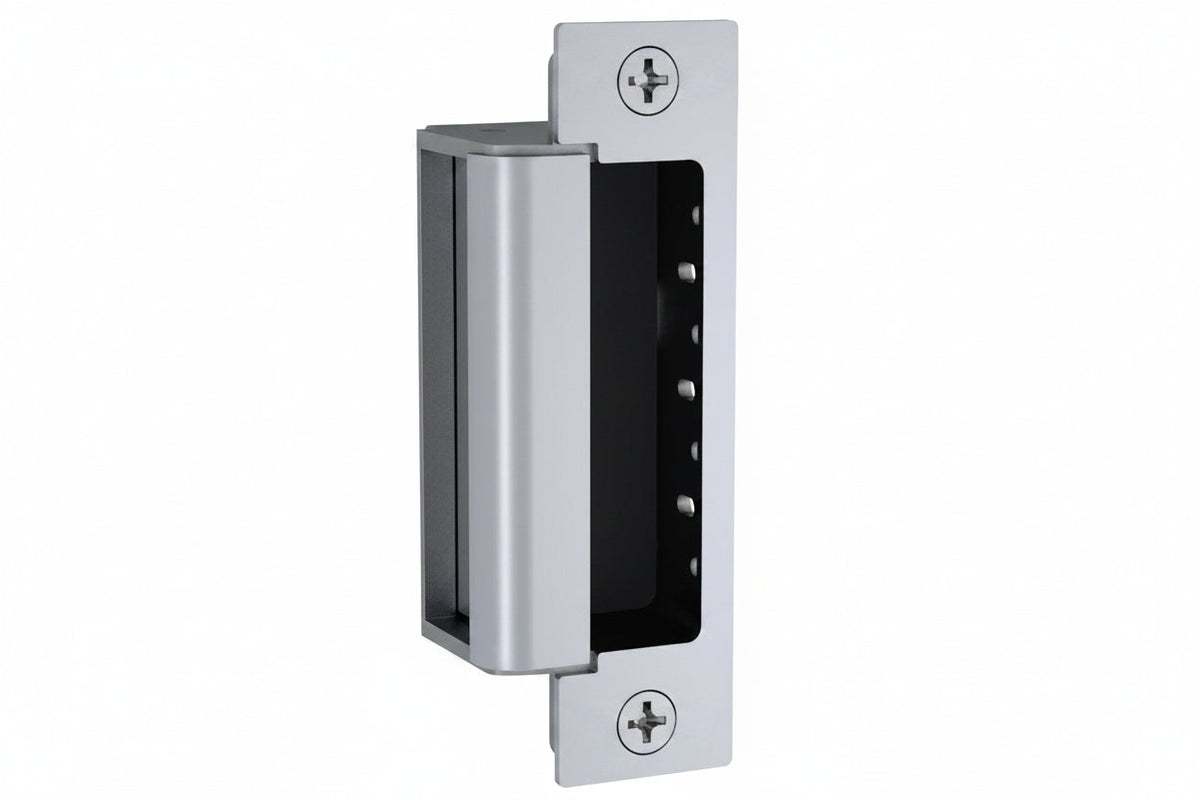

HES 1600-630 1600 Series Electric Strike Body Only, No Monitoring, Satin Stainless Steel

The HES 1600-630 is a 1600 Series electric strike from HES in satin stainless steel, supplied as the body only with no monitoring. It releases a door that uses a cylindrical lock for access control, and suits installers fitting metal door frames. It stands out for its tamper-resistant stainless construction, field-selectable fail safe/fail secure operation and dual-voltage input.

Key features

• Stainless steel construction is tamper resistant.
• Rated for 1500 lbs static strength, 70 ft-lbs dynamic strength and 1,000,000 cycles of endurance.
• Fail safe or fail secure operation can be selected in the field.
• Runs on 12 or 24 VDC/VAC and is non-handed, so one strike fits either door swing.
• Faceplates and accessories are interchangeable, and components can be replaced in the field.

Specifications

Brand: HES

Model: 1600-630

Product Series: 1600

Product Type: Electric Strike

Application/Usage: Door

Material: Stainless Steel

Color: Silver

Width: 1.25″

Height: 4.88″

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Door Handling: Non-Handed

Security Configuration: Fail Secure

Input Voltage: 12V DC

Power Source: AC Power

Holding Strength: 70lb

Features: Field Adjustable Integrated Shim

Certifications & Standards: UL Listed

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Confirm the fail safe or fail secure setting and the supply voltage before powering the strike, and make sure the power supply matches the selected voltage. Check the latch alignment with the door closed and use the integrated shim to fine-tune the fit.
