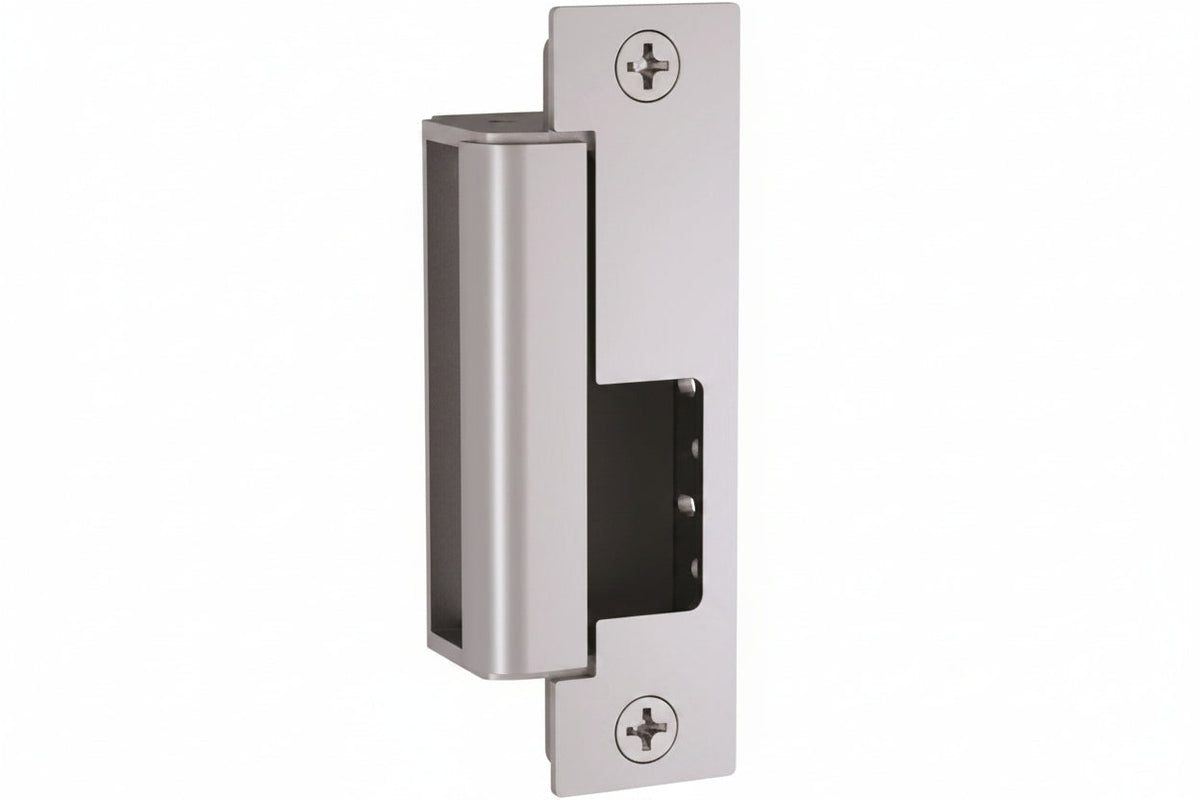

HES 1500C-630-LMS 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor and Strike Monitor, Satin Stainless Steel

The HES 1500C-630-LMS is a 1500 Series Complete Pac electric strike with a 1LB faceplate kit for latchbolts, plus lock monitor and strike monitor. It suits installers who need a heavy-duty, fail secure strike for metal frames. It is non-handed, and its horizontally adjustable keeper helps when the door and frame are slightly out of alignment.

Key features

• Tamper resistant, heavy-duty construction is rated for 1,000,000 cycles.
• It is UL 10C fire-rated for 1-1/2 hour double doors and conforms to CAN4-S104 (ULC-S104).
• It is ANSI/SDI 250.13 windstorm resistant.
• The keeper adjusts horizontally to make up for door and frame misalignment.
• It is non-handed and fail secure as standard.
• A plug-in connector is included on the strike.

Specifications

Brand: HES

Model: 1500C-630-LMS

Product Series: 1500

Product Type: Electric Strike

Application/Usage: Door

Certifications & Standards: UL Listed

Environmental Certification: RoHS

Color: Silver

Material: Stainless Steel

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Rim Exit

Features: Lock Status Monitoring

Security Configuration: Fail Secure

Door Handling: Non-Handed

Power Source: AC Power

Input Voltage: 12V DC

Input Current: 250mA

Holding Strength: 70lb

Keeper Depth: 1/2″ (310-2)

Width: 1.25″

Height: 4.88″

Country of Origin: US

Installation notes

Confirm the existing lock uses a 4-7/8″ strike plate and that the frame is metal before cutting. Set the keeper adjustment during mounting, then test the lock and strike monitor outputs along with the release before handing the door over.
