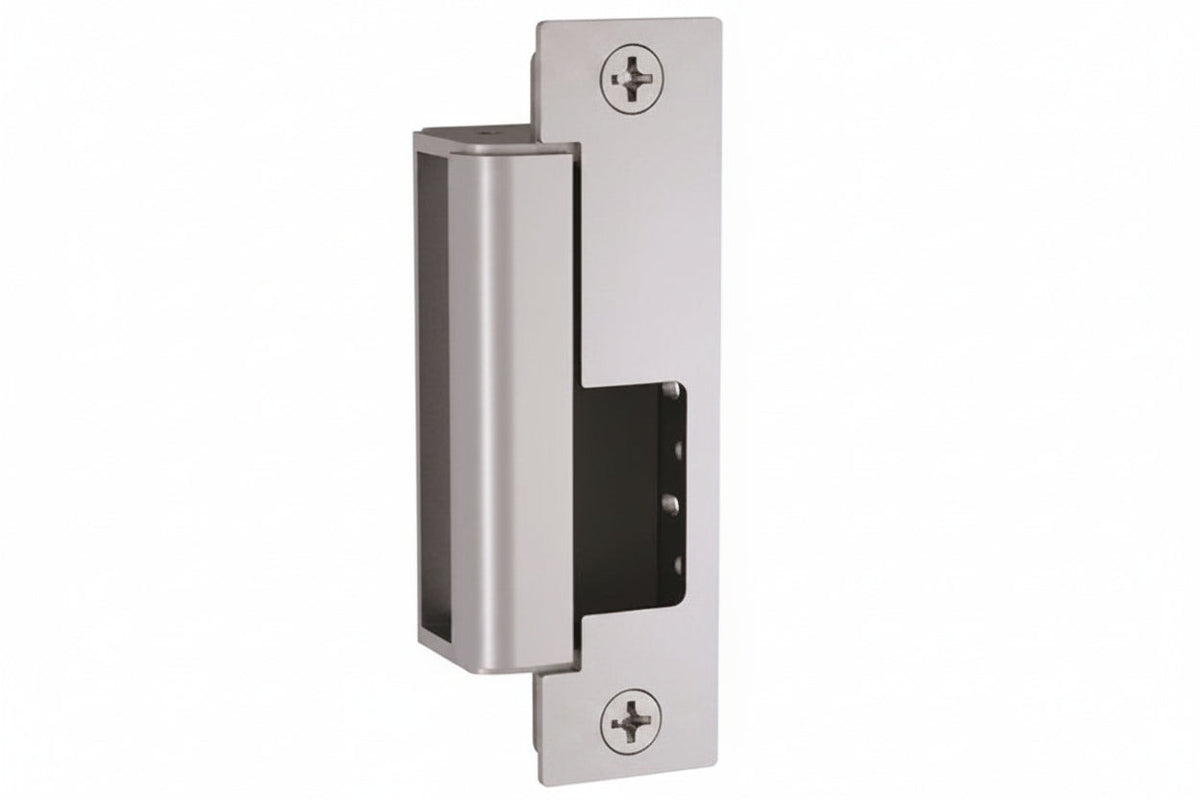

HES 1500C-630-LM 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor, Satin Stainless Steel

The HES 1500C-630-LM is a 1500 Series Complete Pac electric strike with a 1LB faceplate kit for latchbolts, finished in satin stainless steel. It controls door access in a fail-secure configuration and includes lock status monitoring, so it suits installers specifying a heavy-duty strike for metal-frame doors. It stands out for its Grade 1 rating, fire-door conformance and 1,000,000-cycle endurance.

Key features

• Stainless steel construction with a satin finish.
• Rated for 1,000,000 cycles and listed to ANSI/BHMA A156.31, Grade 1.
• UL 10C fire-rated for 1-1/2 hour double doors, and conformant to NFPA-252 and CAN4-S104 (ULC-S104).
• Windstorm resistant per ANSI/SDI 250.13 and approved under the Florida Building Code (TAS 201, 202, 203).
• UL 294 (6th Edition) listed.
• Non-handed, so one unit fits either door swing.

Specifications

Brand: HES

Model: 1500C-630-LM

Product series: 1500

Product type: Electric Strike

Application: Door

Security configuration: Fail Secure

Input voltage: 12V DC

Input current: 450mA

Power source: AC Power

Holding strength: 70lb

Features: Lock Status Monitoring

Compatible door frame type: Metal

Compatible door lock type: Rim Exit

Door handling: Non-Handed

Material: Stainless Steel

Finish: Satin

Color: Silver

Indoor/Outdoor: Outdoor

Length: 0.50″

Depth: 1.38″

Certifications and standards: UL Listed

Environmental certification: RoHS

Country of origin: US

Installation notes

Confirm the strike is cut in correctly and aligned with the latchbolt before wiring, so the door latches and releases smoothly. Match the supply to the strike's 12V DC input, and wire the lock status monitoring output to your access control or alarm panel and test it during commissioning.
