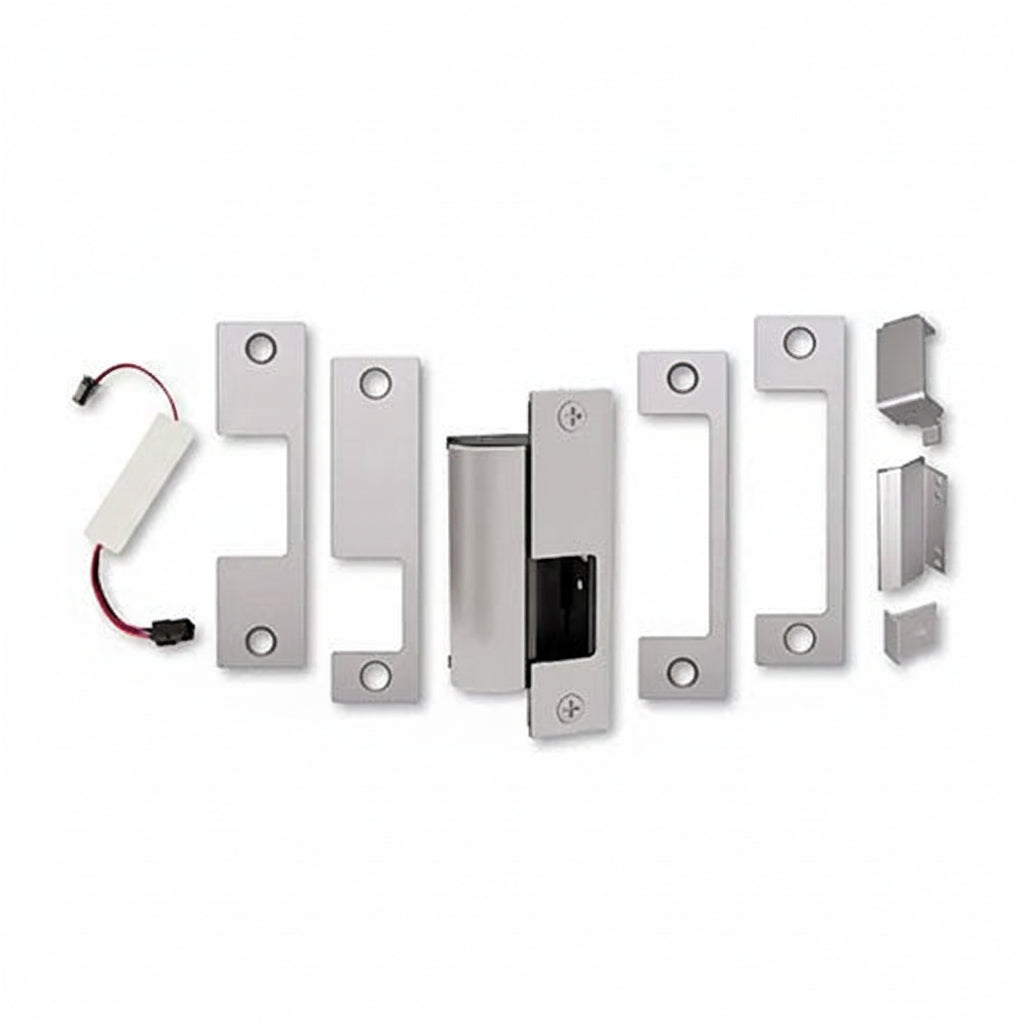

HES 1006CS-F-12/24D-630 1006 Series Complete Electric Strike with Fail Safe, Includes Smart Pac III, Faceplates (J, KD, KM, HM, ND) and Brackets, Satin Stainless Steel

The HES 1006CS-F-12/24D-630 is a complete 1006 Series electric strike in satin stainless steel, used to release a door electrically from a secured location. It suits installers fitting cylindrical locks on metal frames who want a tamper-resistant, non-handed strike with a deadbolt allowance of up to 1″. It stands out for its stainless construction, 2,500 lb static strength in fail secure operation, and 1,000,000-cycle endurance rating.

Key features

• Stainless steel construction with a tamper-resistant design.
• Fail secure as standard, rated at 2,500 lbs static strength and 350 ft-lbs. dynamic strength.
• Rated for 1,000,000 cycles of endurance.
• Non-handed, so one unit fits either door hand.
• Accommodates a deadbolt up to 1″ (25.4mm).
• Plug-in connector, plus full keeper shims for horizontal adjustment.

Specifications

Brand: HES

Model: 1006CS-F-12/24D-630

Product Series: 1006

Product Type: Electric Strike

Material: Stainless Steel

Color: Silver

Security Configuration: Fail Secure

Door Handling: Non-Handed

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Features: Adjustable Keeper

Input Voltage: 12V DC

Input Current: 250mA

Holding Strength: 3000lb

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Certifications & Standards: UL Listed

Country of Origin: US

Installation notes

Use the keeper shims to fine-tune horizontal alignment so the latch engages cleanly with the strike in place. Connect power through the plug-in connector and test the release with the door closed and under normal latch load before finishing the installation.
