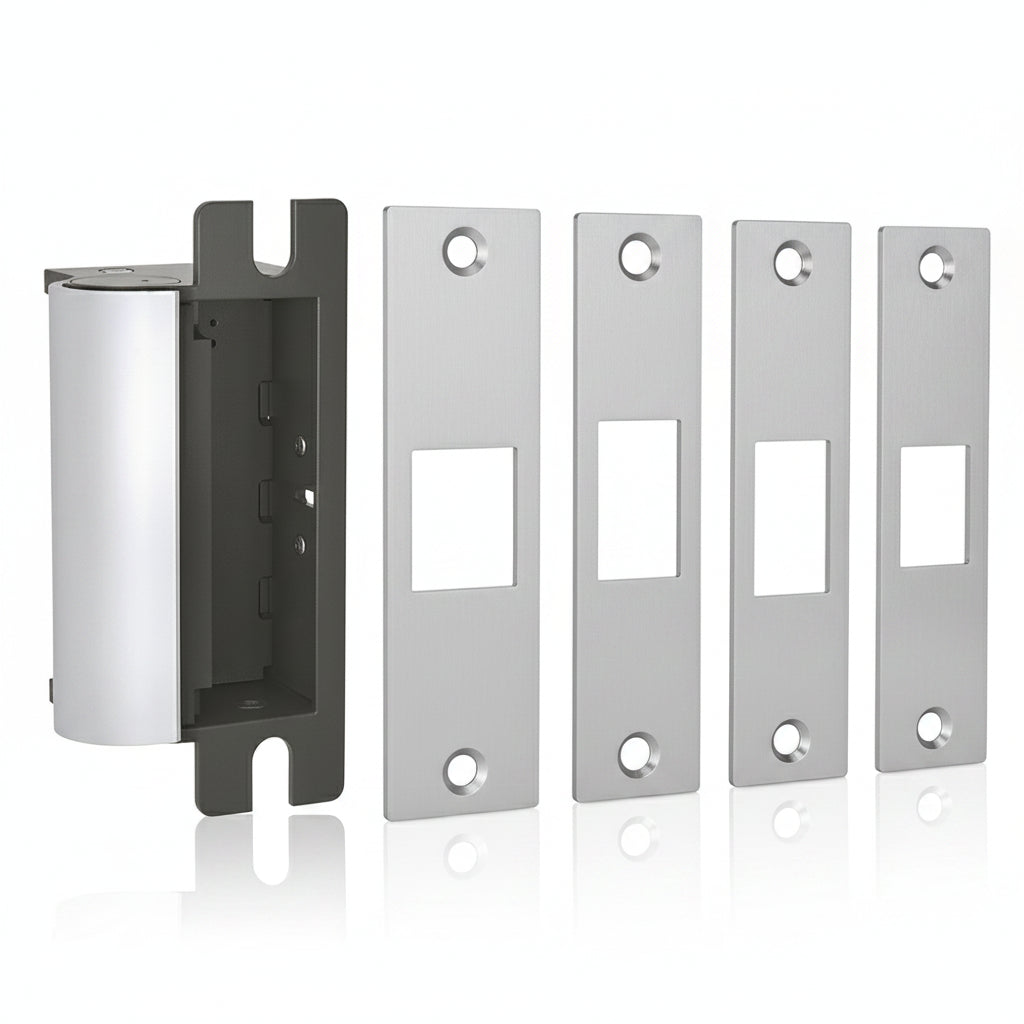

HES 1006CLB-630-LBM 1006 Series Complete Electric Strike with Latchbolt Monitor, includes Faceplates (J, K, KD, KM), Satin Stainless Steel

The HES 1006CLB-630-LBM is a complete 1006 Series electric strike with a latchbolt monitor, supplied with J, K, KD and KM faceplates in a satin stainless steel finish. It controls electrified access through a door with a cylindrical lock in a metal frame, and it suits installers and businesses specifying a tamper-resistant strike. It is non-handed and accommodates a deadbolt up to 1″ (25.4mm).

Key features

• Stainless steel construction with a tamper-resistant design.
• Rated for 2,500 lbs static strength and 350 ft-lbs dynamic strength in fail secure mode.
• Rated for 1,000,000 cycles of endurance.
• Fail secure as standard, and non-handed, so one unit suits either door swing.
• A plug-in connector simplifies the wiring connection.
• Full keeper shims allow horizontal adjustment of the keeper.

Specifications

Brand: HES

Model: 1006CLB-630-LBM

Product Series: 1006

Product Type: Electric Strike

Faceplates Included: J, K, KD, KM

Material: Stainless Steel

Color: Silver

Application/Usage: Door

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Door Handling: Non-Handed

Input Voltage: 12V DC

Input Current: 250mA

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Environmental Certification: RoHS

Country of Origin: US

Installation notes

Pick the faceplate that matches your frame prep, and use the keeper shims to set the horizontal alignment so the latchbolt moves freely. Check that the power supply matches the strike's input voltage and current, then test the strike and the latchbolt monitor signal before closing up the frame.
