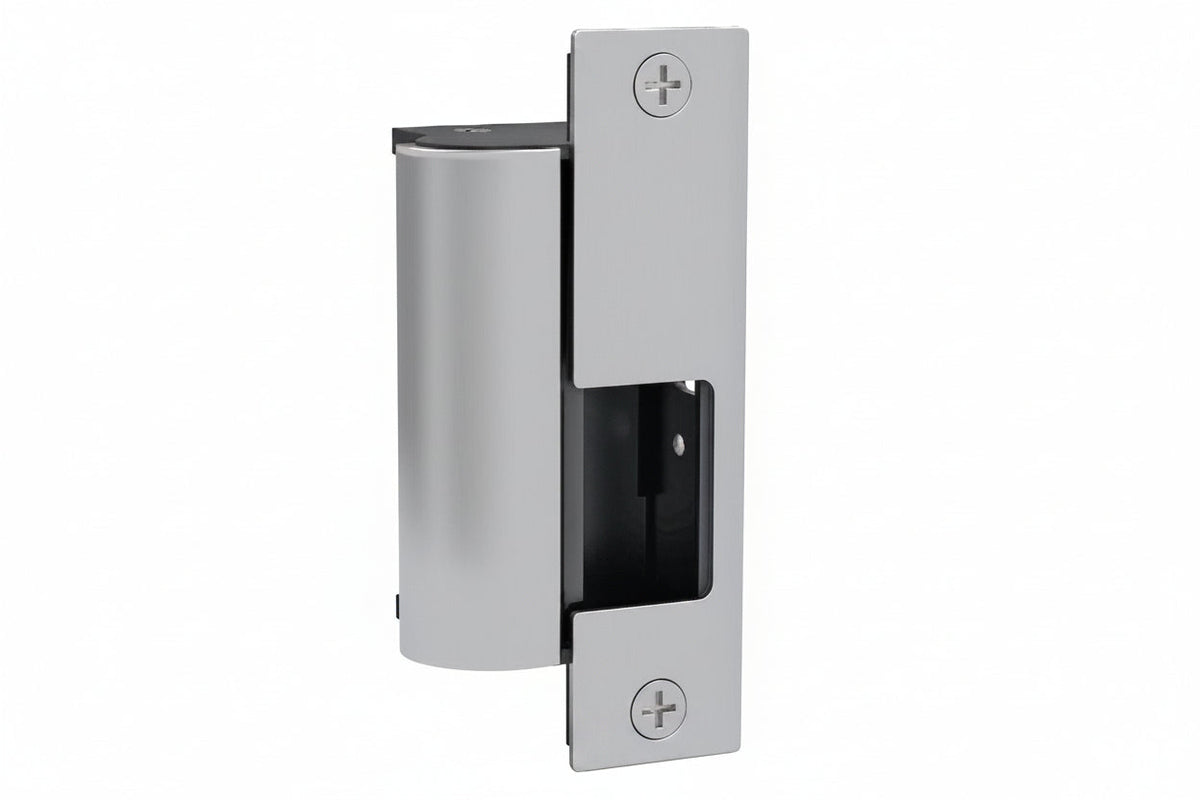

HES 1006-F-12/24D-630 1006 Series Universal Electric Strike Body, 12/24VDC, Fail Safe, Satin Stainless Steel

The HES 1006-F-12/24D-630 (model 10620422) is a 1006 Series universal electric strike body that releases a door for controlled entry. It suits installers and facility owners who need a strike for cylindrical locks on metal door frames. The stainless steel construction is tamper resistant, and the strike is rated for 1,000,000 cycles.

Key features

• The stainless steel body is tamper resistant.
• It is rated for 2,500 lbs. static strength and 350 ft-lbs. dynamic strength in fail secure operation.
• The strike is rated for 1,000,000 cycles.
• It is non-handed and accommodates a deadbolt up to 1″ (25.4mm).
• A plug-in connector is included for the wiring connection.
• Full keeper shims allow horizontal adjustment.

Specifications

Brand: HES

Model: 10620422

Product series: 1006

Product type: Electric Strike

Material: Stainless Steel

Color: Silver

Input voltage: 12V DC

Security configuration: Fail Secure

Door handling: Non-Handed

Compatible door frame type: Metal

Compatible door lock type: Cylindrical

Features: Adjustable Keeper

Holding strength: 2500lb

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Country of origin: US

Installation notes

Confirm the fail safe or fail secure configuration and the supply voltage against your access control power supply before wiring, since the listing data shows both. Use the keeper shims to fine-tune the alignment with the latch or deadbolt, then test the door operation before putting it into service.
