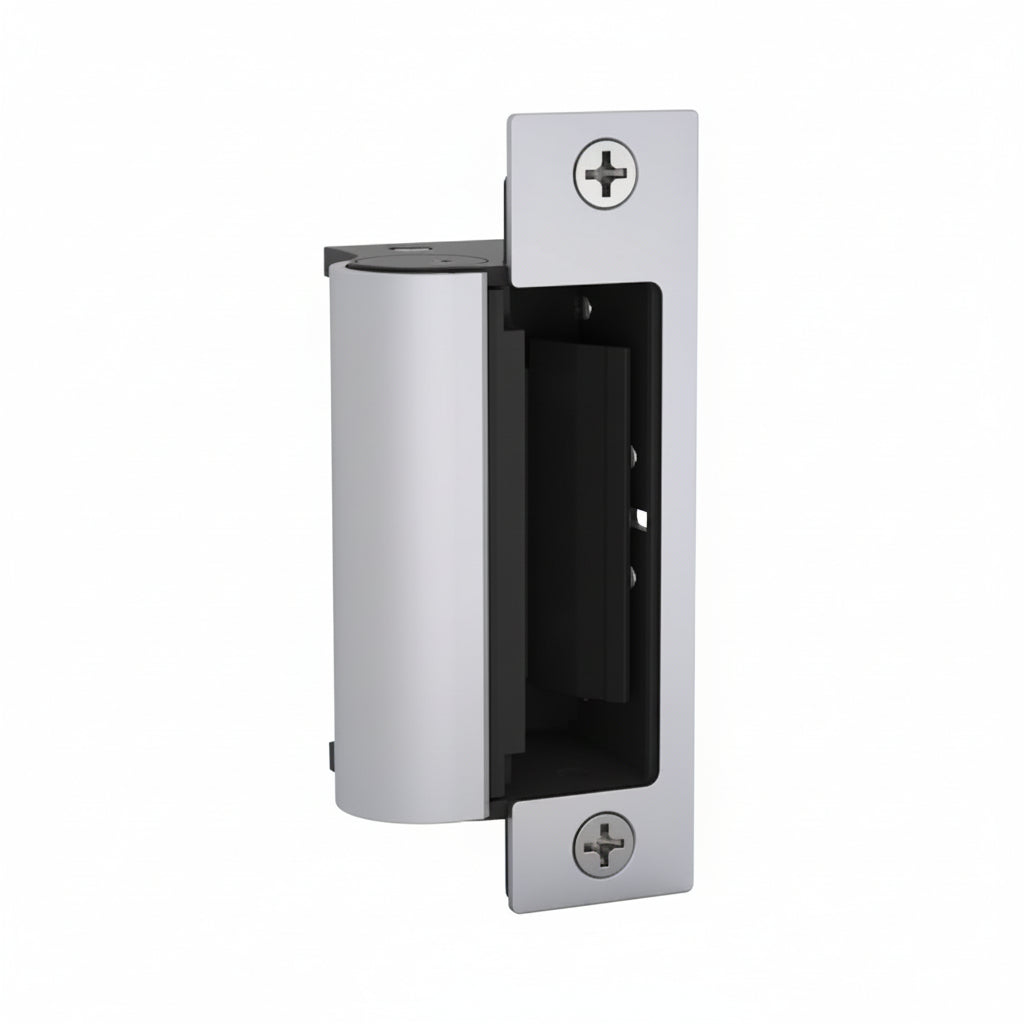

HES 1006-12/24D-630-LBM 1006 Series Universal Electric Strike Body with Latchbolt Monitor, 12/24VDC, Fail Secure, Satin Stainless Steel

The HES 1006-12/24D-630-LBM (model 10620408) is a universal electric strike body from the 1006 Series, built for cylindrical locks on metal door frames. It releases the door for controlled access and includes a latchbolt monitor. This fail secure strike suits installers and businesses that need a tamper-resistant, non-handed strike, and its stainless steel construction and 2,500 lb. static strength stand out.

Key features

• Stainless steel construction with a tamper-resistant design.
• Rated for 2,500 lbs. static strength and 350 lbs. dynamic strength in fail secure mode.
• Endurance rating of 1,000,000 cycles.
• Fail secure as standard, and non-handed so one unit fits either door swing.
• Accommodates a deadbolt up to 1″ (25.4mm).
• Plug-in connector, plus full keeper shims for horizontal adjustment.

Specifications

Brand: HES

Model: 10620408

Product Series: 1006

Product Type: Electric Strike

Security Configuration: Fail Secure

Input Voltage: 12V DC

Input Current: 250mA

Holding Strength: 2500lb

Material: Stainless Steel

Color: Silver

Compatible Door Frame Type: Metal

Compatible Door Lock Type: Cylindrical

Features: Adjustable Keeper

Door Handling: Non-Handed

Height: 4.87″

Width: 1.68″

Depth: 2.06″

Country of Origin: US

Installation notes

Confirm the door frame is metal and the lock is cylindrical before cutting the frame, and use the keeper shims to line up the keeper with the latchbolt. Check that your power supply matches the strike's voltage and current, then test the strike and latchbolt monitor with the door closed before handing the system over.
