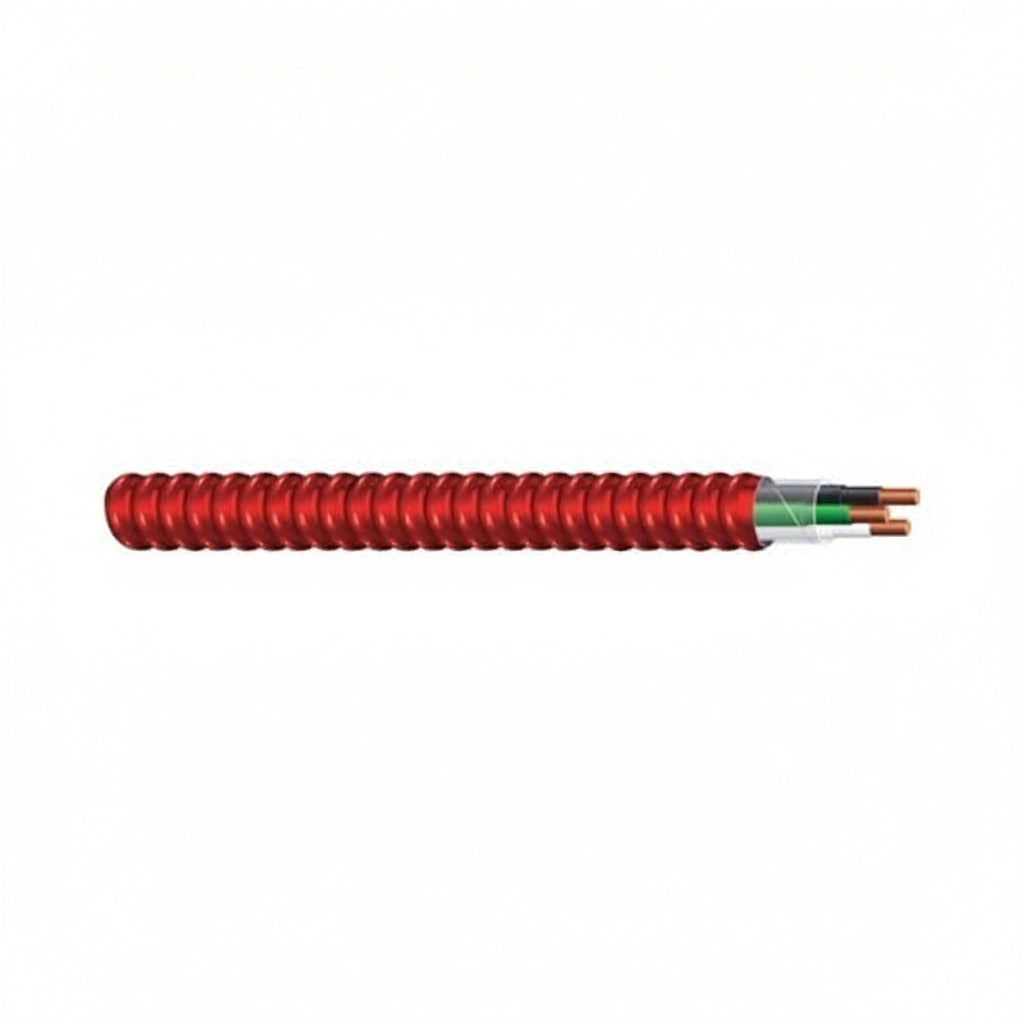

Genesis 55468703 18/4 Ground AlumArmor Cable, Red, 1000'

The Genesis 55468703 is an 18/4 AlumArmor fire alarm cable with ground, in red and supplied at 1000'. It carries power and signal to fire alarm devices where the run needs the mechanical protection of an aluminum armored jacket. It suits installers and contractors pulling fire alarm circuits through areas where physical protection matters.

Key features

• Solid bare copper conductors in 18AWG.
• Four conductors plus a ground, per the 18/4 designation.
• Aluminum armor jacket protects the cable and carries the MC trade designation.
• Rated for 600VAC.
• Red jacket color makes the fire alarm circuit easy to identify.

Specifications

Brand: Genesis

Model: 55468703

Product Type: Fire Alarm Cables

Product Line: Red Alert

Length: 1000'

Color: Red

Wire Gauge: 18AWG

Conductors: 4C with ground

Conductor Material: Bare copper

Conductor Design: Solid

Insulation Material: Nylon

Jacket Material: Aluminum

Trade Designation: MC

Armored: Yes

Shielding: No

Voltage: 600VAC

Environmental Certification: RoHS

TAA Compliant: Yes

Installation notes

Terminate the armor with connectors made for MC cable, and trim it carefully so the conductor insulation is not nicked. Because the cable is unshielded, plan the route with other circuits in mind, and follow local code and the authority having jurisdiction for support and routing.
