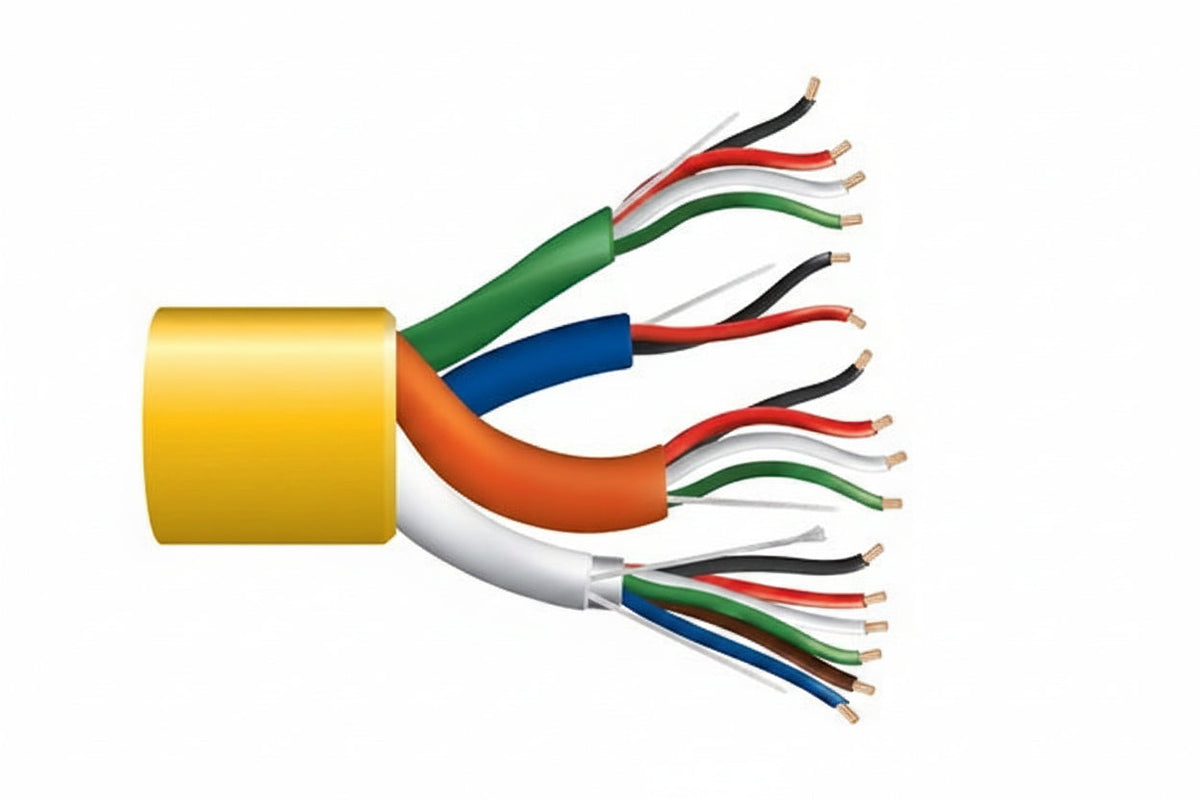

Genesis 31961002 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Yellow

The Genesis 31961002 is a 1000' (304.8 m) reel of yellow, plenum-rated (CMP, FT6) composite access control cable that combines 22/6 stranded shielded, 22/4 stranded, 22/2 stranded and 18/4 stranded cable in one jacket. It lets installers run reader, lock and power wiring for a door in a single pull, and it suits indoor commercial installs. The shielded card reader component and the built-in rip cord are the details that stand out.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• The card reader component is shielded.
• A rip cord makes stripping and removing the jacket easier.
• Countdown length markings help you track how much cable you have used and how much remains.
• The cable is REACH/RoHS compliant and rated for 300V and -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 31961002

Product type: Security & Control Cables

Configuration: 22/6 stranded shielded + 22/4 stranded + 22/2 stranded + 18/4 stranded

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Color: Yellow

Number of conductors: 16

American wire gauge: 22AWG

Conductor material: Bare copper

Solid or stranded: Stranded

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Indoor/outdoor: Indoor

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 19.50 lb

Installation notes

Use the rip cord to open the jacket cleanly, and terminate the shield of the card reader component according to the reader manufacturer's instructions. Because this cable is indoor-only and unarmored, keep it out of exposed or outdoor runs and protect it where it could be damaged.
