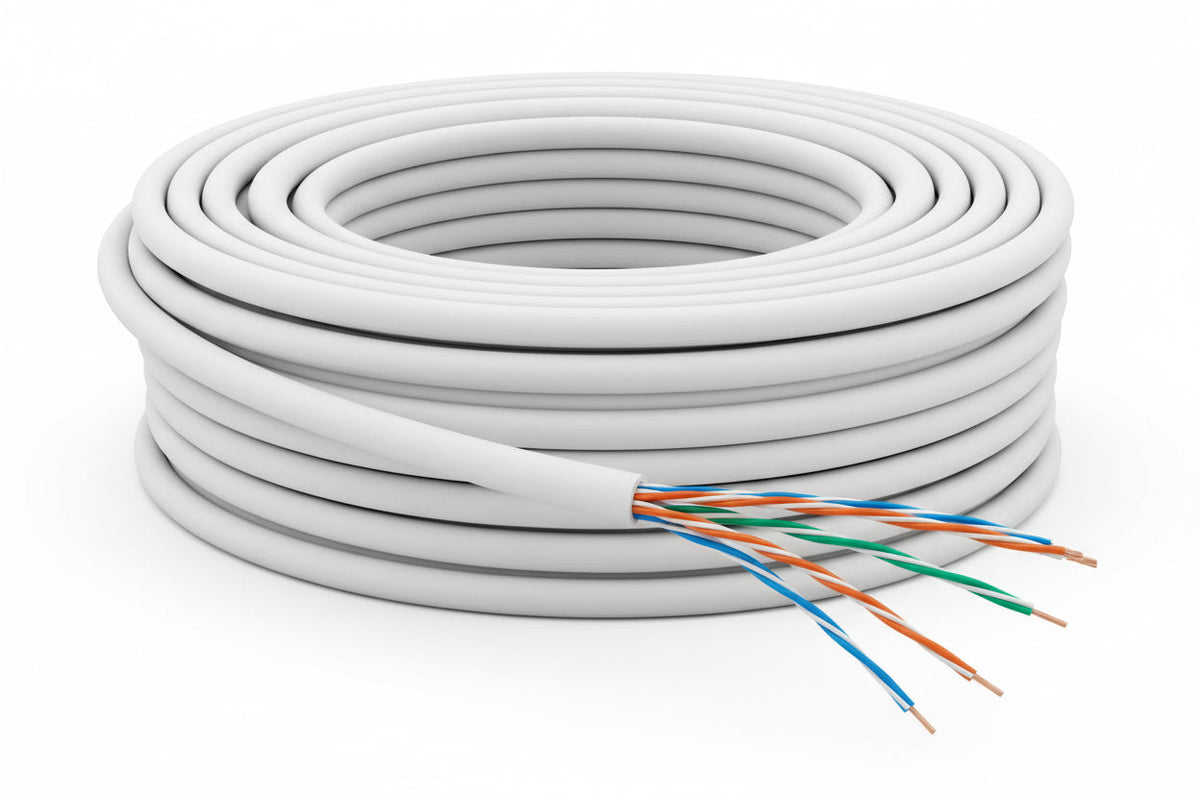

Genesis 63601101 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Riser, CMR, 1000' (304.8 m) Pull Box, White

The Genesis 63601101 is a 23 AWG, 4-pair Cat 6 unshielded (U/UTP) networking cable in white, supplied as a 1000' (304.8 m) pull box. It is riser-rated (CMR) and meant for indoor runs, making it a fit for installers pulling structured cabling through a building. Solid bare copper conductors and a countdown-marked jacket are what stand out.

Key features

• Bare copper conductors carry the signal well and keep voltage drop low.
• A rip cord under the jacket makes stripping and removal quicker.
• Countdown length markings show how much cable you have used and how much is left.
• The jacket is PVC, and the cable is rated for sunlight resistance (UV).
• It is rated for 300V and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63601101

Product type: Cat 6 networking cable (Ethernet cable)

Rating: Riser, CMR

Length and packaging: 1000' (304.8 m) pull box

Color: White

Indoor/Outdoor: Indoor

Shielding: No (U/UTP)

Number of pairs: 4

Number of conductors: 8

American wire gauge: 23 AWG

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: PE

Impedance: 100 Ohm

Armored: No

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 25.00 lb

Installation notes

Pull the cable gently from the box and avoid sharp bends or kinks, which can hurt performance. Use the countdown markings to cut each run to length, and keep the cable away from sources of electrical interference where you can.
