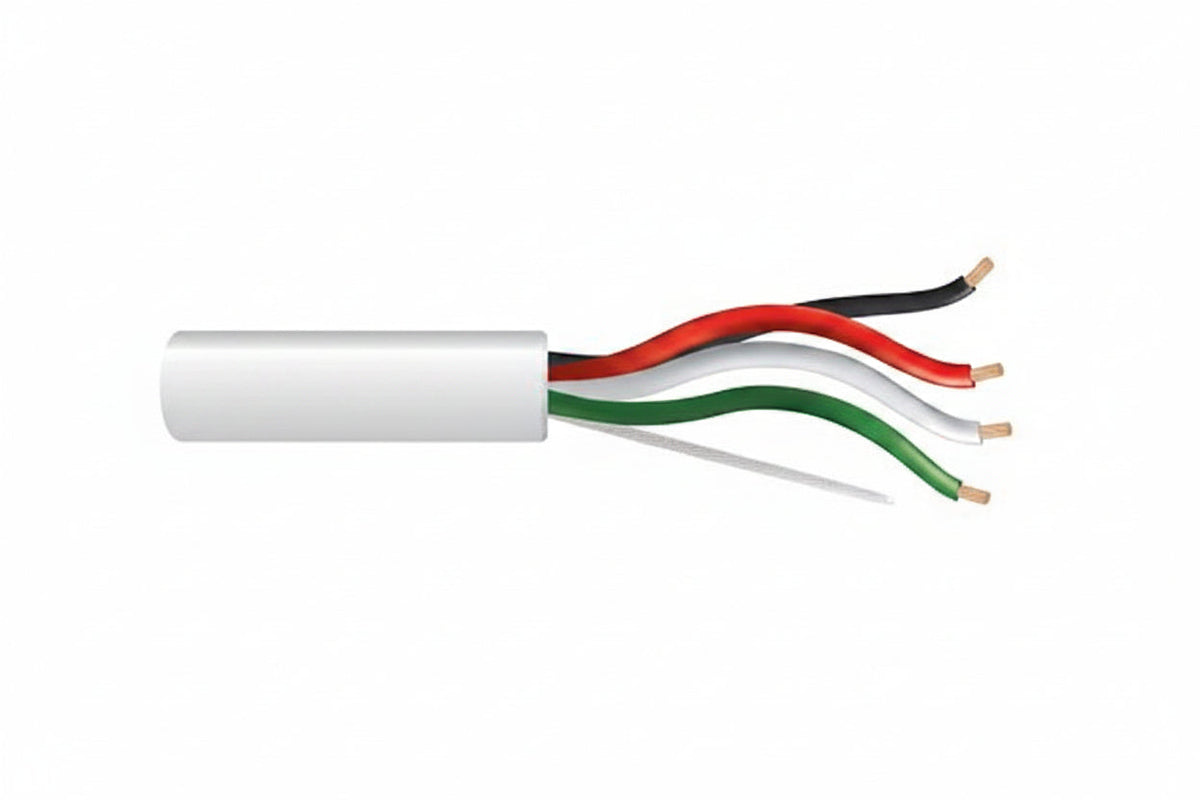

Genesis 31155512 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 31155512 is an 18 AWG, 4-conductor stranded unshielded cable in a plenum-rated (CMP, FT6) jacket, sold as a 500' (152.4 m) pull box in natural. It is built for indoor control, fire and security wiring where plenum-space rating is required. Bare copper conductors and countdown length markings make it a practical choice for installers who want low voltage drop and easy tracking of what is left on the run.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you see how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31155512

Product name: 3115-55-12 Control Cable

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Color: Natural (listed as Clear in the specs)

Gauge: 18 AWG

Core/Cladding Diameter: 18/4

Number of conductors: 4

Solid or stranded: Stranded

Conductor material: Bare Copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 14.40 lb

Installation notes

This cable is for indoor use only and is unshielded, so route it away from sources of electrical noise where practical. Use the pull box to feed cable cleanly without kinking, and check the countdown markings to cut runs to length with minimal waste.
