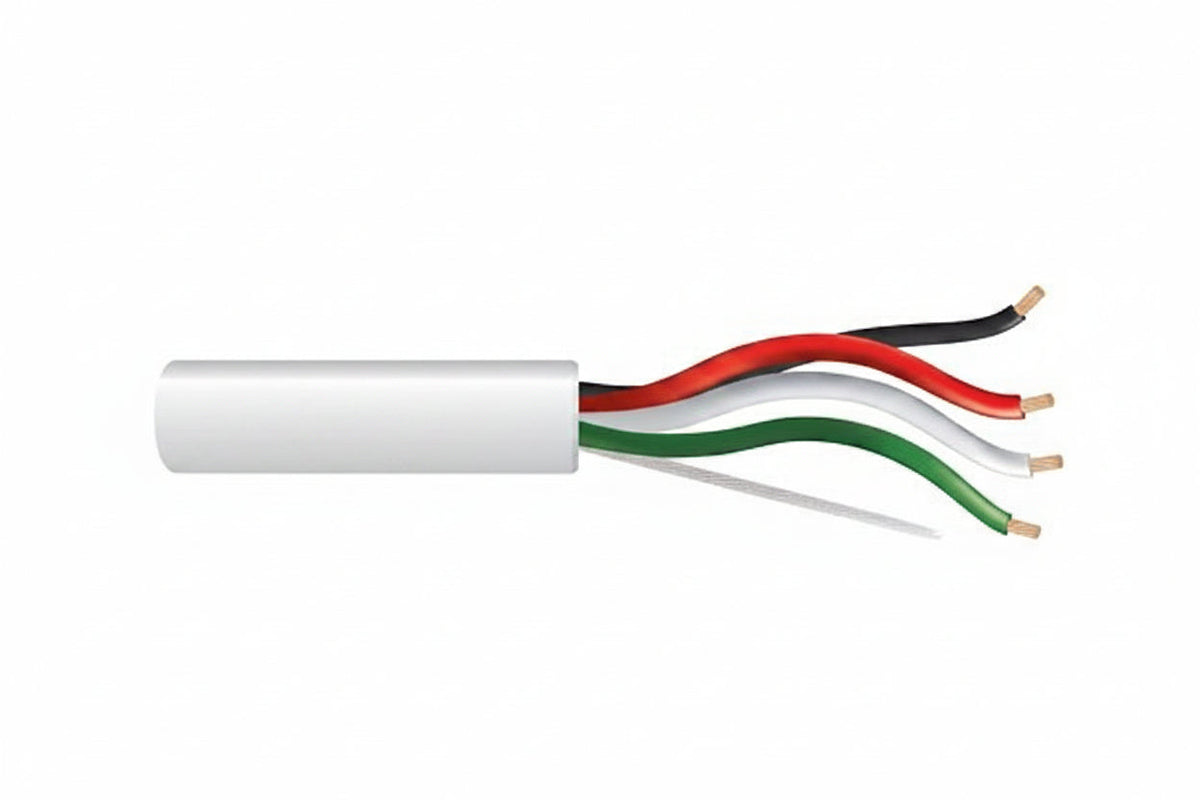

Genesis 31151112 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 31151112 is an 18 AWG, 4-conductor stranded, unshielded plenum cable (CMP, FT6) supplied on a 1000' (304.8 m) pull box in natural. It suits installers running control and security wiring in indoor spaces that call for plenum-rated cable. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easier to work with on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much remains.
• Rated for 300V and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31151112

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Natural

Gauge: 18 AWG

Core/Cladding Diameter: 18/4

Number of conductors: 4

Conductor material: Bare Copper

Solid or stranded: Stranded

Insulation material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 31.50 lb

Installation notes

Use the rip cord to open the jacket cleanly, and keep the countdown markings in view so you can plan each run and avoid running short. As an unshielded indoor cable, route it away from sources of electrical interference and keep it within the temperature range listed above.
