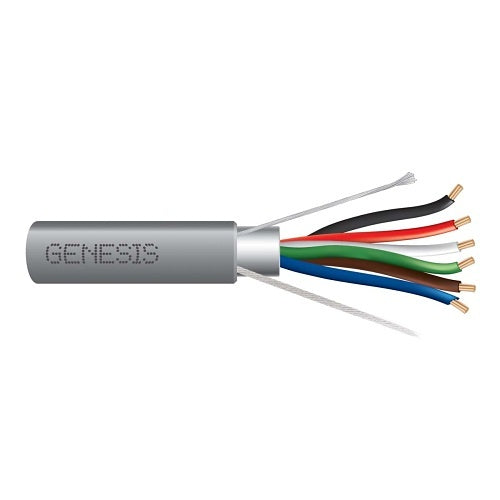

Genesis 22065509 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray

The Genesis 22065509 is a 500' (152.4 m) pull box of gray, stranded, shielded 22/6 riser cable (CMR, FT4) for indoor security, controls and other low-voltage runs. It uses six stranded bare copper conductors under a foil shield and a PVC jacket, so it suits installers who need a shielded multiconductor cable for riser runs. A rip cord for jacket removal and countdown length markings make it easier to work with on a long pull.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation surrounds the conductors, with a foil shield over all of them.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much remains.
• The cable is rated for 300 volts and for -20 °C to 75 °C, and it is UV (sunlight) resistant rated.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 22065509

Type: Riser Cable (CMR, FT4)

Gauge/Conductors: 22/6, 22 AWG, 6 conductors

Construction: Stranded

Conductor Material: Bare Copper

Insulation Material: Polypropylene (PP)

Shielding: Yes, foil shield

Jacket: PVC

Armored: No

Color: Gray

Length/Packaging: 500' (152.4 m) Pull Box

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 10.70 lb

Installation notes

Pull cable from the box without kinking it, and use the countdown markings to plan cut lengths before you commit to a run. Terminate the foil shield consistently at the correct end of the run, following the requirements of the equipment you are connecting.
