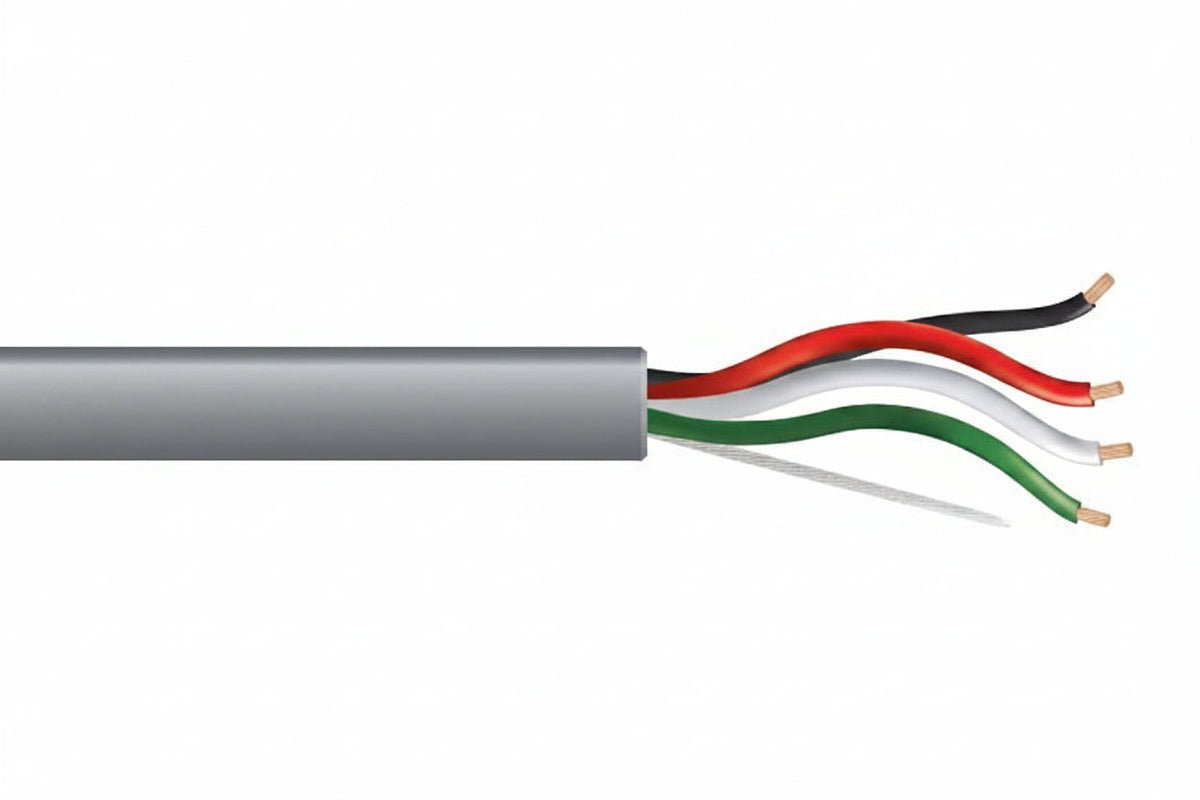

Genesis 21155509 18/4 Stranded Unshielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray

The Genesis 21155509 is an 18/4 stranded, unshielded riser cable (CMR, FT4) that comes on a 500' (152.4 m) pull box in gray. It suits installers running low-voltage security and control wiring indoors, where a riser-rated jacket is called for. Bare copper conductors and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings show how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21155509

Product Type: Security & Control Cables

Rating: Riser, CMR, FT4

Length/Packaging: 500' (152.4 m) Pull Box

Color: Gray

American Wire Gauge: 18AWG

Number of Conductors: 4

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: PP

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 Volts

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Installation notes

Pull the cable from the box without kinks or sharp bends, and use the countdown markings to cut runs to length and keep track of what remains. Because it is unshielded, route it away from sources of electrical interference where possible, and confirm the run suits the application before pulling.
