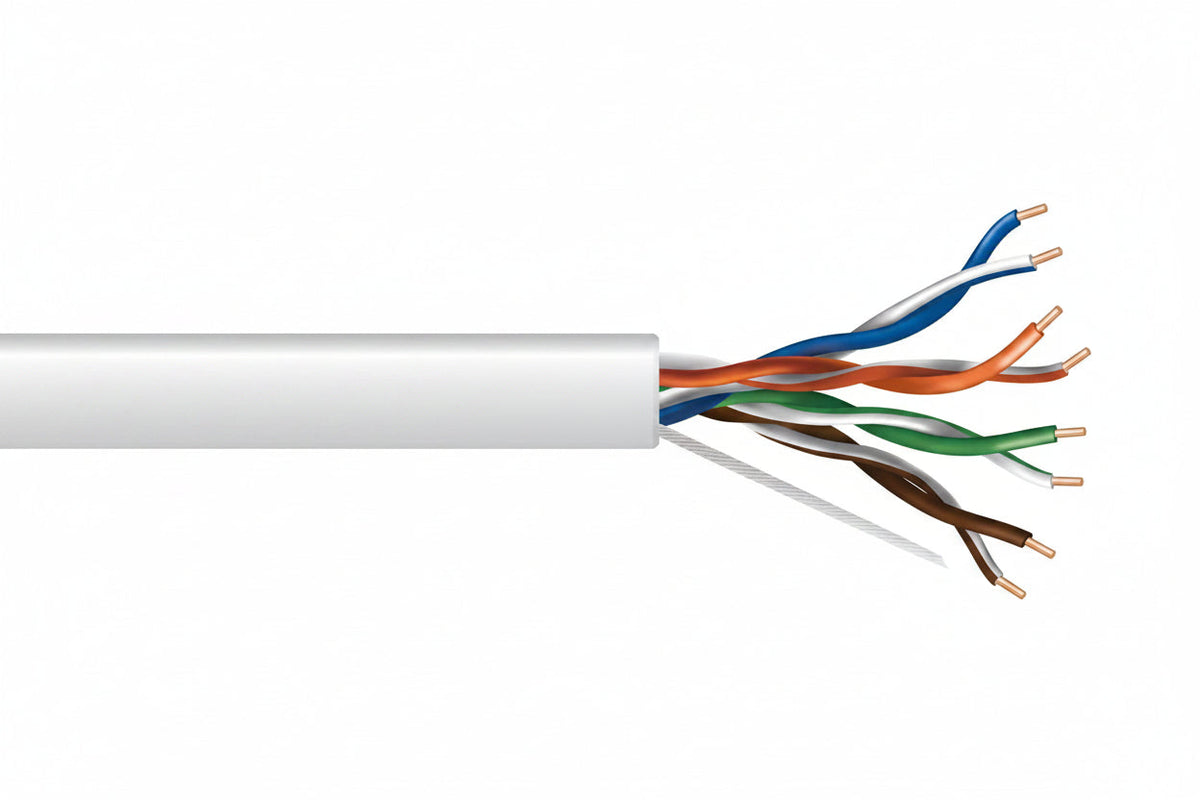

Genesis 63611101 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, White

The Genesis 63611101 is a 1000' (304.8 m) pull box of 23 AWG, 4-pair Cat 6 unshielded (U/UTP) networking cable in white, rated plenum (CMP, FT6). It is built for indoor structured cabling runs, including air-handling spaces, and suits installers pulling long runs of solid bare copper Ethernet cable. Countdown length markings and a rip cord make it easier to track usage and strip the jacket.

Key features

• Bare copper conductors carry the signal well and keep voltage drop low.
• FEP insulation surrounds the conductors, under a PVC jacket.
• A rip cord lets you strip and remove the jacket quickly.
• Countdown length markings show how much cable you have used and how much is left.
• The cable is rated for 300V and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63611101

Category: Cat 6

Rating: Plenum, CMP, FT6

Length/Packaging: 1000' (304.8 m) pull box

Color: White

Shielding: No (U/UTP)

Pairs: 4

Number of Conductors: 8

American Wire Gauge: 23 AWG

Solid or Stranded: Solid

Conductor Material: Bare Copper

Insulation Material: FEP

Impedance: 100 Ohm

Indoor/Outdoor: Indoor

Armored: No

Environmental Certification: RoHS

TAA Compliant: No

Country of Origin: VN

Weight: 31.80 lb

Installation notes

Pull the cable from the box without kinks and keep bends gentle so the pair geometry stays intact. Test each run after termination to confirm it performs as expected before you close up the ceiling.
