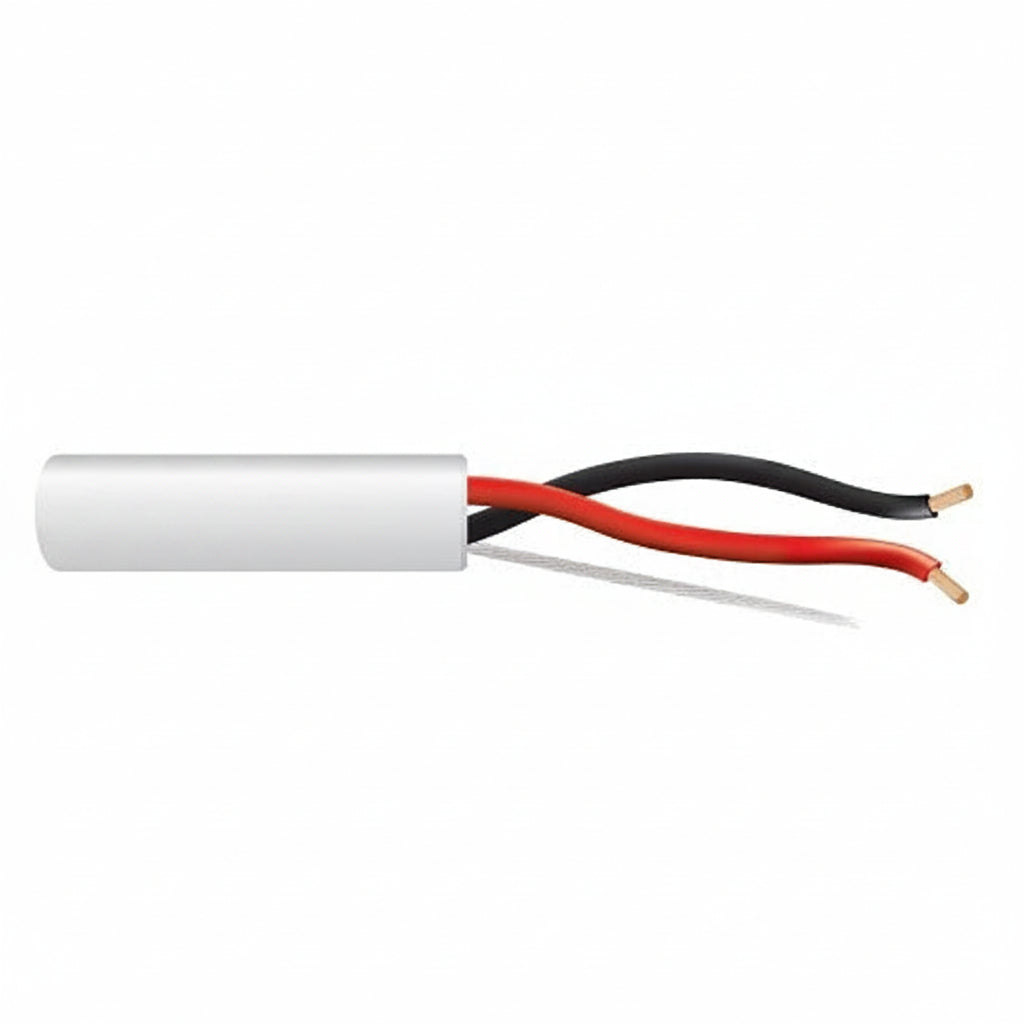

Genesis 52545001 12/2 Stranded Unshielded Speaker Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, White

The Genesis 52545001 is a 12 AWG, 2-conductor stranded speaker cable with a riser (CMR, FT4) rating, supplied on a 500' (152.4 m) reel in white. It is an unshielded indoor cable suited to installers and businesses running dependable speaker and audio wiring. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it practical to pull and strip on the job.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track usage and remaining cable.
• Rated for 300 volts and for -20 °C to 60 °C, with sunlight (UV) resistance.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 52545001

Product type: Riser Speaker Cable

Gauge: 12 AWG

Conductors: 2 (1 pair)

Conductor type: Stranded

Conductor material: Bare copper

Insulation: Polypropylene (PP)

Jacket: PVC

Rating: Riser, CMR, FT4

Shielding: No

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 60 °C

Indoor/Outdoor: Indoor

Color: White

Length and packaging: 500' (152.4 m) reel

Weight: 26.50 lb

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Use the countdown markings to plan each run and cut to length with a little slack at both ends. Keep speaker runs separated from mains power wiring where possible, and confirm the cable's rating suits the pathway before pulling it through risers.
