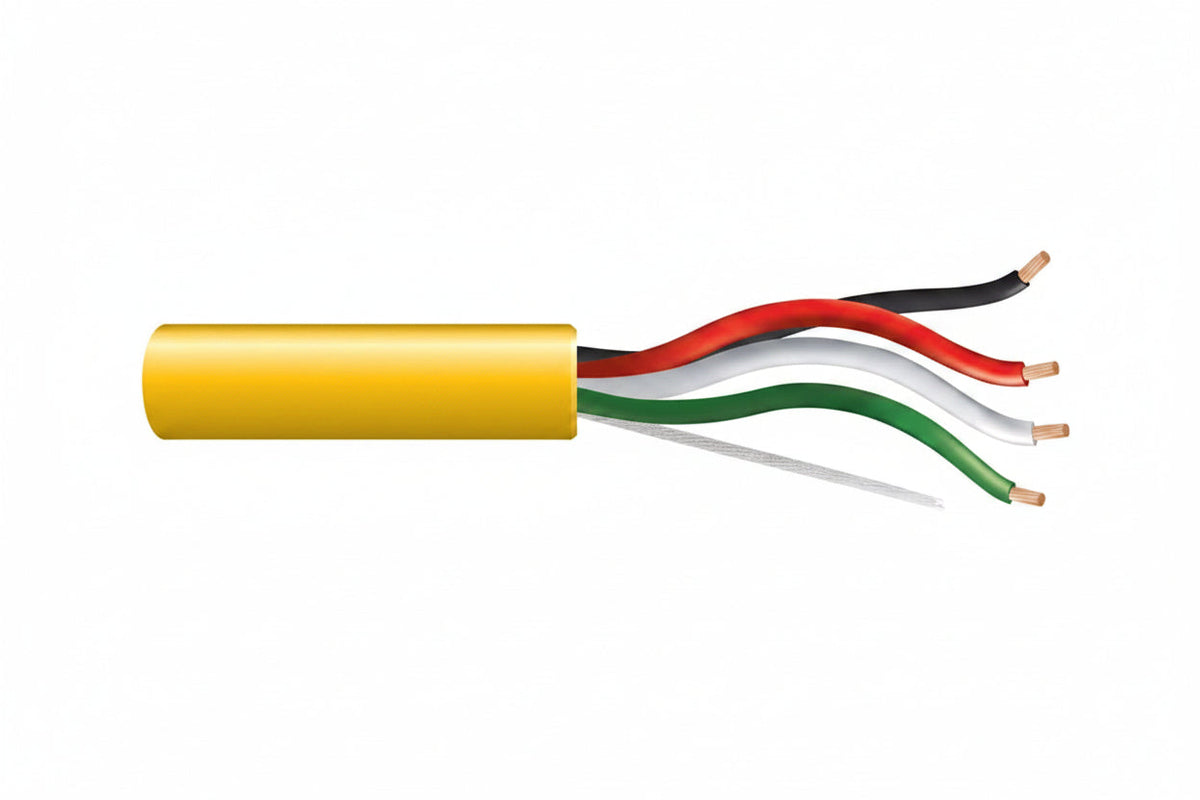

Genesis 52535002 14/4 Stranded Unshielded Speaker Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Yellow

The Genesis 52535002 is a 500-foot reel of 14 AWG, 4-conductor stranded unshielded speaker cable in yellow, with a riser (CMR) FT4 rating. It handles indoor speaker and audio runs, and suits installers and businesses wiring multi-speaker systems. Bare copper conductors keep voltage drop low, and countdown length markings make it easy to track how much cable is left on the reel.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show usage and remaining cable at a glance.
• The cable is rated for 300 volts and for temperatures from -20 °C to 60 °C.
• It is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 52535002

Product type: Unshielded Speaker Cable

Gauge/Conductors: 14/4

American Wire Gauge: 14 AWG

Number of conductors: 4

Conductor type: Stranded

Conductor material: Bare Copper

Insulation material: Polypropylene (PP)

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 60 °C

Length/packaging: 500′ (152.4 m) reel

Color: Yellow

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 32.90 lb

Installation notes

Use the rip cord to open the jacket cleanly and keep the stranded conductors intact at each termination. Pull the cable without exceeding a gentle bend radius, and keep speaker runs separated from power wiring where practical.
