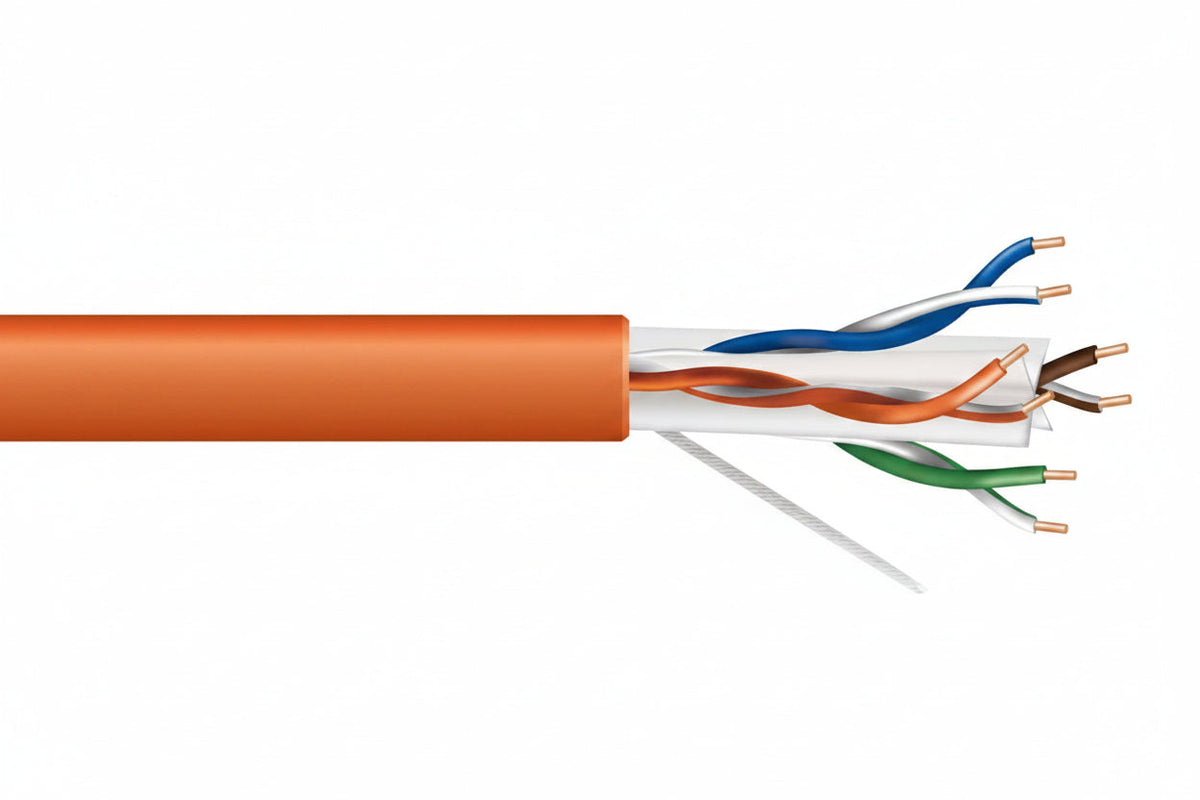

Genesis 51021103 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Orange

The Genesis 51021103 is a 1,000' (304.8 m) pull box of orange Category 6 Plus plenum (CMP, FT6) unshielded twisted-pair cable with 4 pairs of solid 23 AWG bare copper conductors. It handles voice and data wiring runs in indoor spaces, and suits installers and businesses that need plenum-rated Cat 6 cabling. The FEP insulation, rip cord and countdown length markings make it easier to pull, strip and track on the job.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 51021103

Category: Cat 6 Plus, U/UTP (unshielded)

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Orange

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor type: Solid

American wire gauge: 23 AWG

Insulation material: FEP

Impedance: 100 Ohm

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 28.20 lb

Installation notes

This is an indoor-only cable, so keep it inside the building and follow the local code for plenum spaces. Pull it without kinking or over-tightening bundle ties, and test each run after termination.
