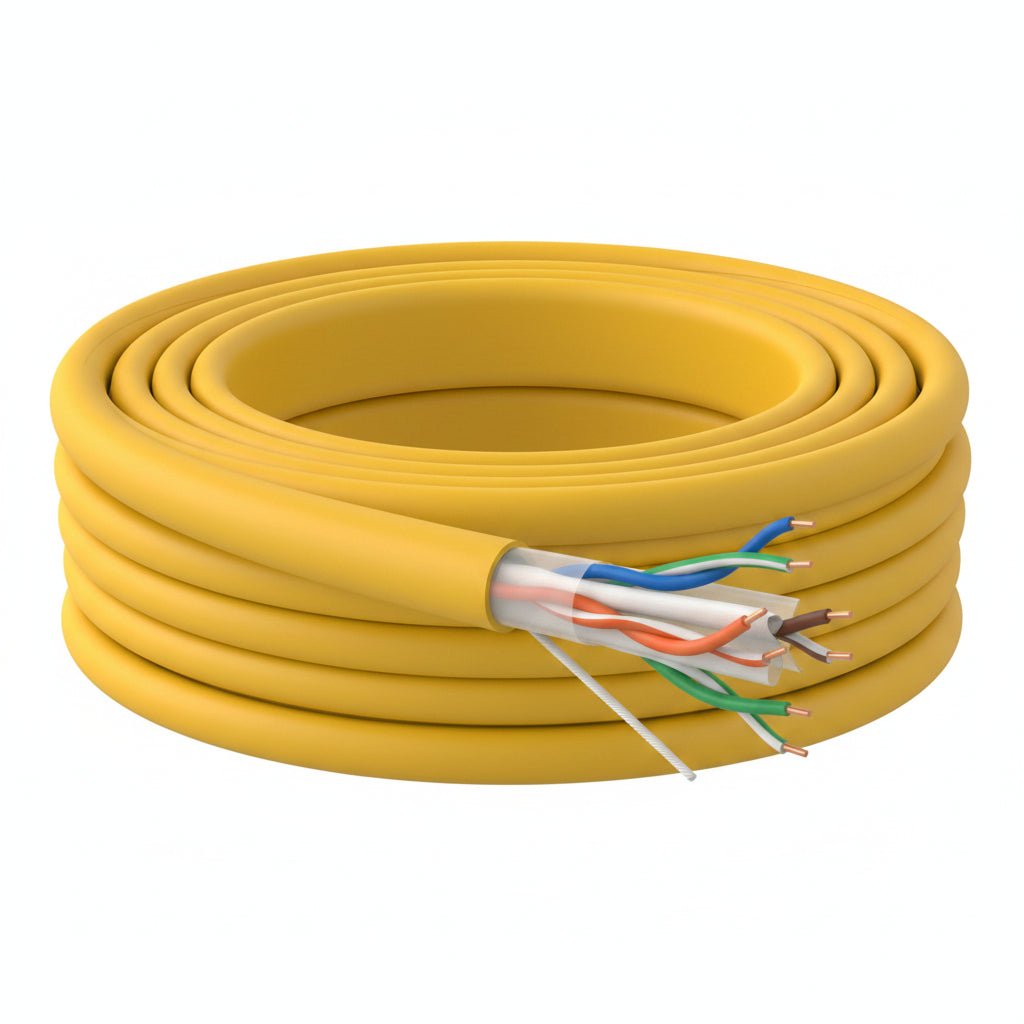

Genesis 51021102 23/4-Pair Cat 6 Plus Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Yellow

The Genesis 51021102 is a 1000' (304.8 m) pull box of yellow Cat 6 Plus plenum (CMP, FT6) unshielded twisted-pair cable, built for voice and data wiring. It uses 4 pairs of solid 23 AWG bare copper conductors with FEP insulation and a pair-separator spline. It suits installers pulling indoor runs where a plenum-rated cable is required, and the countdown length markings make it easy to track how much cable is left.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• FEP insulation covers each conductor.
• A rip cord makes jacket stripping and removal quicker.
• Countdown length markings show usage and remaining cable at a glance.
• The cable is rated for 300 Volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 51021102

Category: Cat 6 Plus, U/UTP (unshielded)

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Yellow

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare copper

Conductor type: Solid

American Wire Gauge: 23 AWG

Insulation material: FEP

Impedance: 100 Ohm

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 28.20 lb

Installation notes

This is an indoor cable, so keep it inside the building and follow local code for where plenum-rated cable is required. Pull gently from the box, avoid tight bends and kinks, and use the rip cord to open the jacket cleanly at termination.
