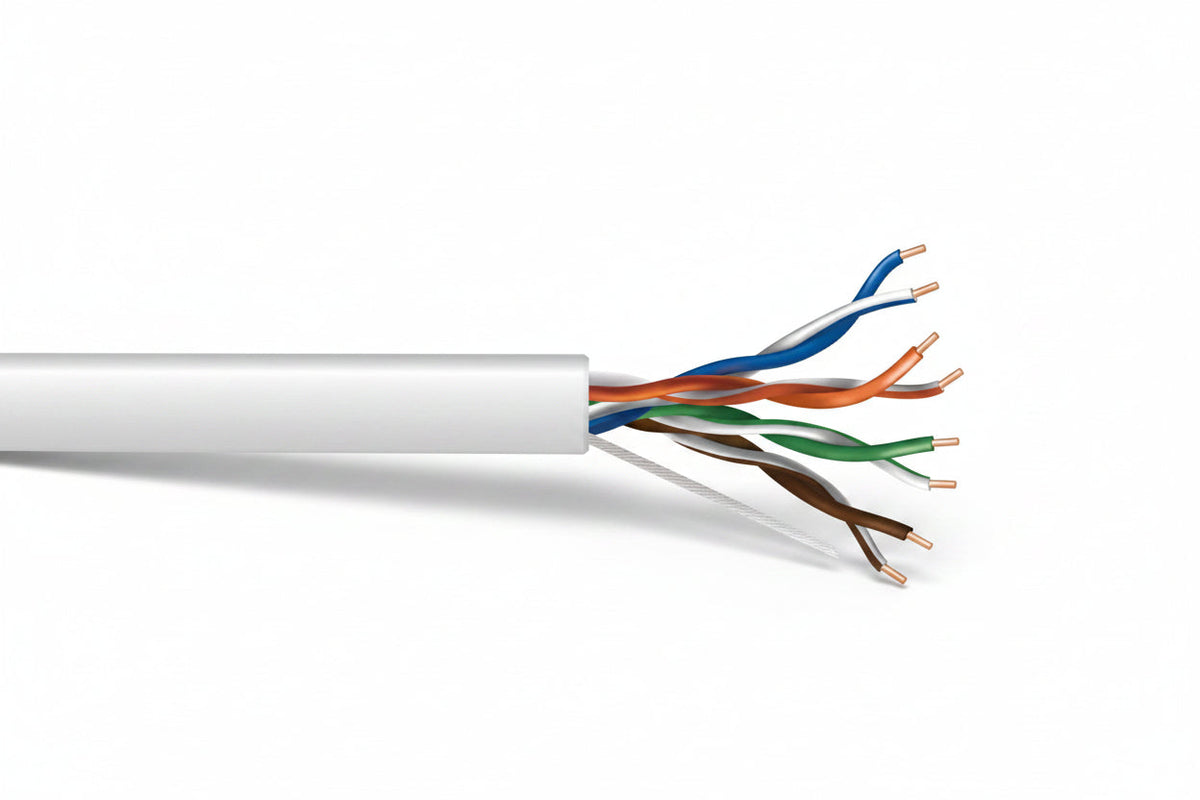

Genesis 50785501 24/4-Pair Cat 5e Unshielded (U/UTP) Networking Cable, Riser, CMR, 500' (152.4 m) Pull Box, White

The Genesis 50785501 is a 24 AWG, 4-pair Cat 5e unshielded (U/UTP) networking cable in a 500' (152.4 m) pull box, white, with a riser (CMR) rating. It is built for indoor structured cabling runs where installers need solid bare copper conductors and a straightforward jacket. Countdown length markings and a rip cord make it easier to track footage and strip the jacket during pulls and terminations.

Key features

• Bare copper conductors support good signal transmission and low voltage drop.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• The PVC jacket is sunlight resistant (UV) rated.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50785501

Product Type: Ethernet Cables

Category: Cat 5e

Rating: Riser, CMR

Length and Packaging: 500' (152.4 m) pull box

Color: White

Number of Pairs: 4

Number of Conductors: 8

American Wire Gauge: 24 AWG

Conductor Material: Bare Copper

Solid or Stranded: Solid

Insulation Material: PE

Jacket: PVC

Shielding: No

Armored: No

Impedance: 100 Ohm

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: No

Country of Origin: VN

Installation notes

Pull cable from the box without kinking or exceeding a gentle bend, and keep it away from power wiring to limit interference. Use the countdown markings to measure each run before cutting, and terminate with connectors and jacks matched to Cat 5e solid conductors.
