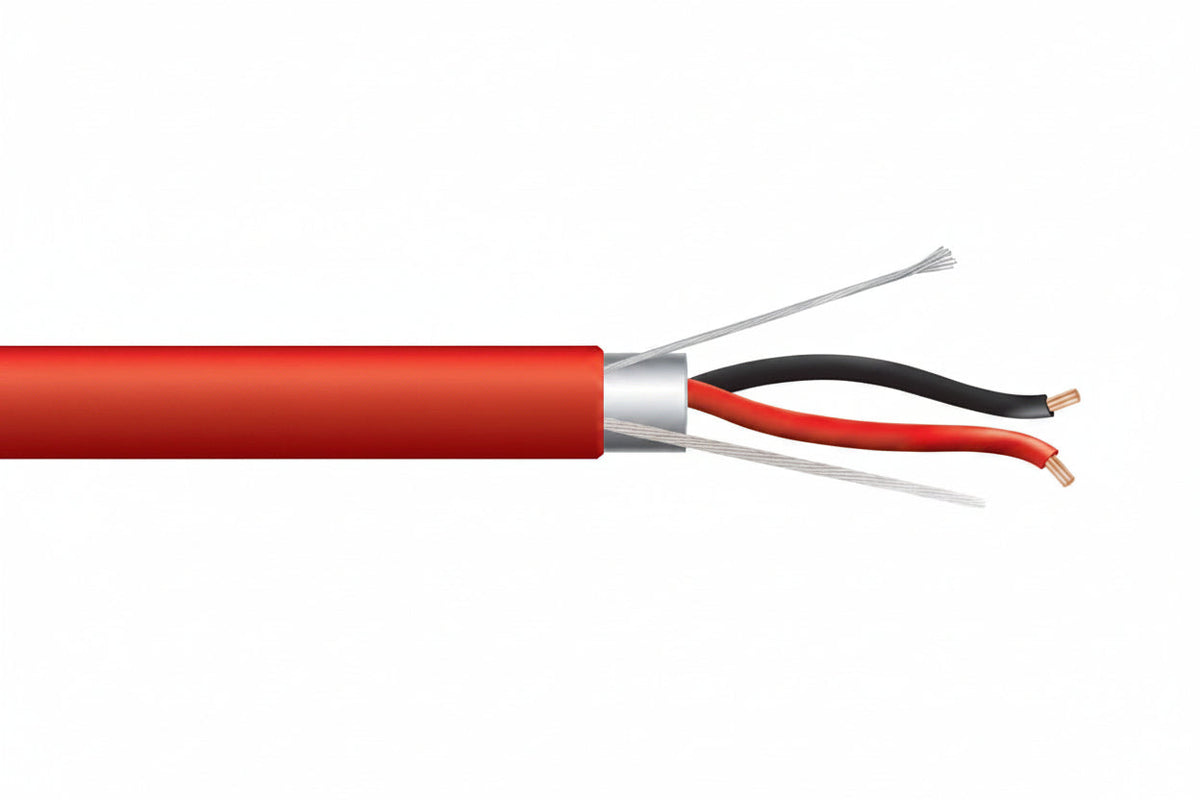

Genesis 46121004 14/2 Stranded Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red

The Genesis 46121004 is a 14 AWG, 2-conductor stranded shielded fire alarm cable on a 1000' (304.8 m) reel in red. It is plenum-rated (FPLP) for indoor fire alarm system wiring, so it suits installers and businesses running dependable fire alarm circuits. A foil shield over all conductors, a rip cord for jacket removal and countdown length markings make it practical to work with on larger runs.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings let you track how much cable you have used and how much remains.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 46121004

Product type: Fire Alarm Cable

Rating: Plenum, FPLP

Length/packaging: 1000' (304.8 m) reel

Color: Red

Gauge: 14 AWG

Conductors: 2 (1 pair)

Construction: Stranded

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: Yes, foil shield

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 38.90 lb

Installation notes

Keep the shield continuous and terminate it properly according to the panel and device instructions. Pull the cable without exceeding its bend limits, and use the countdown markings to plan each run and cut to length.
