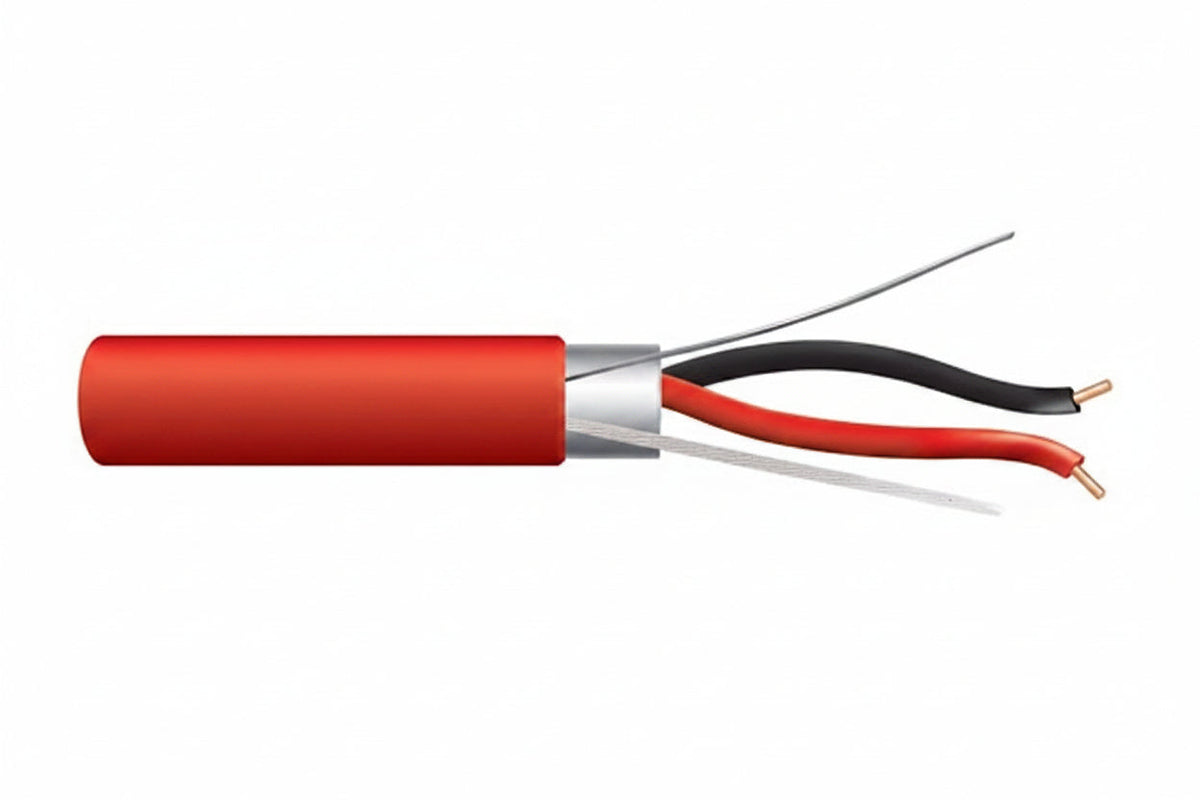

Genesis 46061104 16/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red

The Genesis 46061104 is a 16 AWG, 2-conductor solid shielded fire alarm cable with a plenum (FPLP) rating, supplied as a 1000' (304.8 m) pull box in red. It is built for indoor fire alarm wiring where a plenum-rated cable is needed. The bare copper conductors, overall foil shield and rip cord make it a practical choice for installers pulling long runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 46061104

Product type: Fire alarm cable

Rating: Plenum, FPLP

Length and packaging: 1000' (304.8 m) pull box

Color: Red

Size: 16/2 (16 AWG)

Conductors: 2 (1 pair)

Conductor type: Solid bare copper

Insulation: LS-PVC

Shielding: Yes, foil

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 27.40 lb

Installation notes

Pull the cable from the box using the countdown markings to plan each run and avoid running short. Follow the manufacturer's and local code requirements for shield and drain wire termination, and avoid sharp bends or excessive pulling tension on the cable.
