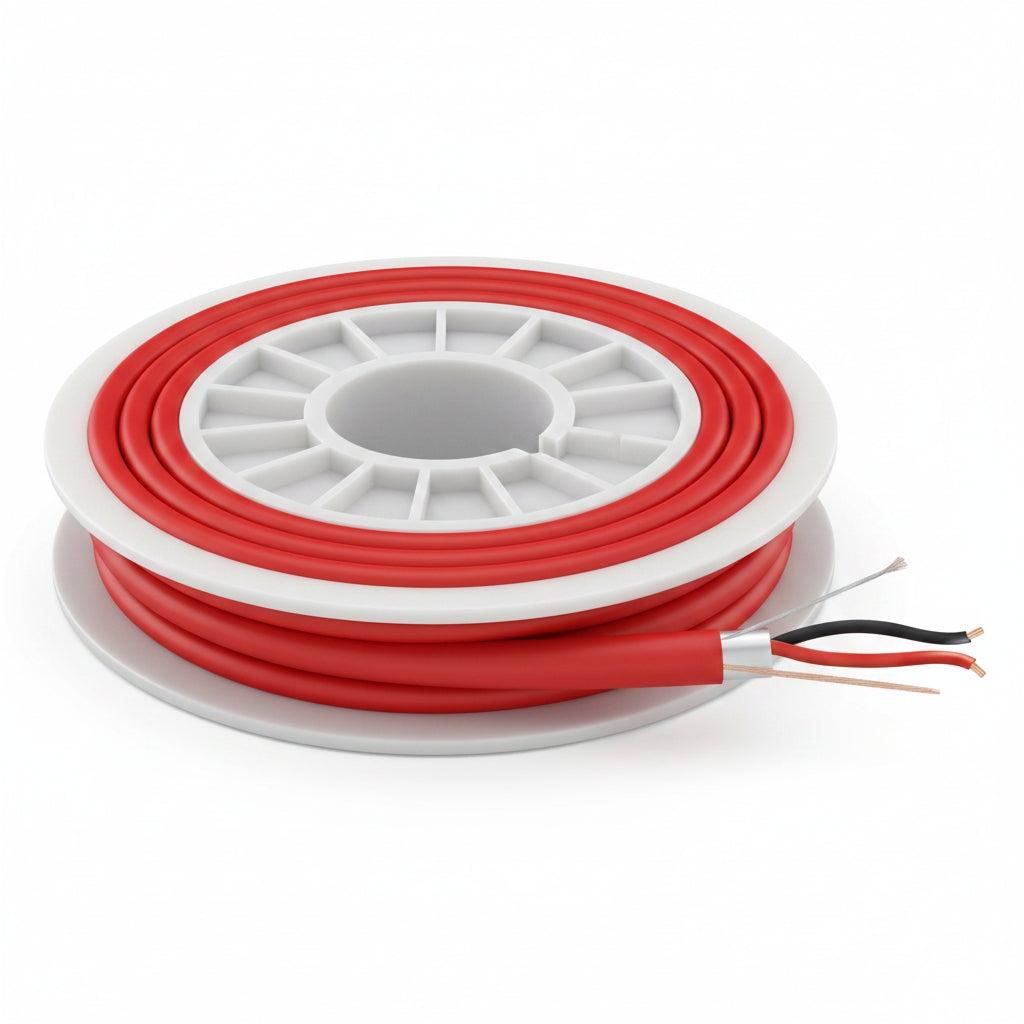

Genesis 45221004 14/2 Stranded Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red

The Genesis 45221004 is a 14/2 stranded, unshielded fire alarm cable with a plenum (FPLP) rating, supplied on a 1000' (304.8 m) reel in red. It is built for fire alarm system wiring inside buildings, and it suits installers who need a plenum-rated run of 14 AWG two-conductor cable. The bare copper conductors and countdown length markings make it easy to work with on longer pulls.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45221004

Type: Fire alarm cable

Rating: Plenum, FPLP

Size: 14/2 (14 AWG)

Conductors: 2 (1 pair)

Conductor material: Bare copper

Construction: Stranded

Insulation: LS-PVC

Shielding: No

Armored: No

Color: Red

Length and packaging: 1000' (304.8 m) reel

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environment: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 36.30 lb

Installation notes

Use the rip cord to open the jacket cleanly, and use the countdown markings to plan your cut lengths before pulling. Because the cable is unshielded, keep it routed with fire alarm circuit practices in mind and follow local code and the panel manufacturer's wiring requirements.
