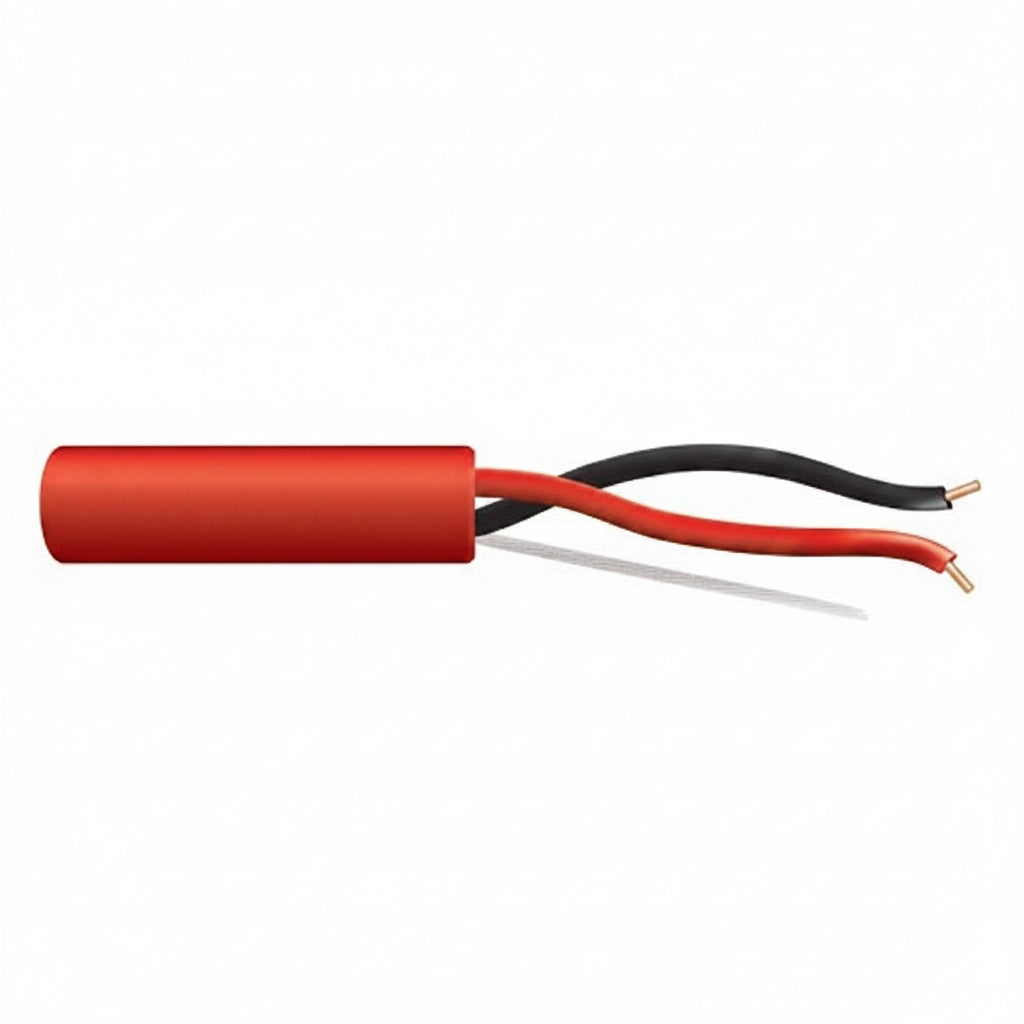

Genesis 45151004 12/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red

The Genesis 45151004 is a 1000' (304.8 m) reel of red 12/2 solid unshielded fire alarm cable with a plenum (FPLP) rating. It carries power and signaling for indoor fire alarm circuits, and it suits installers who need a 12 AWG run with low voltage drop. The bare copper conductors, low-smoke PVC insulation and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and keep voltage drop low.
• Low-smoke PVC insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45151004

Product type: Fire Alarm Cable

Construction: 12/2, solid

American wire gauge: 12 AWG

Number of conductors: 2

Number of pairs: 1

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, FPLP

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Color: Red

Indoor/Outdoor: Indoor

Packaging: 1000' (304.8 m) reel

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 54.00 lb

Installation notes

Use the rip cord to open the jacket cleanly at terminations, and watch the countdown markings so you cut runs to length without waste. Because this is solid-conductor cable, avoid tight bends and repeated flexing, and keep it supported along its route.
