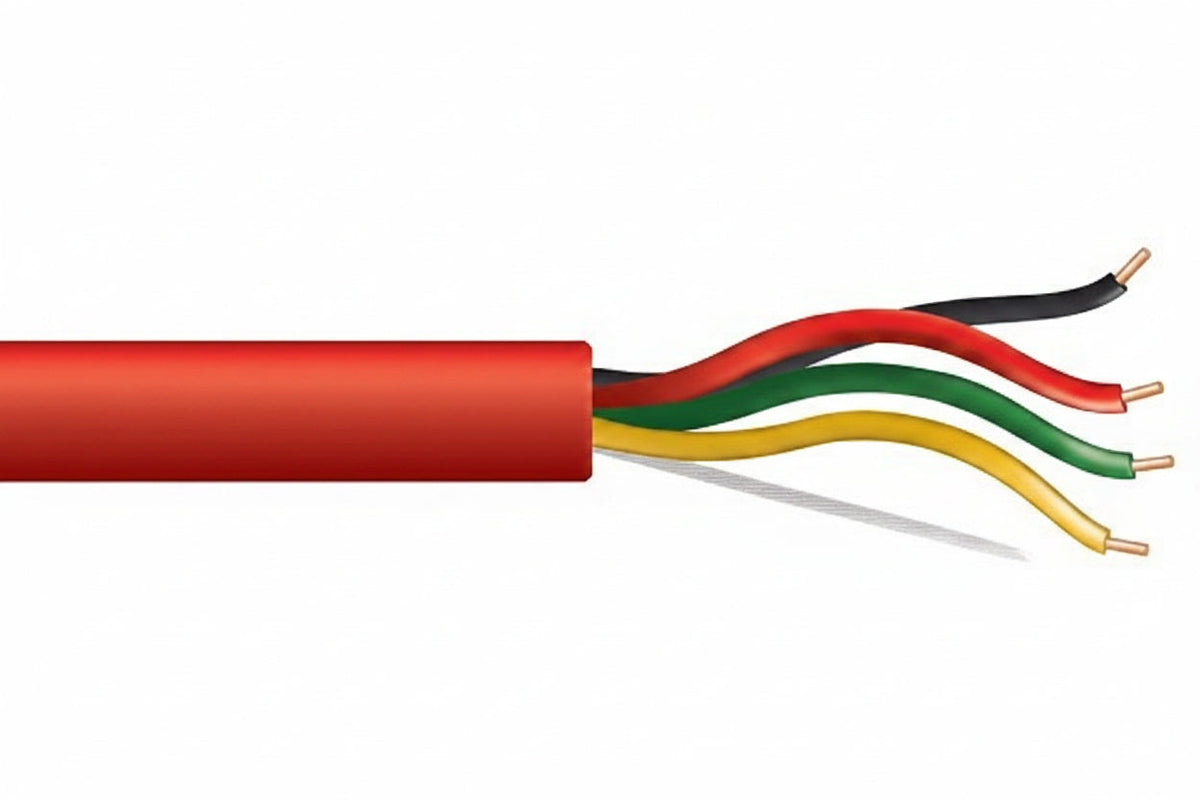

Genesis 45145004 14/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Reel, Red

The Genesis 45145004 is a 14/4 solid unshielded fire alarm cable with a plenum (FPLP) rating, supplied on a 500' (152.4 m) reel in red. It is built for fire alarm system wiring inside buildings, and suits installers and contractors who need a plenum-rated run with four solid bare copper conductors. Countdown length markings and a rip cord make it easier to track usage and strip the jacket on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much is left.
• Rated for 300 volts and for temperatures from -20 °C to 75 °C.
• REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 45145004

Product type: Fire alarm cable

Size: 14/4 (14 AWG, 4 conductors)

Conductor material: Bare copper

Solid or stranded: Solid

Insulation: Low-smoke PVC (LS-PVC)

Rating: Plenum, FPLP

Shielding: No

Armored: No

Color: Red

Packaging: 500' (152.4 m) reel

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental compliance: RoHS, REACH

TAA compliant: Yes

Country of origin: US

Weight: 32.60 lb

Installation notes

This cable is for indoor use only, so keep it out of outdoor runs. Use the countdown markings to plan pulls and cut lengths, and follow local code and the fire alarm panel manufacturer's wiring requirements for routing and terminations.
