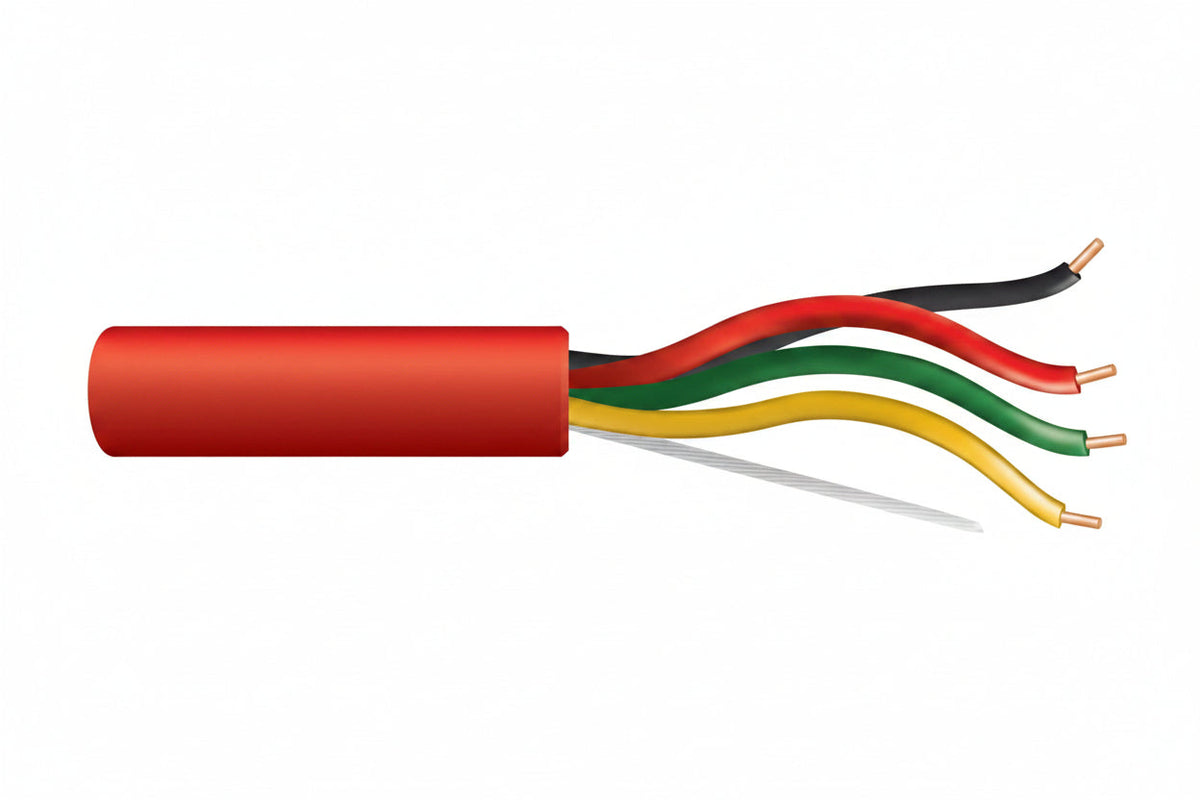

Genesis 45125004 16/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Reel, Red

The Genesis 45125004 is a 16/4 solid, unshielded fire alarm cable with a plenum (FPLP) rating, supplied on a 500' (152.4 m) reel in red. It is built for fire alarm system wiring in indoor spaces, and it suits installers and contractors who need a plenum-rated, TAA compliant cable made in the US. Bare copper conductors, a rip cord and countdown length markings make it practical to pull and strip on the job.

Key features

• Four solid 16 AWG bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation covers the conductors.
• A built-in rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45125004

Product type: Fire Alarm Cable

Construction: 16/4, solid

Conductor material: Bare Copper

Number of conductors: 4

American wire gauge: 16 AWG

Insulation material: LS-PVC

Rating: Plenum, FPLP

Shielding: No

Armored: No

Color: Red

Packaging: 500' (152.4 m) reel

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 22.10 lb

Installation notes

This is an indoor cable, so keep the whole run inside the building and follow local code and the fire alarm panel manufacturer's wiring requirements. Use the countdown markings to plan each run and avoid running short, and use the rip cord to open the jacket cleanly at terminations.
