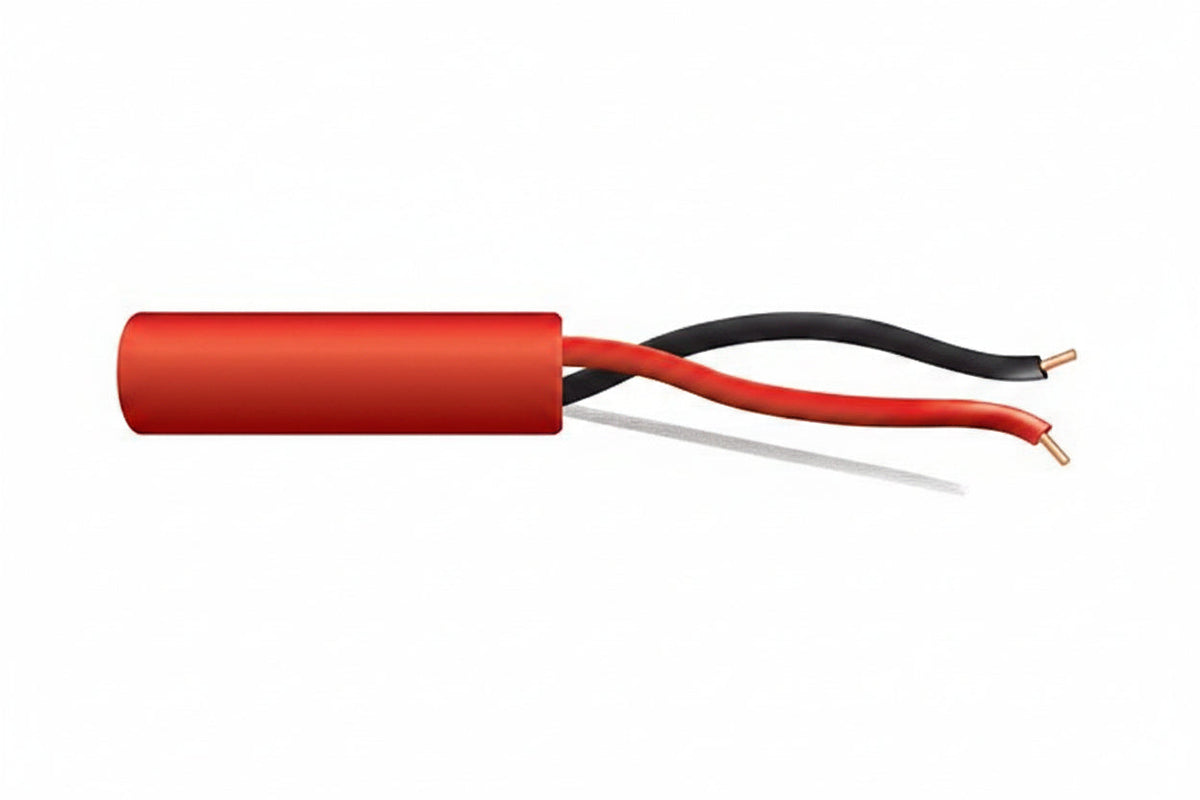

Genesis 45111104 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red

The Genesis 45111104 is a 16 AWG, 2-conductor solid bare copper fire alarm cable with a plenum (FPLP) rating, supplied in a 1000' (304.8 m) pull box in red. It is unshielded cable for indoor fire alarm and security wiring, suited to installers who need plenum-rated cable for air-handling spaces. The countdown length markings and built-in rip cord make it easier to measure and strip during a long run.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings help you track cable used and cable remaining.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 45111104

Product type: Fire alarm cable

Gauge: 16 AWG (16/2)

Conductors: 2 (1 pair)

Conductor type: Solid

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, FPLP

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Length and packaging: 1000' (304.8 m) pull box

Color: Red

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 23.10 lb

Installation notes

Pull the cable from the box to avoid kinks and twists, and use the countdown markings to cut runs to length. Keep the cable within its bend and pulling limits, and follow local code and the fire alarm panel manufacturer's wiring requirements for circuit routing and separation.
