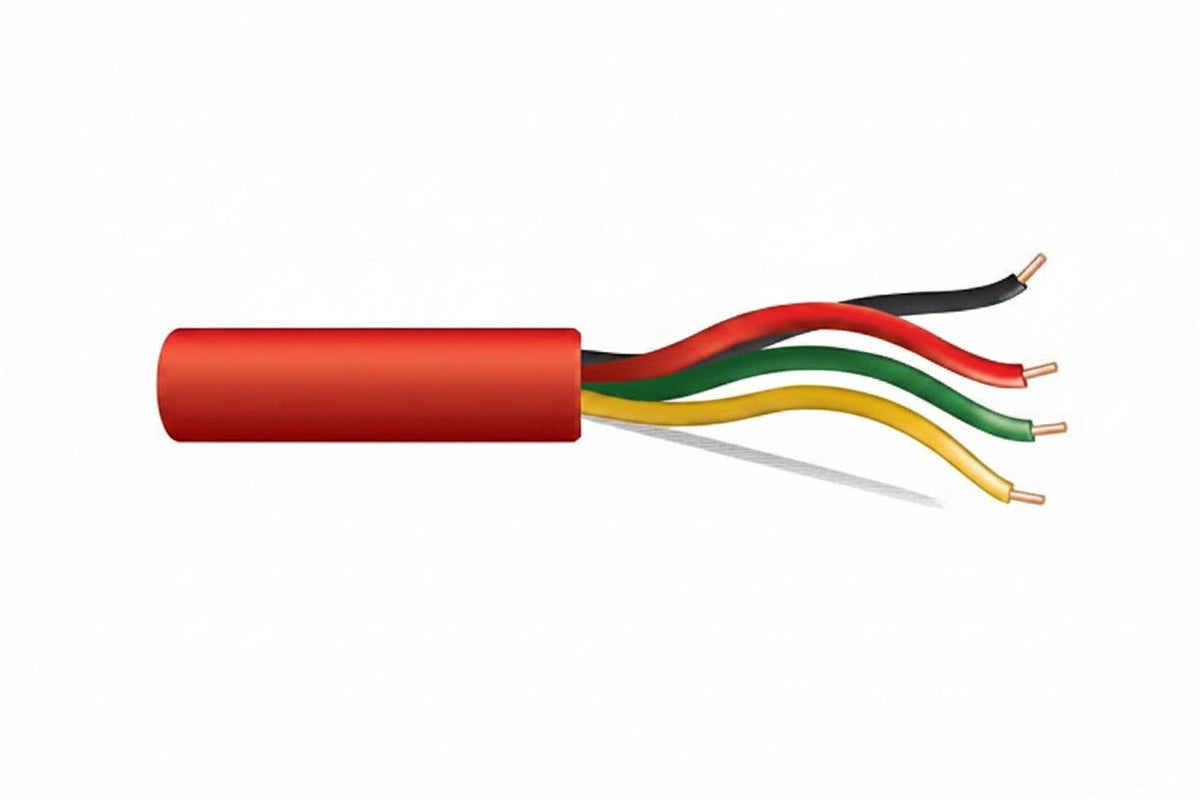

Genesis 45075504 18/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red

The Genesis 45075504 is an 18 AWG, 4-conductor solid unshielded fire alarm cable with a plenum (FPLP) jacket, supplied in a 500' (152.4 m) pull box in red. It handles fire alarm system wiring for installers and contractors running cable indoors. Bare copper conductors, low-smoke PVC insulation and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 45075504

Product type: Fire Alarm Cable

Rating: Plenum, FPLP

Length and packaging: 500' (152.4 m) pull box

Color: Red

Gauge and conductors: 18 AWG, 4 conductors (18/4)

Conductor type: Solid

Conductor material: Bare copper

Insulation: LS-PVC

Shielding: No (unshielded)

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 13.40 lb

Installation notes

This cable is for indoor use only, so keep it inside the building and out of exposed outdoor runs. Pull it gently from the box to avoid kinks, and use the rip cord to open the jacket cleanly at termination points.
