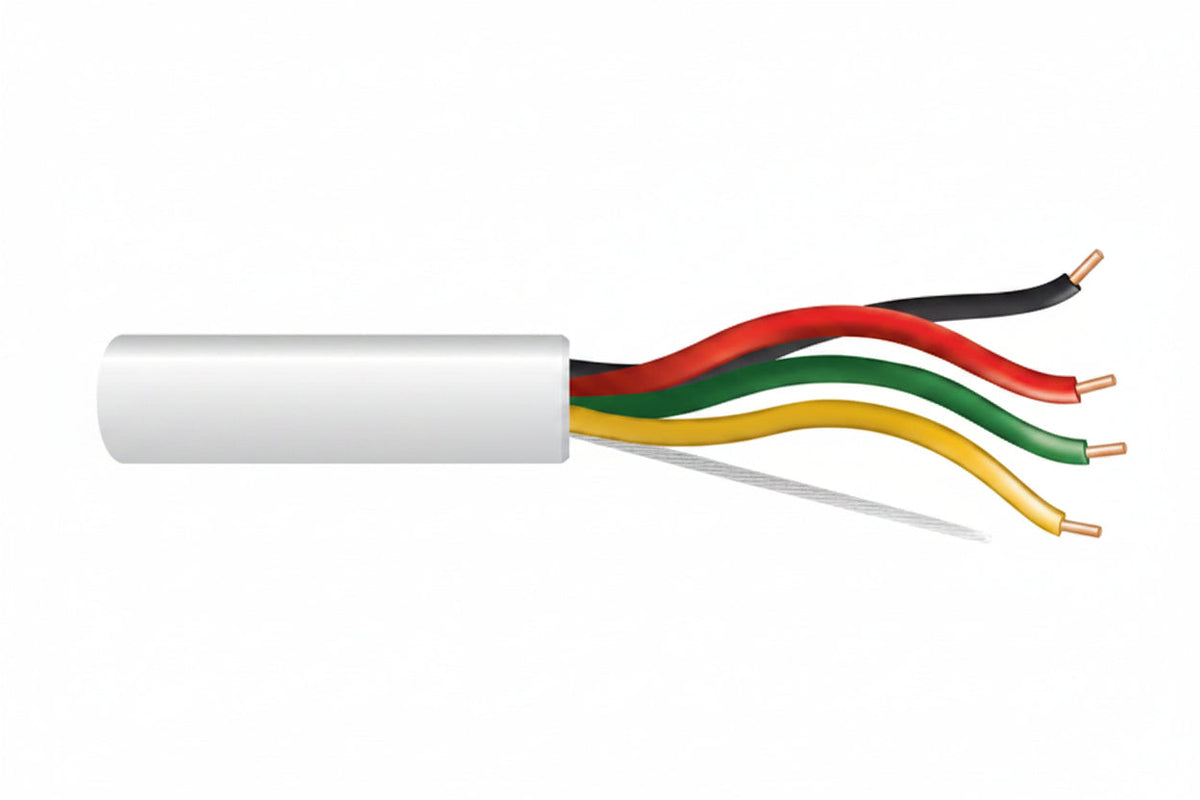

Genesis 45071101 18/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, White

The Genesis 45071101 is an 18 AWG, 4-conductor solid, unshielded fire alarm cable with a plenum (FPLP) jacket, supplied as a 1000' (304.8 m) pull box in white. It suits installers wiring fire alarm systems indoors, including plenum spaces. Bare copper conductors, a rip cord for jacket removal and countdown length markings make it easy to work with on longer runs.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation covers each conductor.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 45071101

Product type: Fire Alarm Cable

Rating: Plenum, FPLP

Length and packaging: 1000' (304.8 m) pull box

Color: White

Number of conductors: 4

American Wire Gauge: 18 AWG

Solid or stranded: Solid

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 26.70 lb

Installation notes

This is an indoor-only cable, so keep it out of outdoor runs. Use the countdown markings to plan each pull and cut to length, and use the rip cord to open the jacket cleanly without nicking the conductors.
